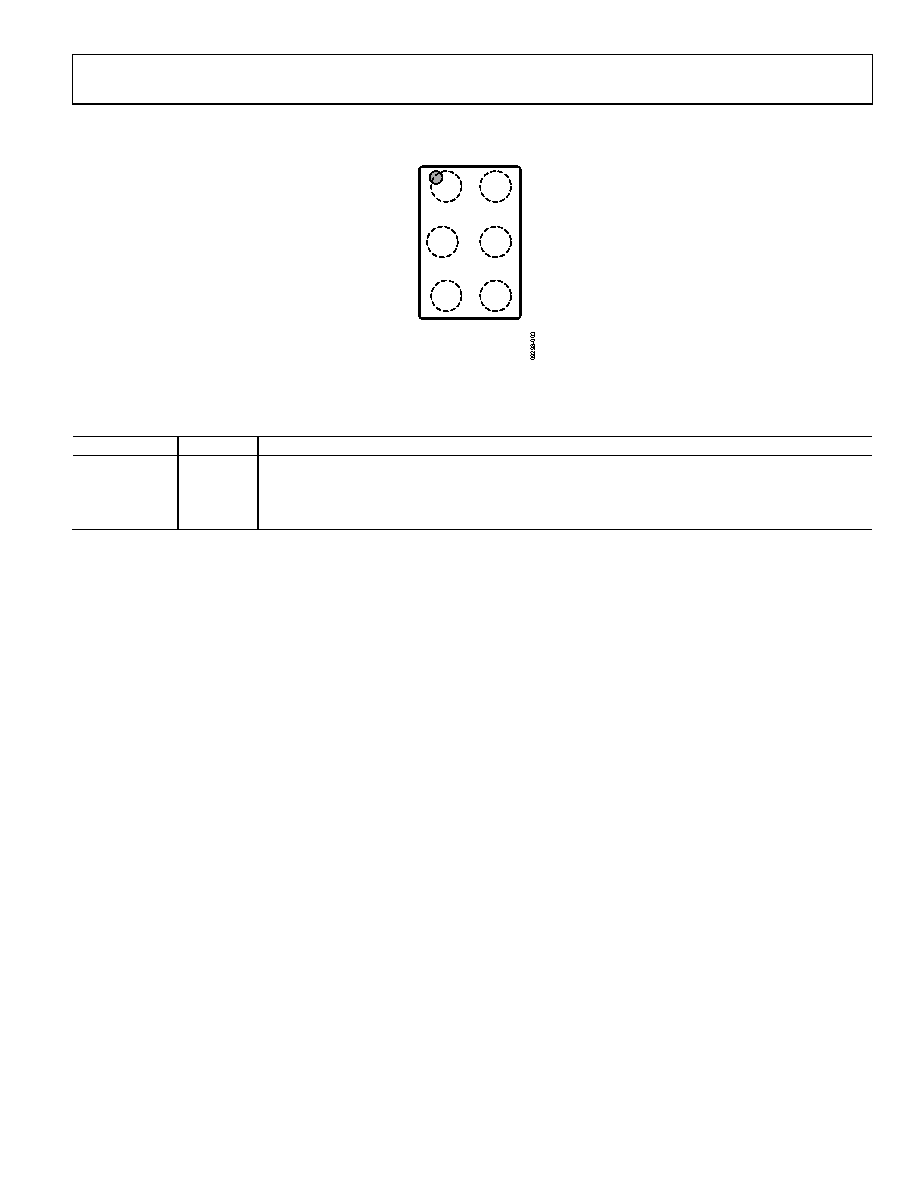

background image
ADP197
Rev. 0 | Page 5 of 16
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
VIN
VOUT
12
VIN
A
B
VOUT
EN
C
GND
TOP VIEW
(Not to Scale)
ADP197
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
A1, B1
VIN
Input Voltage.
A2, B2
VOUT
Output Voltage.
C1
EN
Enable Input. Drive EN high to turn on the switch and drive EN low to turn off the switch.
C2
GND
Ground.
