BAV20WS Folha de dados(PDF) 2 Page - EIC discrete Semiconductors

Nome de Peças BAV20WS
Descrição Electrónicos  SMALL SIGNAL DIODES
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  EIC [EIC discrete Semiconductors]
Página de início  http://www.eicsemi.com
Logo EIC - EIC discrete Semiconductors

BAV20WS Folha de dados(HTML) 2 Page - EIC discrete Semiconductors

  BAV20WS Datasheet HTML 1Page - EIC discrete Semiconductors BAV20WS Datasheet HTML 2Page - EIC discrete Semiconductors
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image

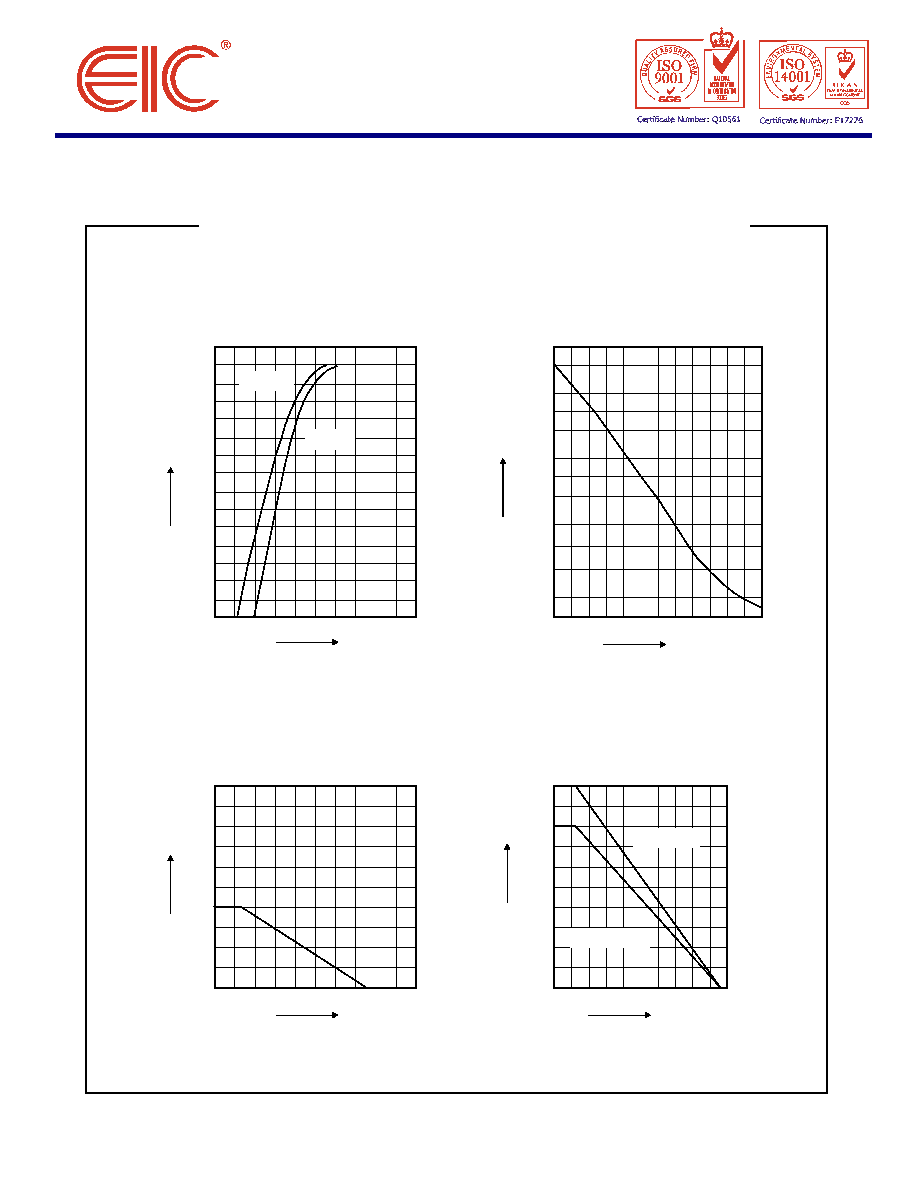

RATINGS AND CHARACTERISTIC CURVES ( BAV19WS ~ BAV21WS)
Forward charecteristics
Dynamic forward resistance
versus forward current
Admissible power dissipation
Admissible forward current
versus ambient temperture
versus ambient temperture
For conditions, see footnote in table
Valid provided that electrodes are kept
"Absolute Maximum Ratings"
at ambient temperratue
Page 2 of 2
Rev. 03 : March 25, 2005
