DC and AC parameters
M24M01-R, M24M01-W, M24M01-HR
26/37
Doc ID 12943 Rev 7

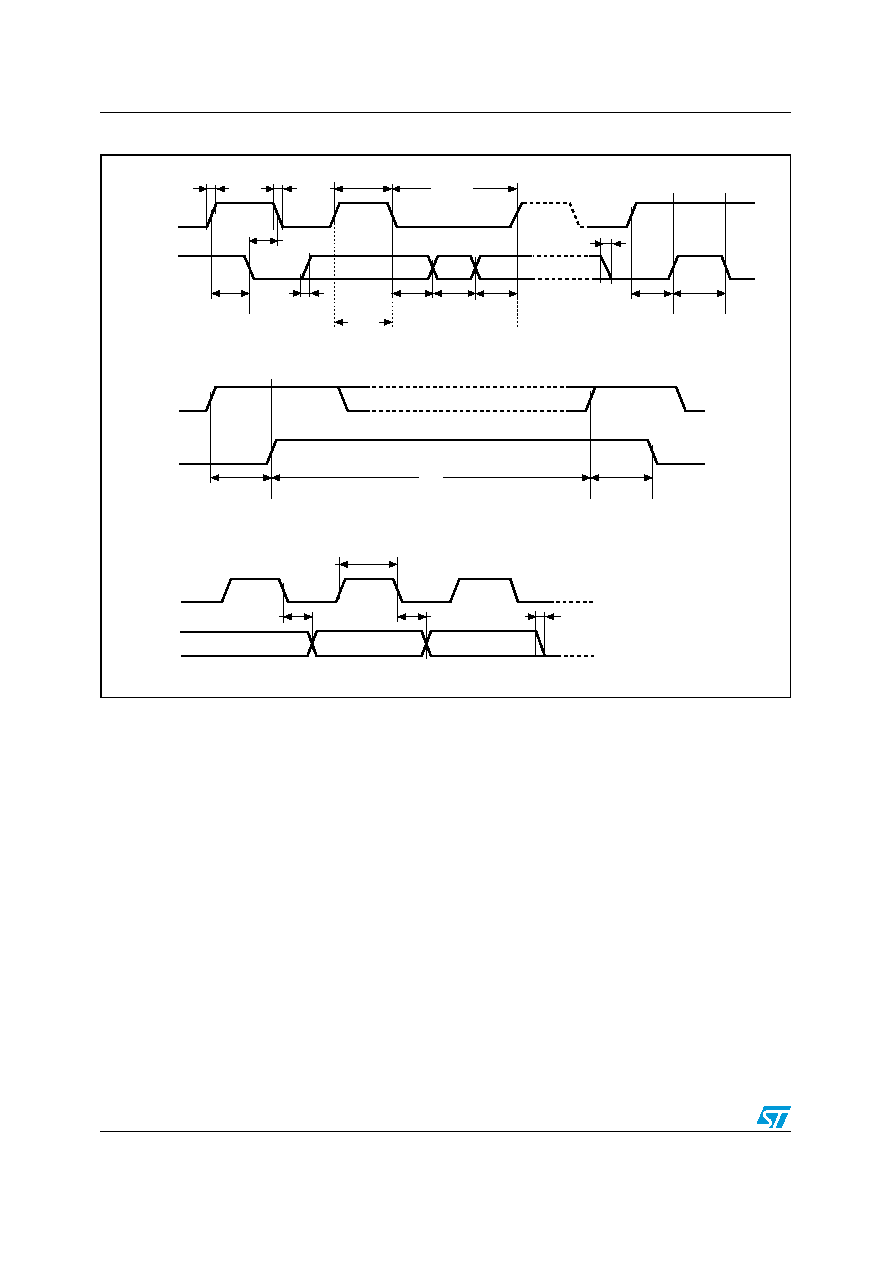

Figure 13.
AC waveforms
SCL
SDA In
SCL
SDA Out
SCL
SDA In
tCHCL
tDLCL
tCHDL
Start
condition
tCLCH
tDXCH
tCLDX
SDA
Input
SDA
Change
tCHDH
tDHDL
Stop
condition
Data valid
tCLQV
tCLQX
tCHDH
Stop
condition
tCHDL
Start
condition
Write cycle
tW
AI00795e
Start
condition
tCHCL
tXH1XH2
tXH1XH2
tXL1XL2
tXL1XL2
Data valid
tQL1QL2
