PACDN042/43/44/45/46
Rev. 4 | Page 3 of 24 | www.onsemi.com

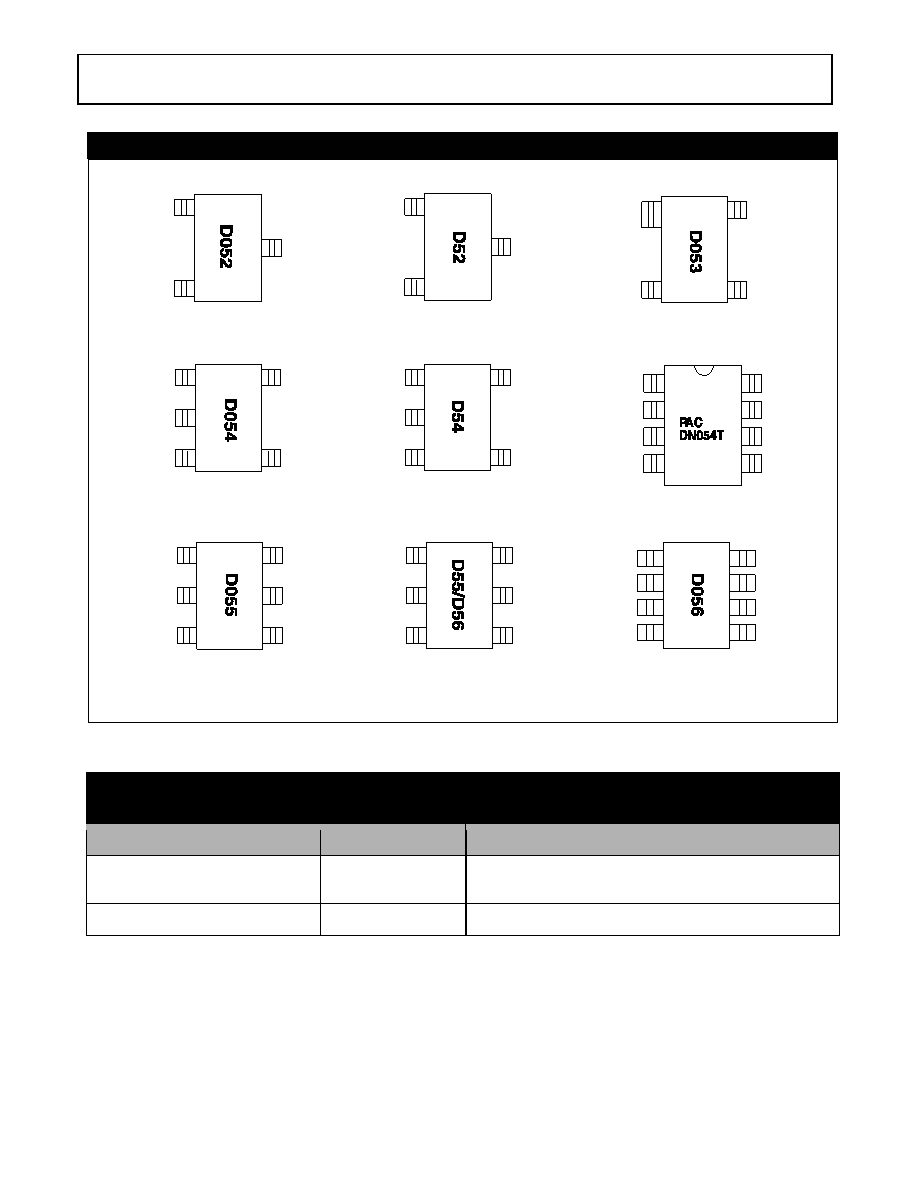

Note: SOT23, SC70, SOT143, TSSOP, and MSOP packages
3-pin SOT23
TVS
TVS
GND
1
2
3
To p View
3-pin SC70
TVS
TVS
GND
1
2
3
To p View
4-pin SOT143
GND
TVS
TVS
TVS
1
4
23
5-pin SOT23
TVS
GND
TVS
TVS
TVS
1
2
5
3
4
To p View
5-pin SC70
TVS
GND
TVS
TVS
TVS
1
2
5
34
To p View
8-pin TSSOP
GND
TVS
GND
TVS
GND
TVS
GND
TVS
6-pin SC70
TVS
GND
TVS
TVS
TVS
TVS
1
2
6
5
34
6-pin SOT23
TVS
GND
TVS
TVS
TVS
TVS
1
2
6
5
34
8-pin MSOP
1
2
3
4
8
7
6
5
GND
TVS
TVS
TVS
GND
TVS
TVS
TVS
To p View
To p View
Top View
To p View
To p View
may differ in size. These drawings are not to scale.
CAT HODE
CAT HODE
CATHODE
CATHODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CAT HODE
CATHODE
CATHODE
CATHODE
CATHODE
CAT HODE
CAT HODE
CAT HODE
CATHODE
CATHODE
CATHODE
CAT HODE
CAT HODE
CAT HODE
CATHODE
CATHODE
CAT HODE
CAT HODE
CATHODE
CATHODE
CAT HODE
CATHODE
CATHODE
1
2
3
4
5
7
8
6
8
PIN DESCRIPTIONS
PINS
NAME
DESCRIPTION
(Refer to package outline drawings)
TVS Cathode
The cathode of the respective TVS diode, which should be
connected to the node requiring transient voltage protection.
(Refer to package outline drawings)
GND
The anode of the TVS diodes.
