UPCONVERSION

Measured using typical upconversion circuit schematic with high-side LO and 340 MHz RF input, unless otherwise noted.

OUTPUT FREQUENCY (MHz)

–5

–4

–3

–2

–1

710

810

910

1010

1110

1210

1310

1410

1510

1610

+25°C

–40°C

+85°C

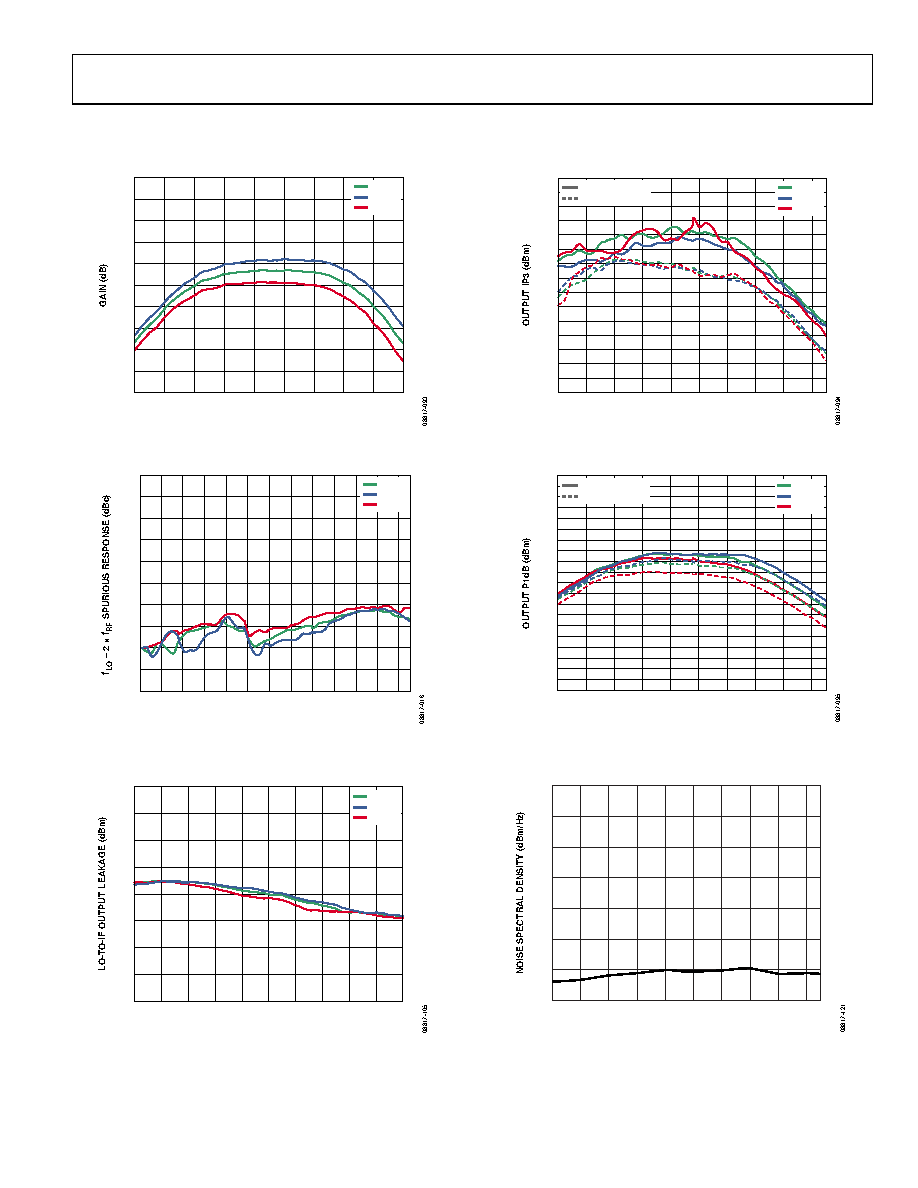

Figure 16. Conversion Gain vs. Output Frequency

–100

–90

–80

–70

–60

–50

–40

–30

–20

–10

1050 1150 1250 1350 1450 1550 1650 1750 1850 1950 2050 2150 2250

LO FREQUENCY (MHz)

+25°C

–40°C

+85°C

Figure 17. fLO − 2 × fRF Spurious Response vs.

LO Frequency (Relative to IF Output Power)

–80

–70

–60

–50

–40

–30

–20

–10

1050 1150 1250 1350 1450 1550 1650 1750 1850 1950 2050

LO FREQUENCY (MHz)

+25°C

–40°C

+85°C

Figure 18. LO-to-IF Output Leakage vs. Frequency

710

810

910

1010

1110

1210

1310

1410

1510

1610

OUTPUT FREQUENCY (MHz)

+25°C

–40°C

+85°C

IP3SET = 3.2V

IP3SET = OPEN

Figure 19. Output IP3 vs. Output Frequency

710

810

910

1010

1110

1210

1310

1410

1510

1610

OUTPUT FREQUENCY (MHz)

+25°C

–40°C

+85°C

IP3SET = 3.2V

IP3SET = OPEN

Figure 20. Output P1dB vs. Output Frequency

–170

–160

–150

–140

–130

–120

–110

–100

710

810

910

1010

1110

1210

1310

1410

1510

1610

OUTPUT FREQUENCY (MHz)

Figure 21. Output Noise Spectral Density vs. Output Frequency
