ADP2114

Rev. 0 | Page 13 of 40

SUPPLY CURRENT

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

2.5

5.5

5.0

4.5

4.0

3.5

3.0

VDD VOLTAGE (V)

PULSE SKIP

FORCED PWM

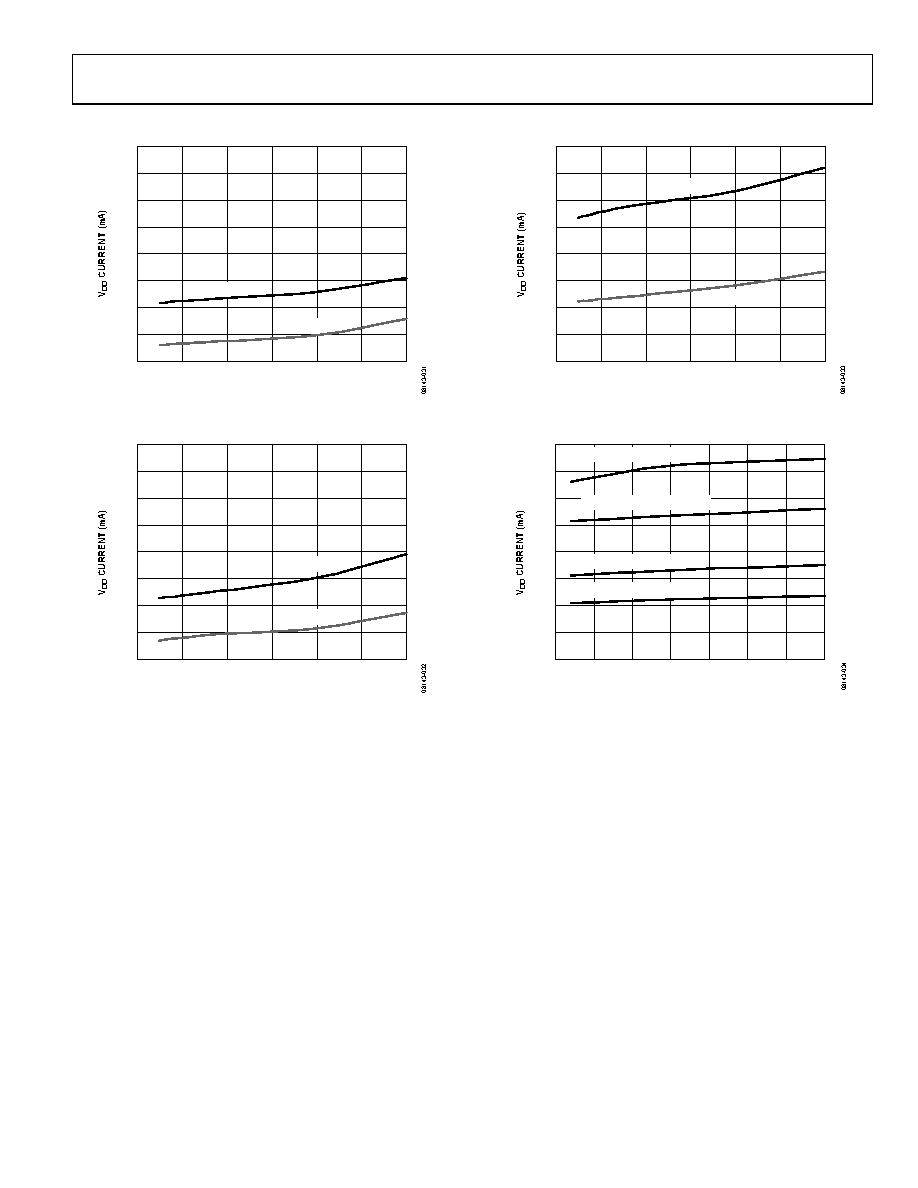

Figure 31. VDD Supply Current, No Load,

Channel 1: VOUT = 1.5 V, Channel 2 Off, fSW = 1.2 MHz

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

2.5

5.5

5.0

4.5

4.0

3.5

3.0

VDD VOLTAGE (V)

PULSE SKIP

FORCED PWM

Figure 32. VDD Supply Current, No Load,

Channel 2: VOUT = 0.8 V, Channel 1 Off, fSW = 1.2 MHz

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

2.5

5.5

5.0

4.5

4.0

3.5

3.0

VDD VOLTAGE (V)

PULSE SKIP

FORCED PWM

Figure 33. VDD Supply Current, No Load,

Channel 1: VOUT = 1.5 V, Channel 2: VOUT = 0.8 V, fSW = 1.2 MHz

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

–50

125

100

–25

TEMPERATURE (°C)

VDD = 2.75V, PULSE SKIP

VDD = 5.5V PULSE SKIP

VDD = 2.75V, FORCED PWM

VDD = 5.5V, FORCED PWM

Figure 34. VDD Supply Current vs. Temperature,

Channel 1: VOUT = 1.5 V, Channel 2: VOUT = 0.8 V, fSW = 1.2 MHz
