ADL5601

Rev. 0 | Page 13 of 16

EVALUATION BOARD

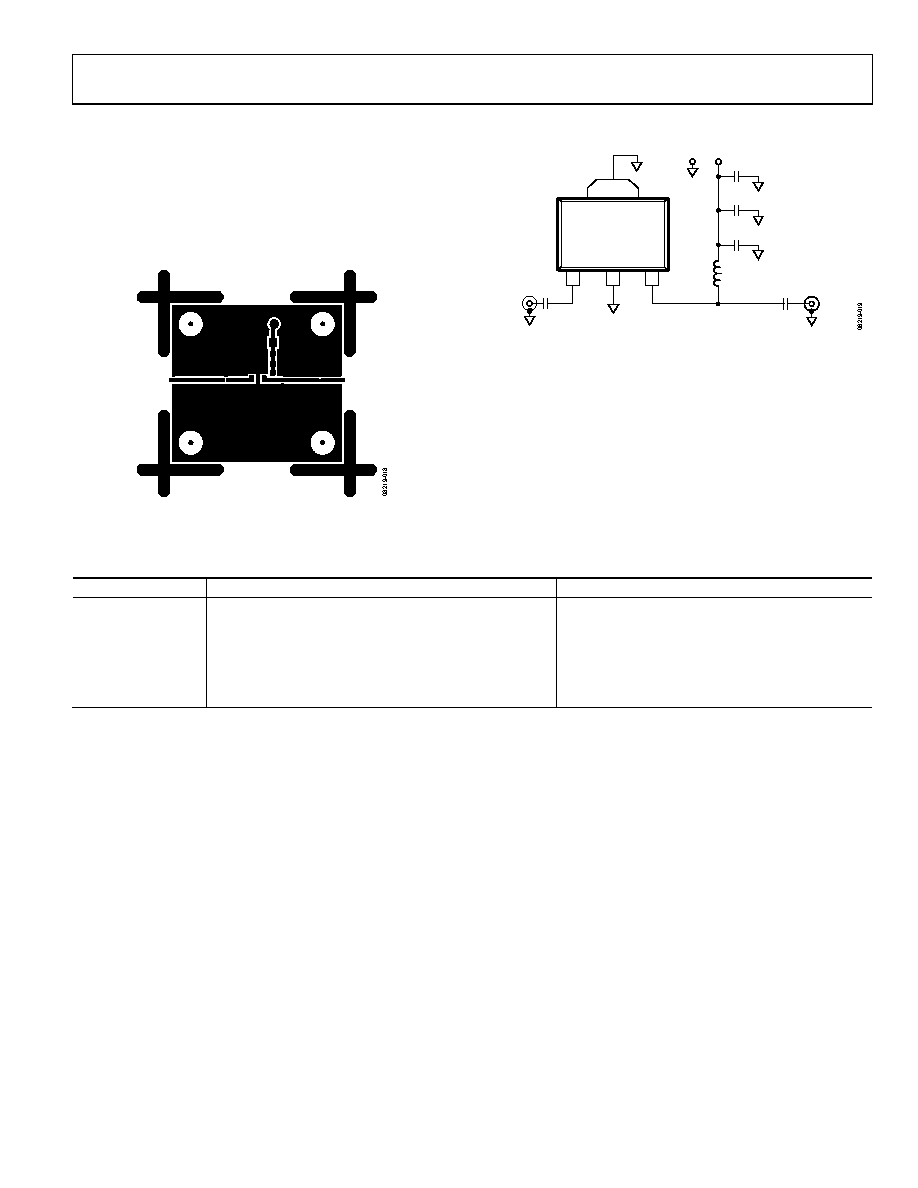

Figure 18 shows the evaluation board layout, and Figure 19

shows the schematic for the ADL5601 evaluation board. The

board is powered by a single 5 V supply.

The components used on the board are listed in Table 6.

Power can be applied to the board through clip-on leads

(VCC and GND).

Figure 18. Evaluation Board Layout (Top)

1µF

1.2nF

68pF

VCC

RFOUT

RFIN

GND

RFOUT

ADL5601

(2)

0.1µF

470nH

0.1µF

GND

Figure 19. Evaluation Board Schematic

Table 6. Evaluation Board Configuration Options

Component

Description

Default Value

C1, C2

AC coupling capacitors

0.1 μF, 0402

DC bias inductor

470 nH, 0603 (Coilcraft 0603LS-NX or equivalent)

VCC and GND

Clip-on terminals for power supply

Power supply decoupling capacitor

68 pF, 0603

Power supply decoupling capacitor

1.2 nF, 0603

Power supply decoupling capacitor

1 μF, 1206
