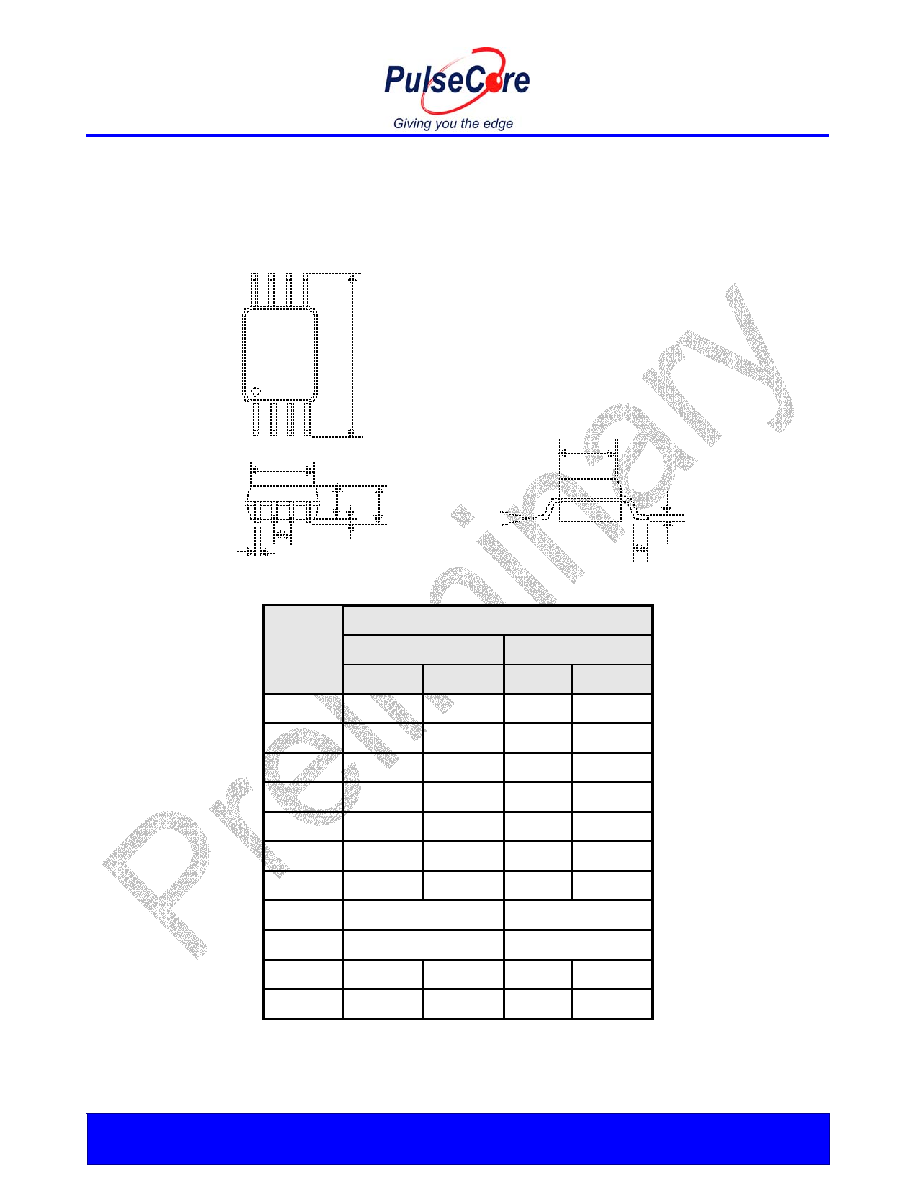

Package Information

8-lead TSSOP (4.40-MM Body)

Dimensions

Inches

Millimeters

Symbol

Min

Max

Min

Max

A

0.043

1.10

A1

0.002

0.006

0.05

0.15

A2

0.033

0.037

0.85

0.95

B

0.008

0.012

0.19

0.30

c

0.004

0.008

0.09

0.20

D

0.114

0.122

2.90

3.10

E

0.169

0.177

4.30

4.50

e

0.026 BSC

0.65 BSC

H

0.252 BSC

6.40 BSC

L

0.020

0.028

0.50

0.70

θ

0°

8°

0°

8°
