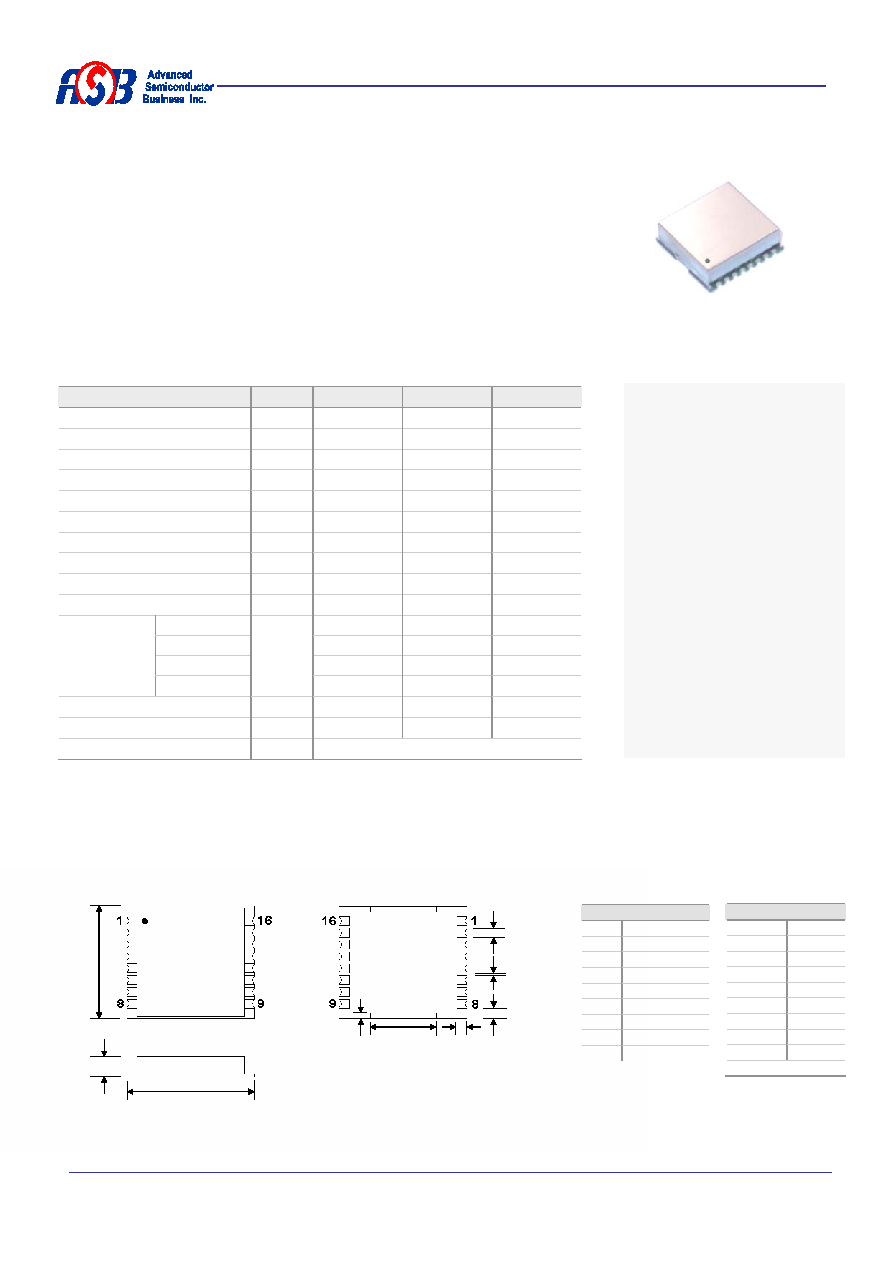

1 / 1 page

1/1

www.asb.co.kr

4/27/2006

Plerow

TM APL0726-R

PLL Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

726.5

Output Power

dBm

+0

+3

+5

Supply Voltage

V

4.75

5.00

Current Consumption

mA

38

80

Channel Step Size

kHz

2nd Harmonics

dBc

-20

Spurious Level

dBc

-75

Lock Time

ms

Reference Frequency

MHz

10

Reference Input Level

dBm

-5

0

5

@ 100 Hz

-72

@ 1 kHz

-85

@ 10 kHz

-105

Phase Noise

(C / N)

@ 100 kHz

dBc/Hz

-120

Output Impedance

Ω

50

Operating Temp. Range

°C

-30

+25

+70

Package Type & Size

mm

SMT, 19.0W

×19.0L×5.8H

1) Measurement conditions are as follows: T = 25

°C, V

CC = 5.0 V, Freq. = 726.5 MHz, 50 ohm system.

Dimension (mm)

A

19.0

B

19.0

C

5.8

D

1.5

E

0.5

F

1.75

G

1.35

H

15.0

I

0.9

Tolerance:

± 0.2

Pin Configuration

1

Ground

2

Ground

3

Ground

4

OSC IN

9

VCC (VCO)

13

RF OUT

15

VCP (PLL)

16

LOCK DETECT

Others

Ground

Features

Specifications

Outline Drawing

· +3 dBm Output Level at 726.5 MHz

· 2nd Harmonic : < -20 dBc

· Spurious Level : < -75 dBc

· Lock Time : < 10ms

· 80 mA Current Consumption

· Strip-line Resonator

A

F

E

D

C

B

H

G

Top View

Side View

Bottom View

I

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
