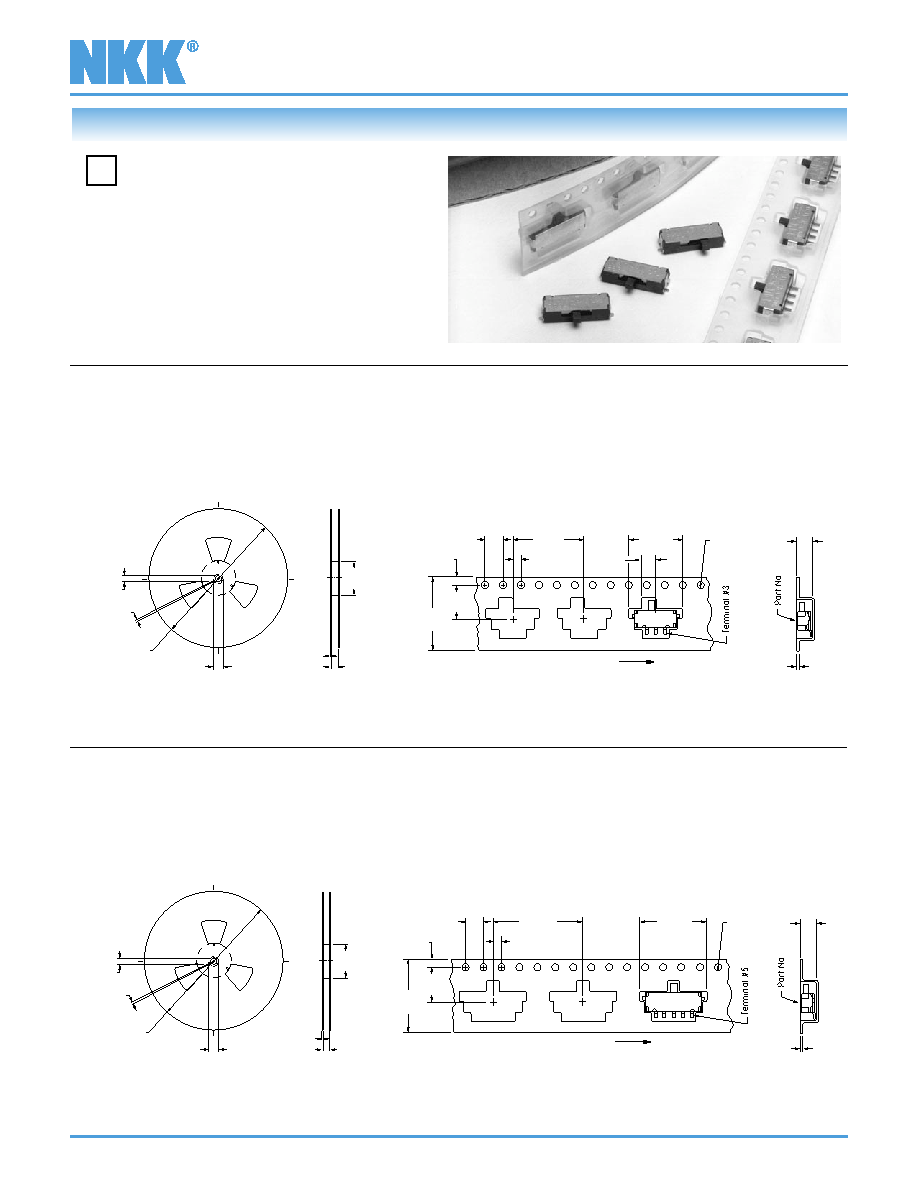

Ultra-Miniature SMT Slides

Series SS3

R

Tape-Reel Packaging for SS312SAH4

Each tape-reel of 530 pockets contains 500 switches.

Minimum Leader Length: 11.97” (304mm)

Minimum Trailer Length: 6.93” (176mm)

Tape Dimensions

Reel Dimensions

Tape-Reel Packaging

Switches must be ordered in 500-piece

increments when tape-reel packaging is

selected.

Tape-reel packaging meets EIA-481-2

Standard.

PACKAGING

Tape-Reel Packaging for SS314MAH4

Each tape-reel of 530 pockets contains 500 switches.

Minimum Leader Length: 14.96” (380mm)

Minimum Trailer Length: 8.66” (220mm)

Tape Dimensions

Reel Dimensions

(13.0) Dia

.512

(2.0) Typ

.079

(21.0) Dia

.827

Overall Dia (330.0)

13.0

(13.0) Dia

.512

(2.0) Typ

.079

(21.0) Dia

.827

Overall Dia (330.0)

13.0

(78.49) Dia

3.090

(2.0)

.079

(16.4)

.646

(78.49) Dia

3.090

(2.0)

.079

(16.4)

.646

(0.5)

.020

(3.4)

.134

(0.5)

.020

(3.4)

.134

(16.0)

.630

(7.5)

.295

(16.0) Typ

.630

(12.0) Typ

.472

(1.75)

.069

(4.0) Typ

.157

(2.0) Typ

.079

(3.0) Typ

.118

(1.5) Dia Typ

.059

Direction of Feed

(20.0) Typ

.787

(14.8) Typ

.583

(16.0)

.630

(7.5)

.295

(1.75)

.069

(4.0) Typ

.157

(2.0) Typ

.079

(1.5) Dia Typ

.059

Direction of Feed
