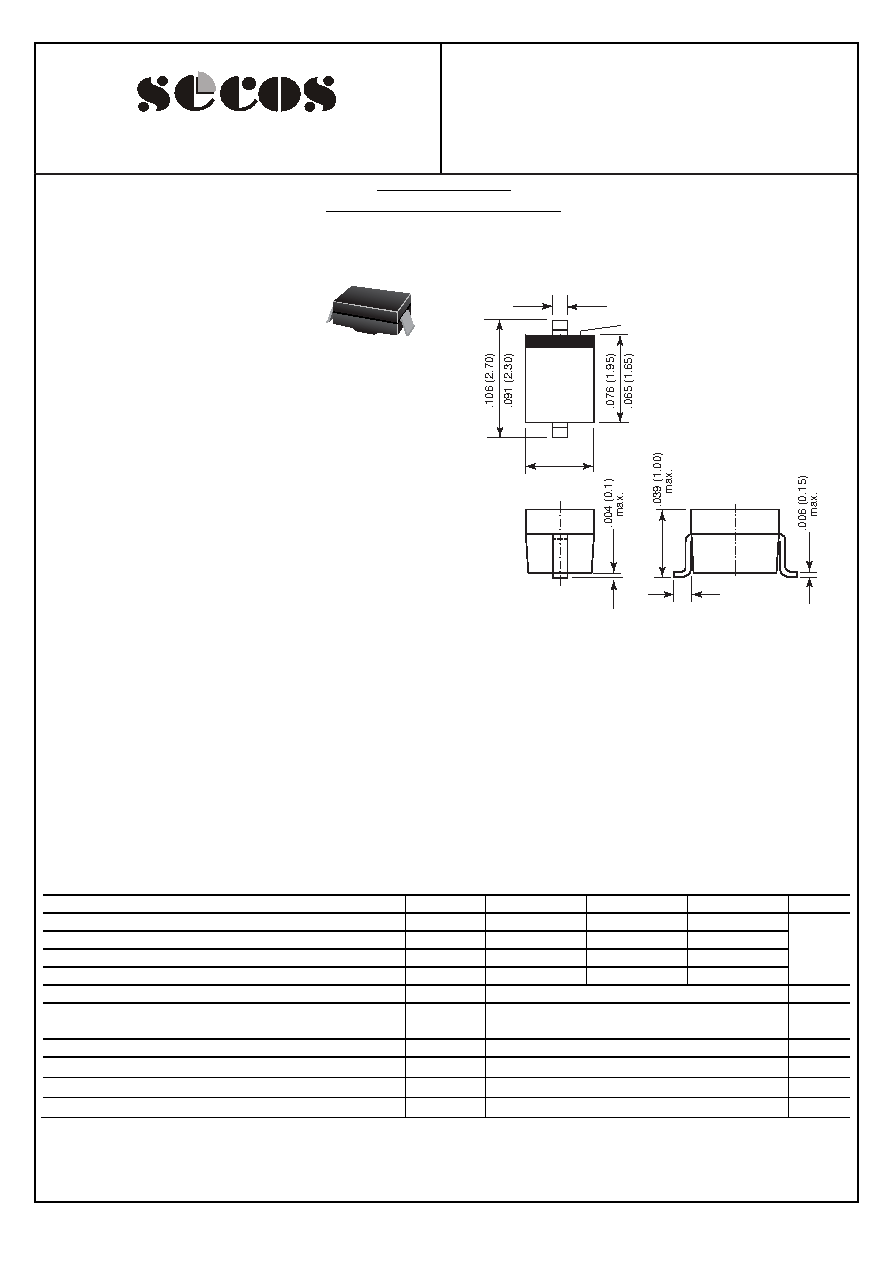

1 / 2 page

Elektronische Baue lemente

SD103AWS THRU SD103CWS

VOLTAGE 20V ~ 40V

0.35 AMP Surf ace Moun t Schottky Barrier Rectifiers

SOD-323

FEATURES

. Low forward voltage drop

. Guard ring construction for

transient protection

. Negligible reverse recovery time

. Low reverse capacitance

MECHANICAL DATA

. Case: SOD-323, Molded plastic

. Epoxy: UL 94V-0 rate flame retardant

. Metallurgically bonded construction

. Polarity: Color band denotes cathode end

. Mounting position: Any

Device Marking:

SD103AWS:S4

SD103BWS:S5

SD103CWS:S6

MAXIMUM RATINGS

Rating 25

｡

am

C

bient temperature unless otherwise specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

SYMBOL SD103AWS

SD103BWS

SD103CWS

UNIT

Peak Repetitive Reverse Voltage

VRRM

40

30

20

Working Peak Reverse Voltage

VRWM

40

30

20

Maximum DC Blocking Voltage

VR

40

30

20

RMS Reverse Voltage

VR(RMS)

28

21

14

V

Forward Continuous Current (Note1)

IFM

350

mA

Non-Repetitive Peak Forward Surge Current

@ t ≤ 1.0s

IFSM

1.5

A

Power Dissipation (Note 1)

Pd

200

mW

Thermal Resistance, Junction to Ambient Air (Note1)

RθJA

625

℃

/ W

Operating Temperature Range

Tj

-65 ~ +125

℃

Storage Temperature Range

TSTG

-65 ~ +125

℃

.010 (0.25)

min.

.012 (0.3)

.059 (1.5)

Cathode Band

Top View

.043 (1.1)

Dimensions in inches

and (millimeters)

01-Jun-2002 Rev. A

Page 1 of 2

http://www.SeCoSGmbH.com /

Any changing of specification will not be informed individual

RoHS Compliant Product

A suffix of "-C" specifies halogen & lead-free
