P7611

ETALDOC 850/2

Page 2 of 3

July 2005

SPECIFICATIONS

Electrical

Part Number

Nominal

Inductance

(µH)

Inductance

(µH)

(1)

DCR (mΩ) Max

Rated Current

IRMS (A)

(2)

Isat

(2)

P7611-R47MT

0.47

0.52±20%

0.6

P7611-R68MT

0.68

0.63±20%

0.6

P7611-1R0MT

1.0

1.15±20%

1.3

P7611-2R2MT

2.2

2.0±20%

2.3

P7611-4R7MT

4.7

4.55±20%

4.6

P7611-5R6MT

5.6

5.6±20%

4.6

Notes

1. Inductance measured at 300kHz, 250mV.

2. Rated current, IRMS, is the current at which the temperature rise is 40ºC typical.

3. Saturation Current, Isat, is the DC current at which the zero-current inductance drops by 30% (typ).

4. Operating temperature -40ºC to +85ºC.

5. For non-standard inductance values, please contact Profec.

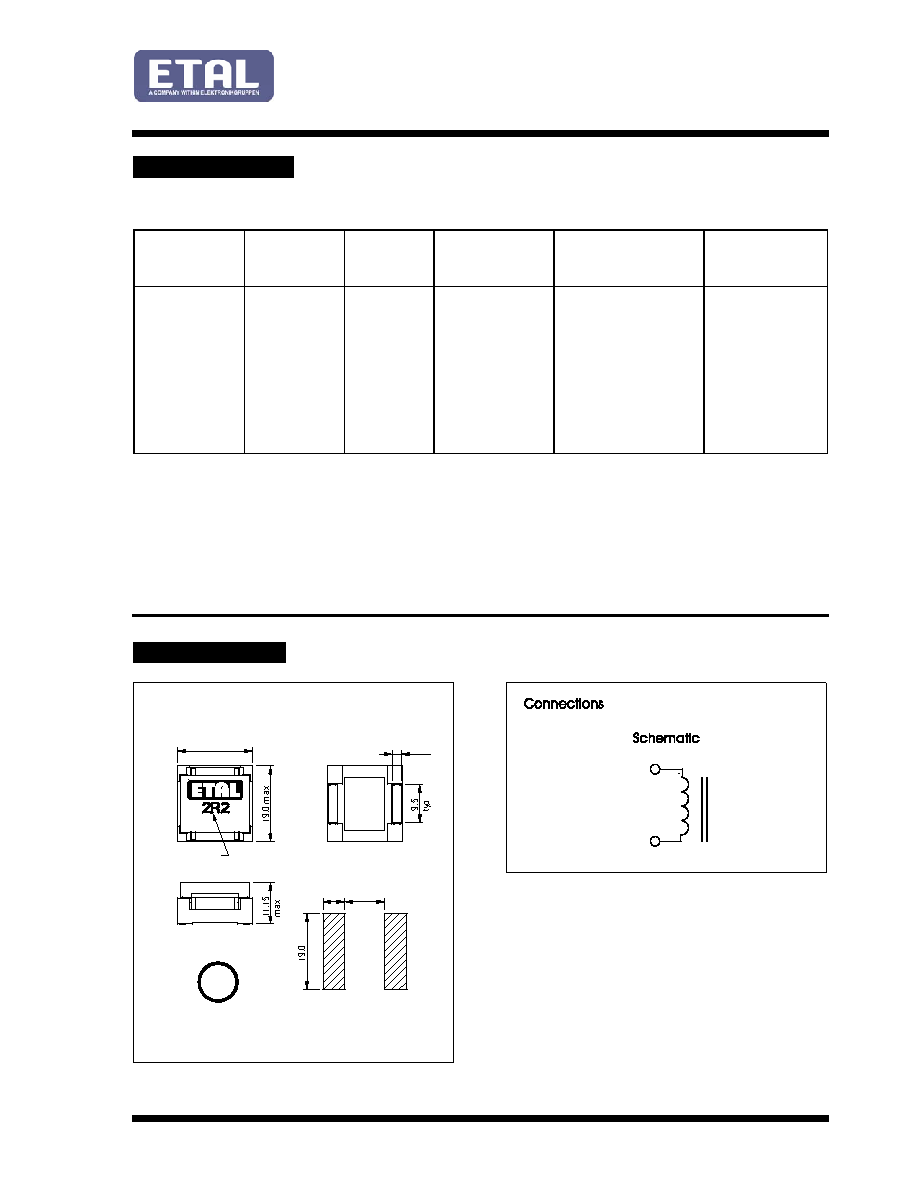

CONSTRUCTION

Dimensions shown are in millimetres

Terminal plating JESD97 category = e3.

Recommended reflow solder profile:

2 minutes @ 150-200ºC,

10 seconds @ 260ºC;

time above 217ºC 60 seconds maximum.

Fig. 2

Fig. 1

Dimensions

MARKING

INDUCTANCECODE

PCBPATTERN

19.2 max

10.0

5.5

2.3

typ
