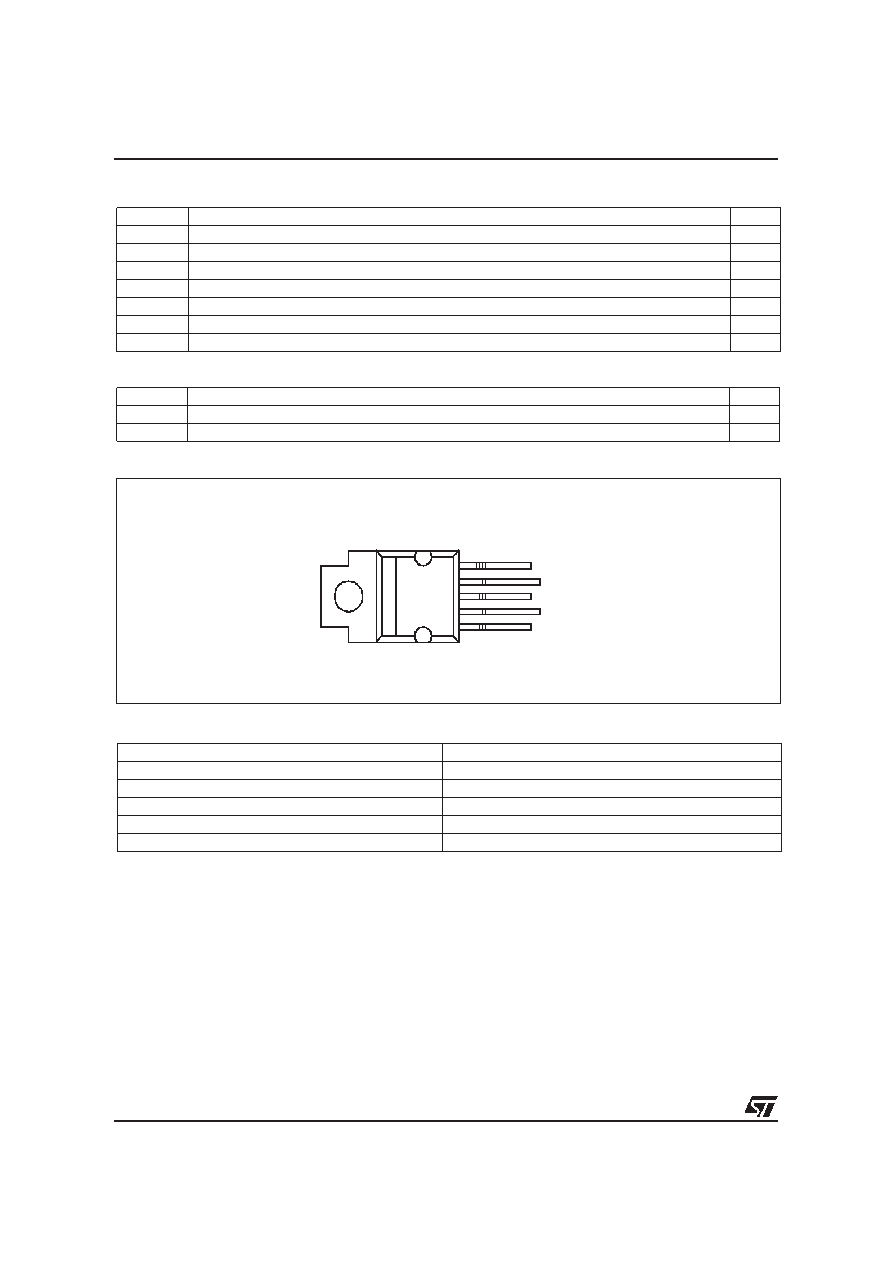

background image
2/9
VB027 / VB027(011Y) / VB027(012Y)
1
ABSOLUTE MAXIMUM RATING
THERMAL DATA
CONNECTION DIAGRAM (TOP VIEW)
Symbol
Parameter
Value
Unit
HVc
Collector voltage
Internally limited
V
IC
Collector current
Internally limited
A
Vd
Driving stage supply voltage
7
V
Id
Driving circuitry supply current
200
mA
VIN
Input voltage
10
V
Tj
Junction operating temperature
-40 to 150
°C
Tstg
Storage temperature
-55 to 150
°C
Symbol
Parameter
Value
Unit
Rthj-case
Thermal resistance junction-case
(MAX)
1.12
°C/W
Rthj-amb
Thermal resistance junction-ambient
(MAX)
62.5
°C/W
PIN FUNCTION (PENTAWATT HV)
No
Name
Function
1
GND
Emitter power ground
2Vd
Driving stage supply voltage
3HVC
Primary coil output signal
4
INPUT
Logic input channel
5
DIAG
Diagnostic output signal
5
4
3
2
1
HVC
GND
Vd
INPUT
DIAG
