SSM2319

Rev. 0 | Page 13 of 20

OUT+

STANDALONE

MASTER

SLAVE

OUT–

MODULATOR

(Σ-Δ)

SYNCI

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

OUT+

OUT–

MODULATOR

(Σ-Δ)

SYNCI

TO SLAVE

NOTES

1. TRACE LENGTH FROM SYNCI TO SYNCO IS LESS THAN 1mm.

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

OUT+

OUT–

MODULATOR

(Σ-Δ)

SYNCI

FROM MASTER

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

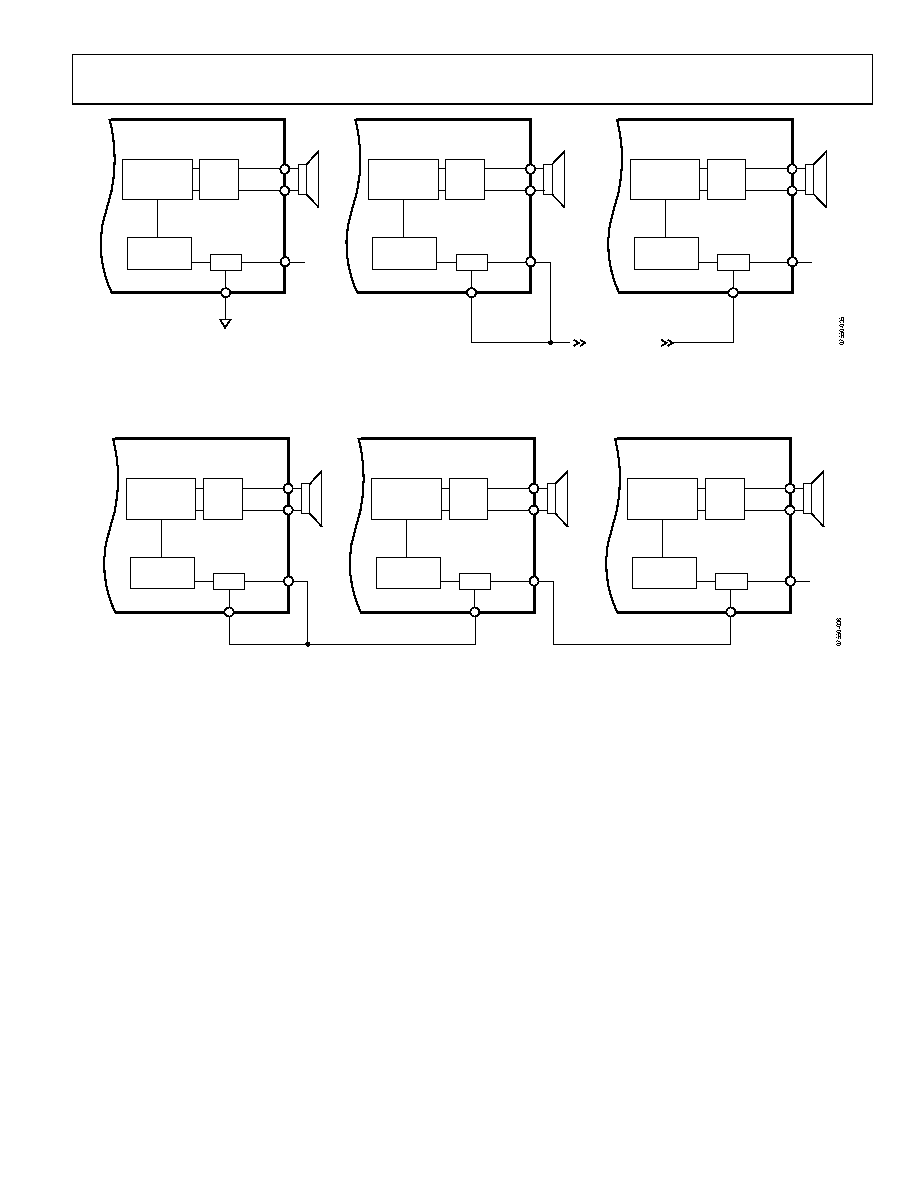

Figure 34. Synchronization Operation Modes

OUT+

SLAVE 1

MASTER

SLAVE 2

OUT–

MODULATOR

(Σ-Δ)

SYNCI

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

OUT+

OUT–

MODULATOR

(Σ-Δ)

SYNCI

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

OUT+

OUT–

MODULATOR

(Σ-Δ)

SYNCI

SYNCO

SYNC

INPUT

SYNC

OUTPUT

SSM2319

FET

DRIVER

SYNC

INTERNAL

OSCILLATOR

Figure 35. Typical SYNC Master-Slave Daisy-Chain Configuration
