TS2012FC
Typical application
5/31
2
Typical application

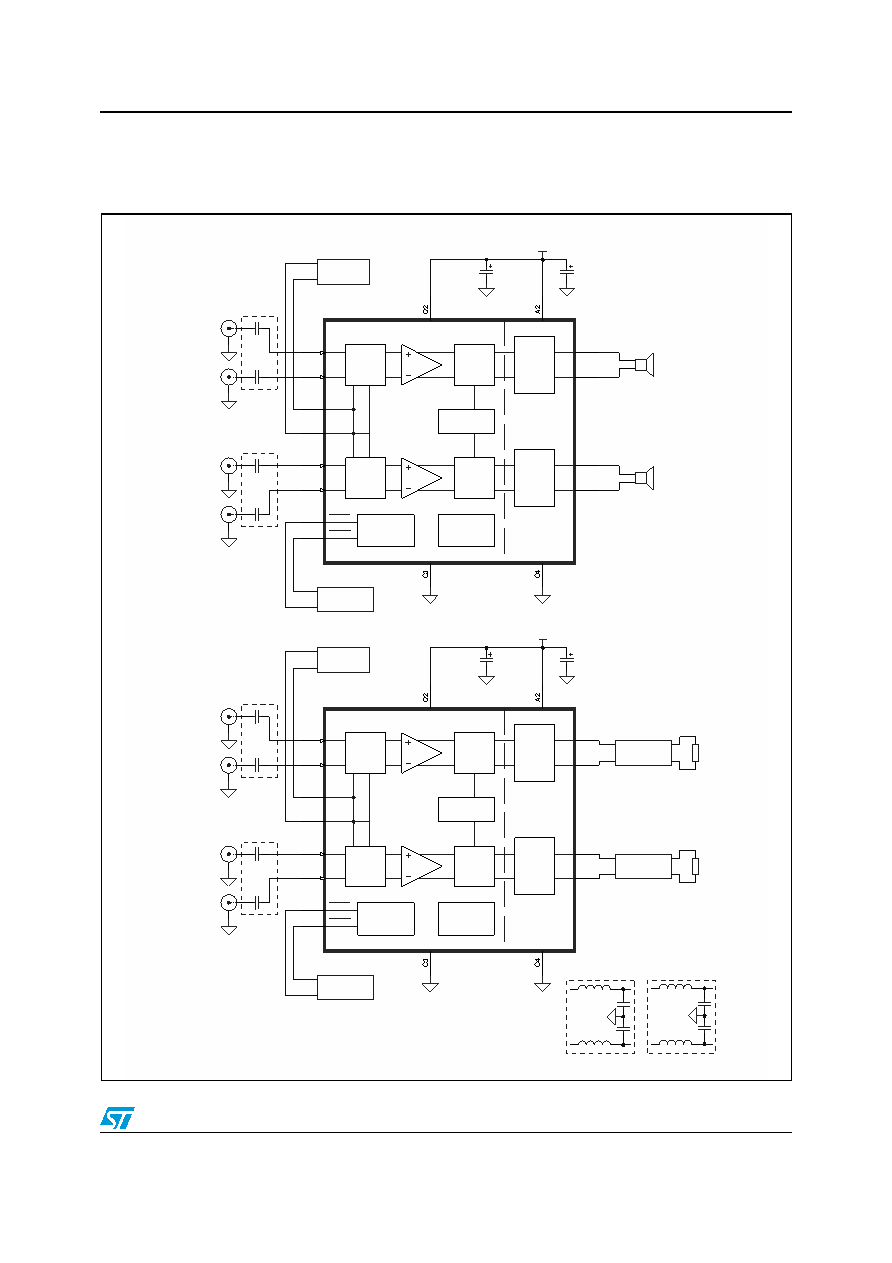

Figure 1.
Typical application schematics
TS2012
15 H
μ
2 F
μ
2 F
μ
15 H
μ
30 H
μ
1 F
μ
1 F
μ
30 H
μ
Load
4
LC Output Filter
8
LC Output Filter
Ω
Ω
Left speaker
Right speaker
Cin
Cin
Left IN+
Input capacitors
are optional
Left IN-
Differential
Left Input
Cin
Cin
Right IN+
Right IN-
Differential
Right Input
Standby Control
VCC
Cs1
1uF
Cs2
0.1uF
LC Output Filter
LC Output Filter
Load
Gain Select
Control
Gain
Select
Oscillator
PWM
PWM
Gain
Select
Standby
Control
Protection
Circuit
Bridge
H
Bridge
H
Lin+
Lin-
G0
G1
Rin+
Rin-
STBYL
STBYR
Lout+
A3
A4
D3
D4
B3
B4
C1
D1
B2
C2
B1
A1
Lout-
Rout+
Rout-
PVCC
PGND
AGND
AVCC
TS2012
Cin
Cin
Left IN+
Input capacitors
are optional
Left IN-
Differential
Left Input
Cin
Cin
Right IN+
Right IN-
Differential
Right Input
Standby Control
VCC
Cs1
1uF
Cs2
0.1uF
Gain Select
Control
Gain
Select
Oscillator
PWM
PWM
Gain
Select
Standby
Control
Protection
Circuit
Bridge
H
Bridge
H
Lin+
Lin-
G0
G1
Rin+
Rin-
STBYL
STBYR
Lout+
A3
A4
D3
D4
B3
B4
C1
D1
B2
C2
B1
A1
Lout-
Rout+
Rout-
PVCC
PGND
AGND
AVCC
