VT5376 Folha de dados(PDF) 23 Page - STMicroelectronics

Nome de Peças VT5376
Descrição Electrónicos  Ultra-low power laser motion sensor for laser mouse applications
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  STMICROELECTRONICS [STMicroelectronics]
Página de início  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VT5376 Folha de dados(HTML) 23 Page - STMicroelectronics

Back Button VT5376 Datasheet HTML 19Page - STMicroelectronics VT5376 Datasheet HTML 20Page - STMicroelectronics VT5376 Datasheet HTML 21Page - STMicroelectronics VT5376 Datasheet HTML 22Page - STMicroelectronics VT5376 Datasheet HTML 23Page - STMicroelectronics VT5376 Datasheet HTML 24Page - STMicroelectronics VT5376 Datasheet HTML 25Page - STMicroelectronics VT5376 Datasheet HTML 26Page - STMicroelectronics VT5376 Datasheet HTML 27Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 23 / 30 page
background image
VT5376
Typical application
23/30
8

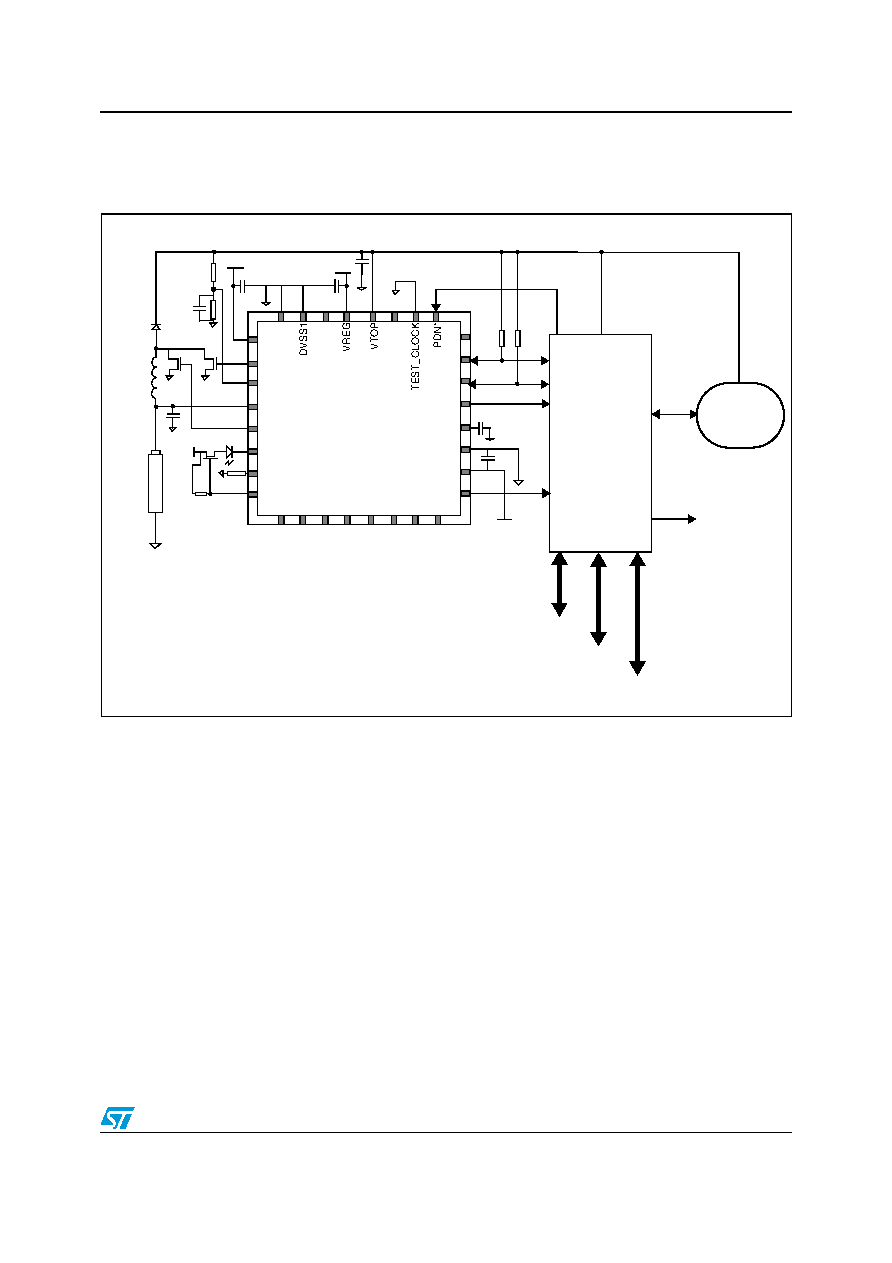

Typical application
Figure 14.
Very low power and low cost wireless laser application
1.8V
MCU
1 AA
buttons/scroll wheel/tilt wheel
RF module
1.8V
BT or 2.4 GHz prop
VTOP (>=2.2V)
Low Batt
1.8V
VTOP
resolution setting switches
display
1
LASER_OUT
RBIN
LASER_NEN
AVSS
AVDD
DVDD2
DVSS2
VBAT
RC_OSC
SDA
SCL
MOTION
VREF
VGATE_START
VT5376
RESET_OUT
VGATE_ON
PDN* = POWER_DOWN
max load = 25mA
