STB7102
6/9

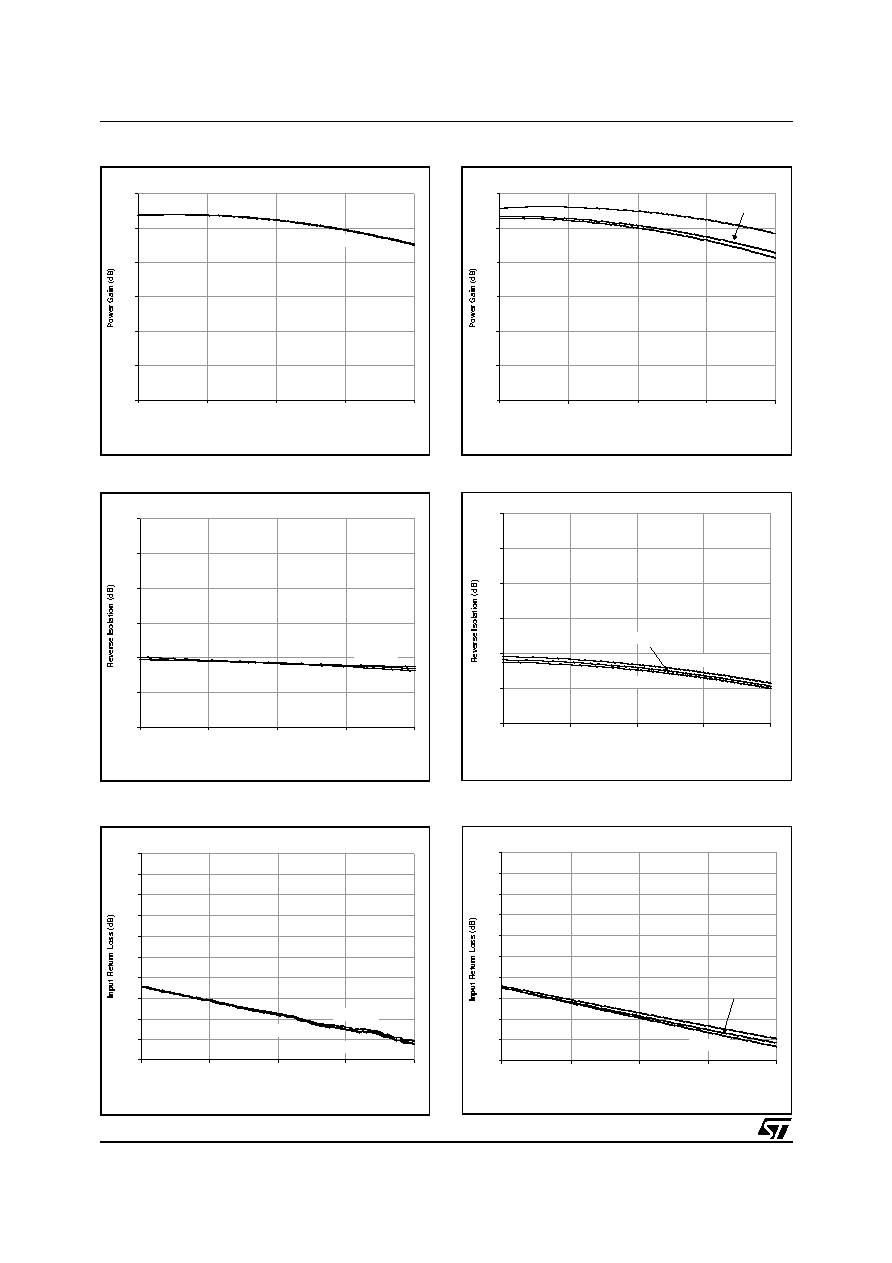

TYPICAL PERFORMANCE (PCS BAND)
Power Gain vs. Frequency and Voltage
0
2
4
6
8
10
12
1800
1900
2000
2100
2200
Frequency (MHz)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Power Gain vs. Frequency and Temperature
0
2
4
6
8
10
12
1800
1900
2000
2100
2200
Frequency (MHz)
Ta = 25 °C
Ta = -30 °C
Ta = 85 °C
Vcc = 2.7 V
Reverse Isolation vs. Frequency and Voltage
-60
-50
-40
-30
-20
-10
0
1800
1900
2000
2100
2200
Frequency (MHz)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Input Return Loss vs. Frequency and Voltage
-20
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
1800
1900
2000
2100
2200
Fre quency (MHz)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Reverse Isolation vs. Frequency and Temperature
-60
-50
-40
-30
-20
-10
0
1800
1900
2000
2100
2200
Frequency (MHz)
Ta = 25 °C
Ta = -30 °C
Ta = 85 °C
Vcc = 2.7 V
Input Return Loss vs. Frequency and Temperature
-20
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
1800
1900
2000
2100
2200
Frequency (M Hz)
Ta = 25 °C
Ta = -30 °C
Ta = 85 °C
Vcc = 2.7 V
