1 / 1 page

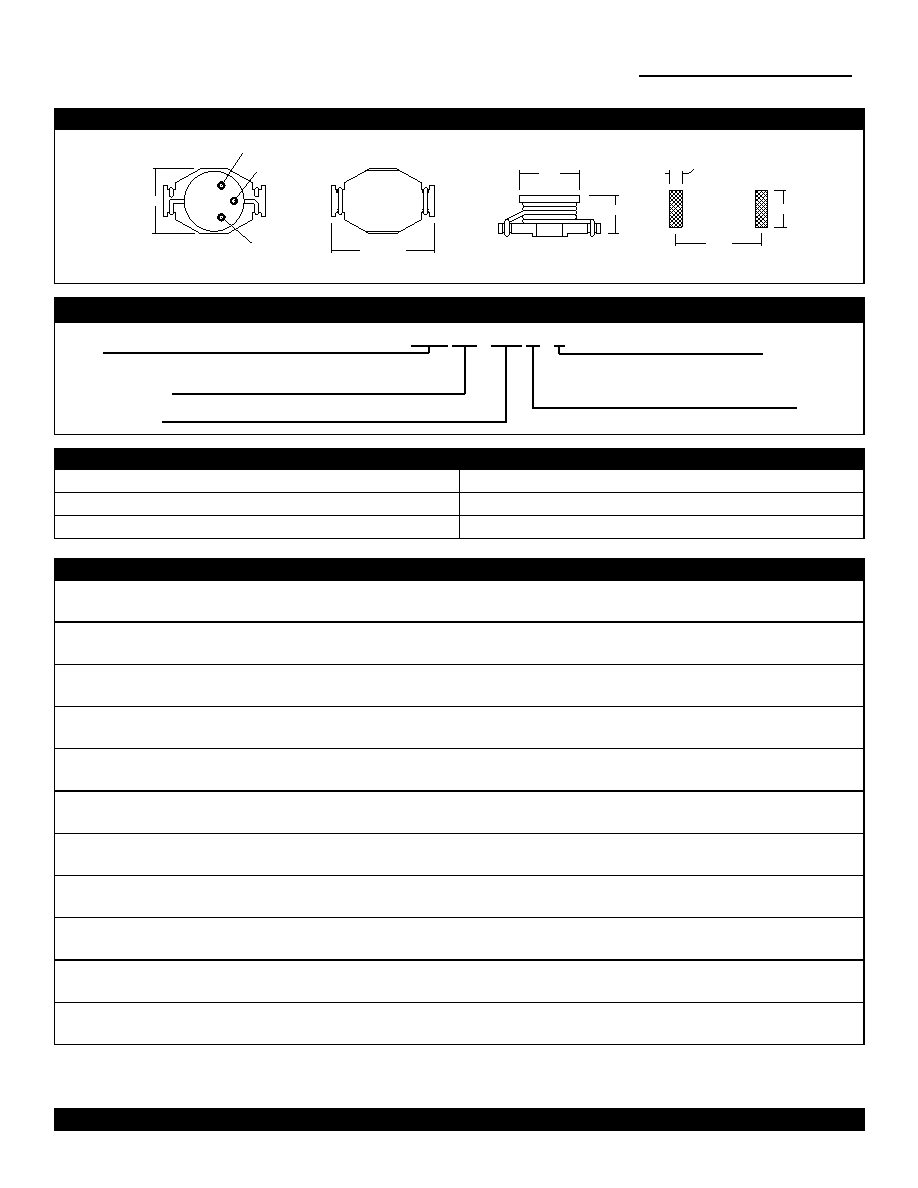

Dimensions
Part Numbering Guide
Series
Packaging Style
B=Bulk
T=Tape & Reel
HC = High Current
(700 pcs per reel)
Tolerance
Inductance Code
M=20%
PSSL - 0804 HC - R33 M - T
Power Inductor - High Current
(PSSL-0804HC Series)
Features
Inductance Range
0.33 µH to 4.7 µH
Available Tolerance
M=20%
Operating Temperature
-40°C to 85°C
Dimensions in mm
Electrical Specifications
Inductance
Code
Inductance
(µH ± 20%)
Test
Frequency
DCR Max
(Ohms)
Isat¹
(A)
Irms²
(A)
R33
0.33
100 kHz, 0.1 Vrms
0.002
20.0
16.0
R68
0.68
100 kHz, 0.1 Vrms
0.005
13.0
12.0
1R0
1.0
100 kHz, 0.1 Vrms
0.006
11.0
10.0
1R5
1.5
100 kHz, 0.1 Vrms
0.008
9.0
9.0
2R2
2.2
100 kHz, 0.1 Vrms
0.011
7.8
7.4
2R7
2.7
100 kHz, 0.1 Vrms
0.012
7.0
6.6
3R3
3.3
100 kHz, 0.1 Vrms
0.014
6.4
5.9
4R7
4.7
100 kHz, 0.1 Vrms
0.018
5.4
4.8
6R8
6.8
100 kHz, 0.1 Vrms
0.020
3.6
5.0
100
10.0
100 kHz, 0.1 Vrms
0.026
3.3
4.3
Notes:
1)
Inductance drop = 10% typ. At Isat
2)
T = 40°C typ. At Irms
Specifications subject to change without notice.
Rev. 02/01
(Not to scale)
TEL 949-366-8700
FAX 949-366-8707
WEB www.caliberelectronics.com
9.91 max
6.35 max
13.21 max
Bottom
8.38
Suggested
Pattern
1.52
10.16
4.06
1st Significant Digit
2nd Significant Digit
Multiplier
CAL I B E R
ELE C T R O N I C S
I N C .
specifications subject to change * revision 3-2003
