ST6200C/ST6201C/ST6203C

62/100

10.4 SUPPLY CURRENT CHARACTERISTICS

The following current consumption specified for

the ST6 functional operating modes over tempera-

ture range does not take into account the clock

source current consumption. To get the total de-

vice consumption, the two current values must be

added (except for STOP mode for which the clock

is stopped).

10.4.1 RUN Modes

Notes:

1. Typical data are based on TA=25°C, VDD=5V (4.5V≤VDD≤6.0V range) and VDD=3.3V (3V≤VDD≤3.6V range).

2. Data based on characterization results, tested in production at VDD max. and fOSC max.

3. CPU running with memory access, all I/O pins in input with pull-up mode (no load), all peripherals in reset state; clock

input (OSCIN) driven by external square wave, OSG and LVD disabled, option bytes not programmed.

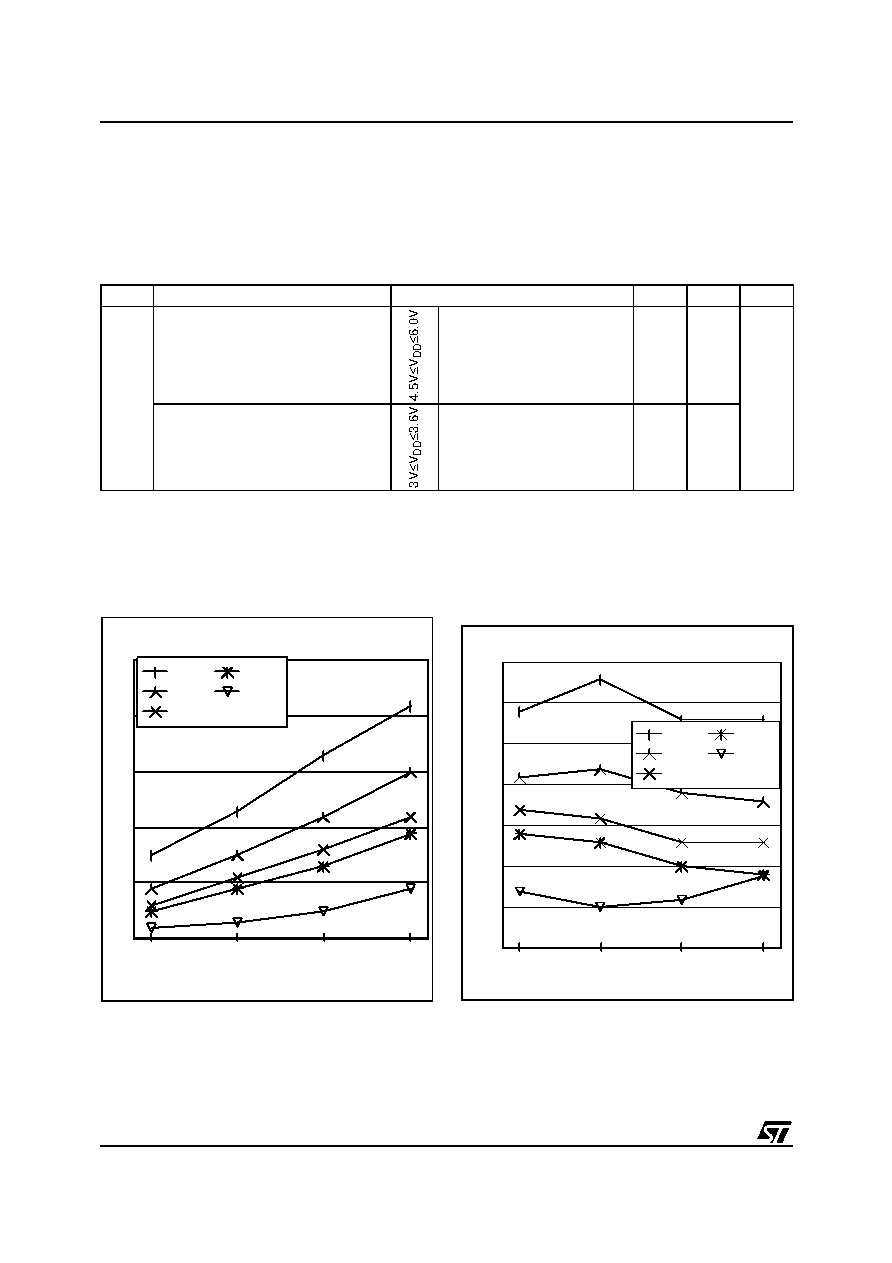

Figure 36. Typical IDD in RUN vs. fCPU

Figure 37. Typical IDD in RUN vs. Temperature

(VDD = 5V)

Symbol

Parameter

Conditions

Typ 1)

Max 2)

Unit

IDD

Supply current in RUN mode 3)

(see Figure 36 & Figure 37)

fOSC=32kHz

fOSC=1MHz

fOSC=2MHz

fOSC=4MHz

fOSC=8MHz

0.5

1.3

1.6

2.2

3.3

0.7

1.7

2.4

3.3

4.8

Supply current in RUN mode 3)

(see Figure 36 & Figure 37)

fOSC=32kHz

fOSC=1MHz

fOSC=2MHz

fOSC=4MHz

fOSC=8MHz

0.3

0.6

0.9

1.0

1.8

0.4

0.8

1.2

1.5

2.3

VDD [V]

IDD [mA]

8MHz

4MHz

2MHz

1MHz

32KHz

-40

125

T[°C]

0.5

1.5

2.5

3.5

IDD [mA]

8MHz

4MHz

2MHz

1MHz

32KHz
