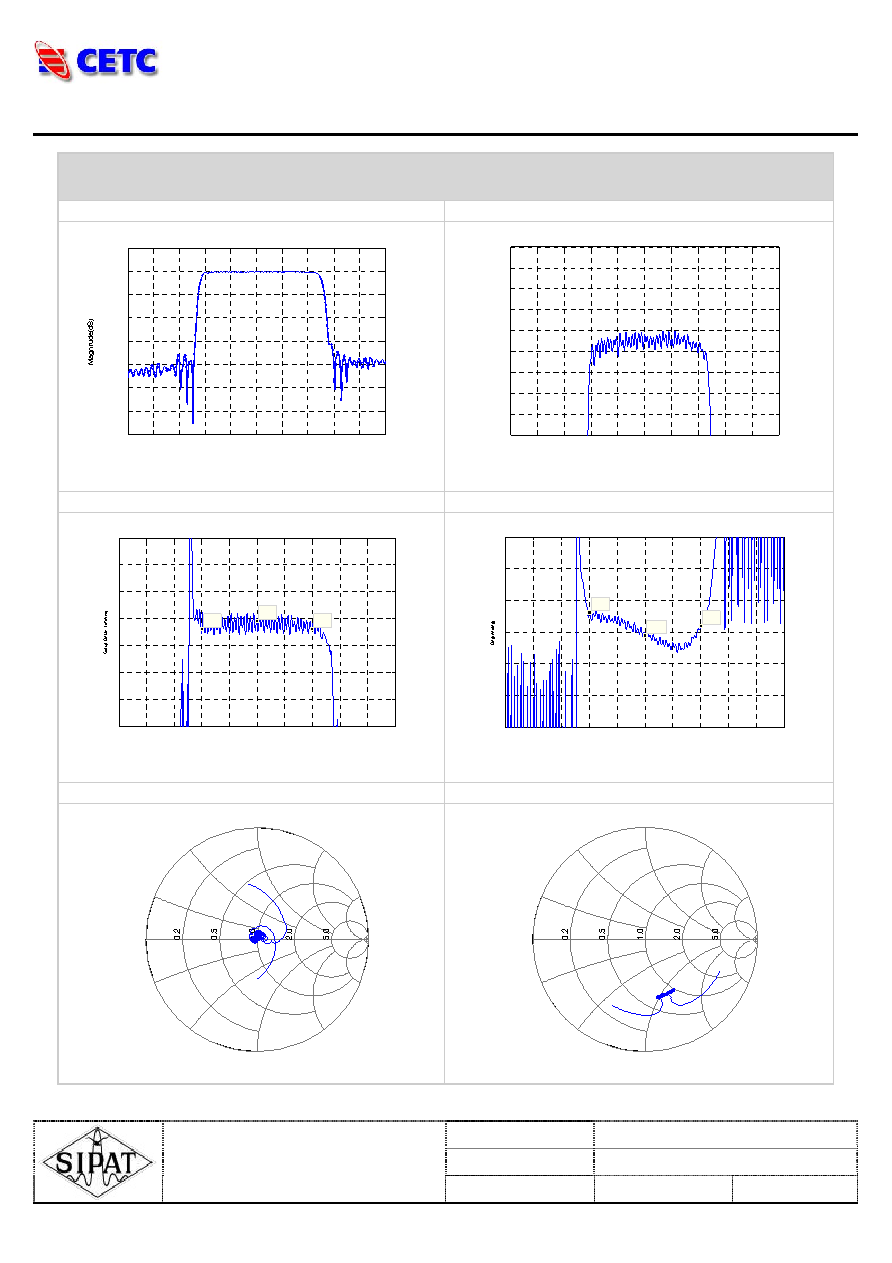

400MHz Low-loss SAW Filter
45MHz Bandwidth
Part Number: SP40001
Typical Performance
Frequency Respond
Passband Respond
350
360
370
380
390
400
410
420
430
440
450
-75.851
-65.851
-55.851
-45.851
-35.851
-25.851
-15.851
-5.851
Type Performance
Frequency(MHz)
3dB CF = 401.7181MHz
1.5dB = 45.0237MHz
3dB = 46.2487MHz
35dB = 53.795MHz
Insert Loss = -15.851dB
Passband Ripple = 0.83616dB
Ultimate Rejection = 31.0934dB
Group Delay = 41.4691ns
Phase Linearity = 13.2384deg
Absolute Delay = 439.1817ns
Horizontal: 10MHz/Div
Vertical: 10dB/Div
350
360
370
380
390
400
410
420
430
440
450
-17.851
-17.351
-16.851
-16.351
-15.851
-15.351
-14.851
-14.351
-13.851
Horizontal: 10MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±20MHz)
Phase Linearity(f0±20MHz)
350
360
370
380
390
400
410
420
430
440
450
250
300
350
400
450
500
550
600
X: 400
Y: 445.9
Type Performance
Frequency(MHz)
X: 420
Y: 430.8
X: 380
Y: 430.9
Horizontal: 10MHz/Div
Vertical: 50ns/Div
350
360
370
380
390
400
410
420
430
440
450
-30
-20
-10
0
10
20
30
X: 400
Y: -1.081
Type Performance
Frequency(MHz)
X: 420
Y: 1.931
X: 380
Y: 6.256
Horizontal: 10MHz/Div
Vertical: 10deg/Div
Smith Chart S11
Smith Chart S22
+j0.2
-j0.2
+j0.5
-j0.5
+j1.0
-j1.0
+j2.0
-j2.0
+j5.0
-j5.0
0.0
∞
+j0.2
-j0.2
+j0.5
-j0.5
+j1.0
-j1.0
+j2.0
-j2.0
+j5.0
-j5.0
0.0
∞
