Minimum and Maximum Ratings

ILS PART NUMBER

Operating

Temperature at

Tc-Point [˚C]*

Storage

Temperature [˚C]*

Forward Current

per chip [mA]*

Reverse Voltage [Vdc]*

ILH-OG01-HW90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-WM90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-QW90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-NW90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-WW90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-ST90-SC211-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

ILH-OG01-UL90-SC221-WIR200.

-40 ... 125 (°C)

-40 ... 125 (°C)

200mA ... 1800mA

Not designed for reverse

voltage

* Exceeding maximum ratings for operating and storage temperature will reduce expected life time or destroy the LED module. Exceeding maximum ratings for

operating voltage will cause hazardous overload and will likely destroy the LED module. The temperature of the LED module must be measured at the Tc-Point

according to EN60598-1 in a thermally constant status with a temperature sensor or a temperature sensitive label.

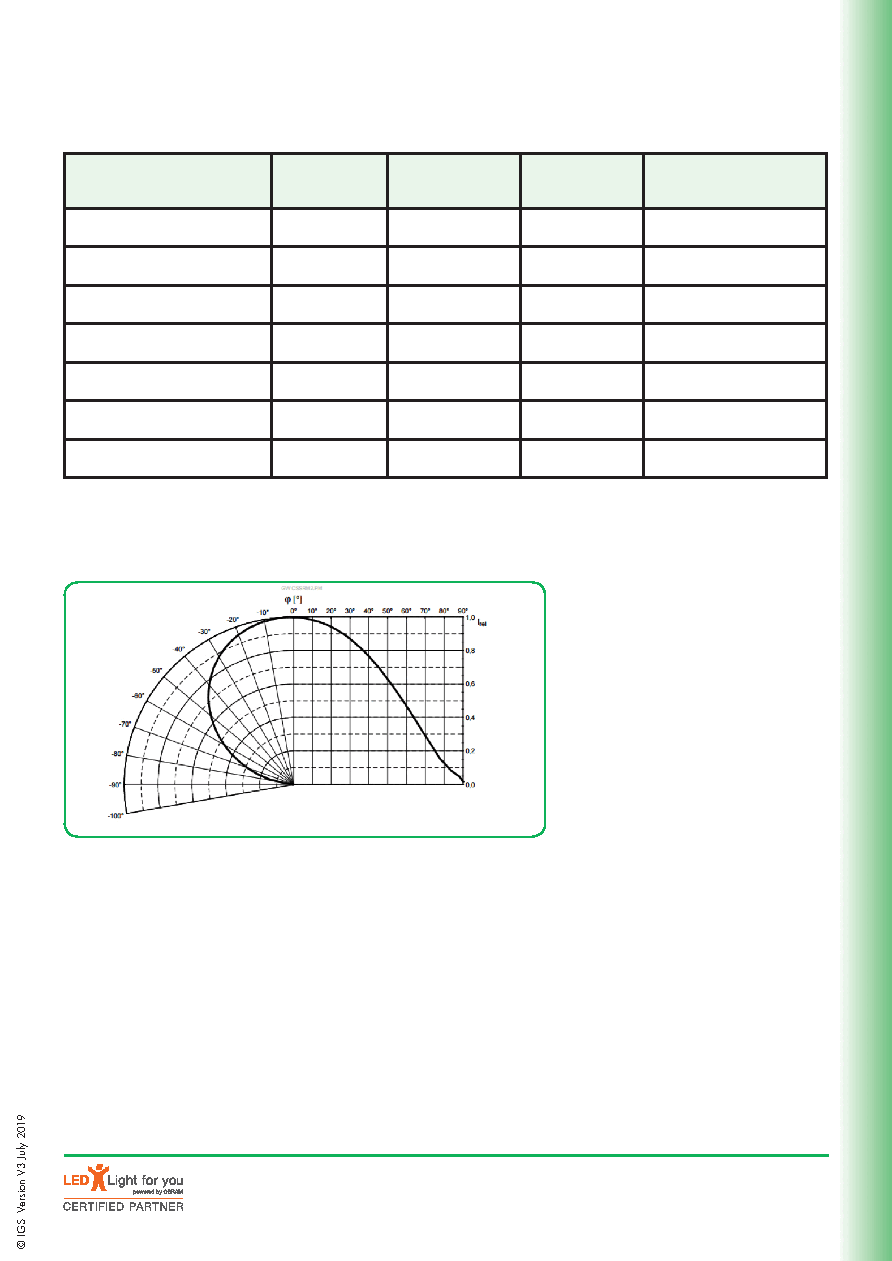

Radiation of single LED
