E5CSV

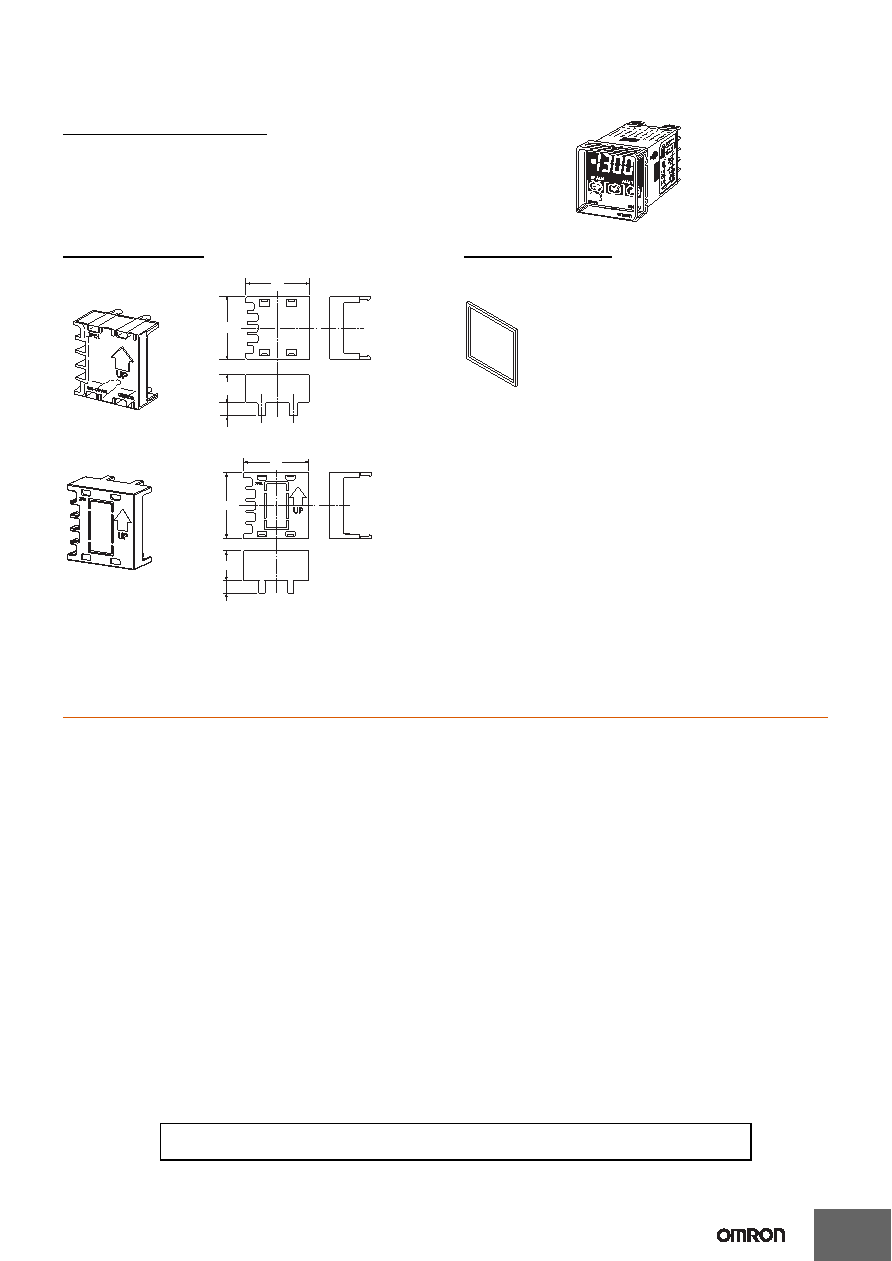

■ Accessories (Order Separately)

Hard Protective Cover

The Y92A-48B Protective Cover (hard type) is available for the following applications.

• To protect the set from dust and dirt.

• To prevent the panel from being accidentally touched causing displacement of set values.

• To provide effective protection against water droplets.

Terminal Cover

Rubber Packing

Y92S-29 (for DIN48

× 48)

Order the Rubber Packing separately if it becomes lost

or damaged. The Rubber Packing can be used to

achieve an IP66 degree of protection for models with

terminal blocks.

(Deterioration, shrinking, or hardening of the rubber

packing may occur depending on the operating

environment. Therefore, periodic replacement is

recommended to ensure the level of waterproofing

specified in NEMA4. The time for periodic replacement

depends on the operating environment. Be sure to

confirm this point at your site. Consider one year a

rough standard. OMRON shall not be liable for the level

of water resistance if the customer does not perform

periodic replacement.)

The Rubber Packing does not need to be attached if a

waterproof structure is not required.

Safety Precautions

Refer to Safety Precautions for All Temperature Controllers.

Refer to E5CS/E5CSV Operation for operating procedures.

°C

92A-4 8B

9 2A-48B

92A-4 8B

48

48.8

22

9.1

E53-COV10

48

48.8

22

9.1

E53-COV17

(For Controllers after the

design change scheduled

for October 2010)

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
