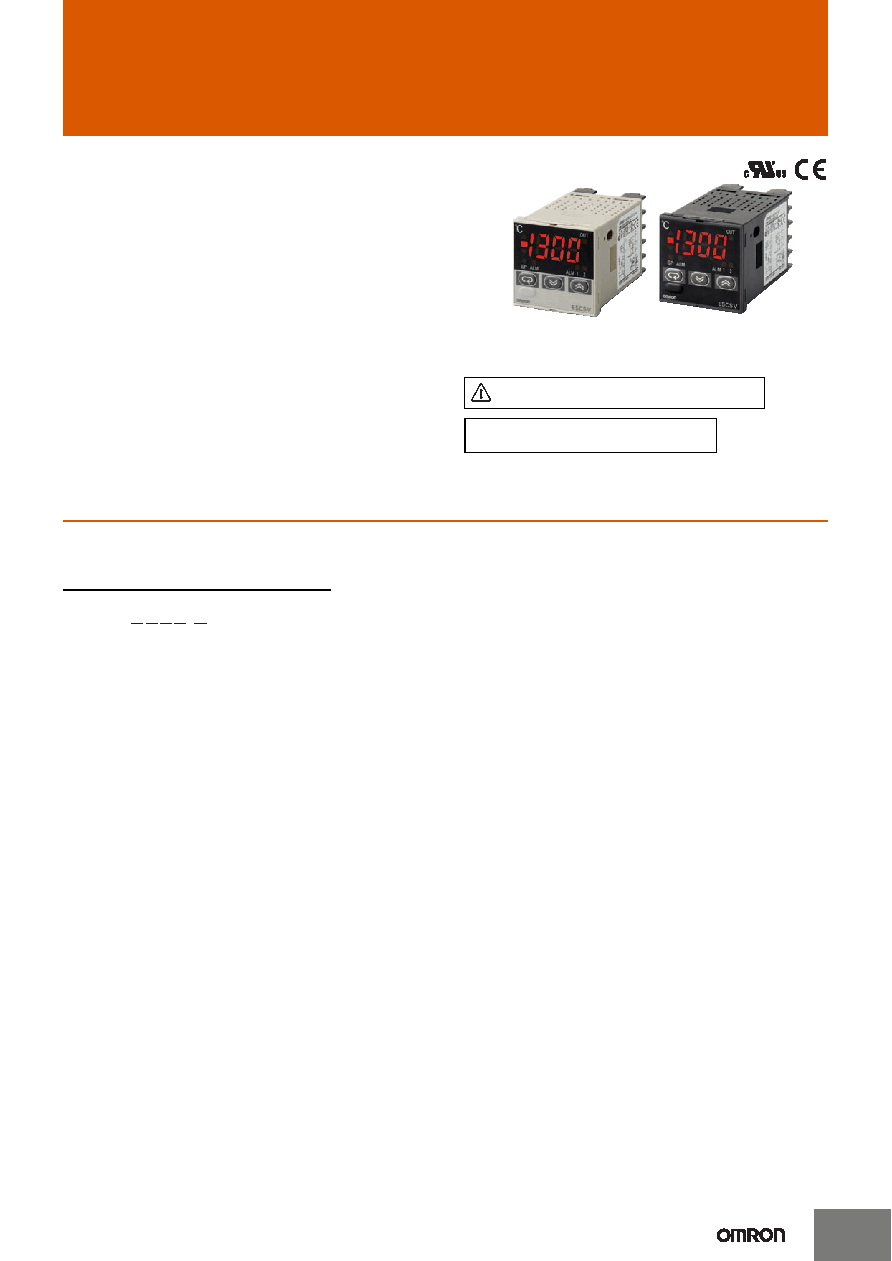

CSM_E5CSV_DS_E_7_5

1

Temperature Controllers

E5CSV

Easy Setting Using DIP Switch and Simple

Functions in DIN 48

× 48 mm-size Temperature

Controllers

• Easy setting using DIP switch.

• Models with two alarms added to Series, ideal for temperature

alarm applications.

• Universal-input (thermocouple/platinum resistance thermometer)

models also available.

• Clearly visible digital display with character height of 13.5 mm.

• Models available with black in addition to white cases.

• RoHS compliant.

Model Number Structure

■ Model Number Legend

Models with Terminal Blocks

Note: A functional explanation is provided here for illustration, but models are not necessarily available for all possible combinations. Refer to

Ordering Information

when ordering.

Examples

• Relay control output, without alarm, thermocouple/platinum-resistance thermometer multi input, black case : E5CSV-RT

• Relay control output, one alarm output, platinum resistance thermometer input, black case, light gray case : E5CSV-R1P-W

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

Refer to E5CS/E5CSV Operation for

operating procedures.

Refer to Safety Precautions for All Temperature

Controllers

.

12 3 4

5

E5CSV-

@@@@-@

1. Control Outputs

R: Relay

Q: Voltage for driving SSR

2. Alarm Outputs

Blank: No alarm

1:

1 alarm

2:

2 alarms

3. Input

KJ: Thermocouple

P:

Platinum resistance thermometer

T:

Thermocouple/platinum resistance

thermometer (universal-input)

4. Power Supply Voltage

Blank: 100 to 240 VAC

D:

24 VAC/VDC

5. Case Color

Blank: Black

W:

Light gray
