.250 6.35

.238

6.05

UNLESS OTHERWISE SPECIFIED

LEADING DIMENSIONS ARE INCHES

DIMENSIONS IN [ ] ARE MILLIMETERS

ALL DIMENSIONS ARE FOR REFERENCE ONLY

AND SUBJECT TO CHANGE WITHOUT NOTICE.

UN-DIMENSIONED/NON-CRITICAL FEATURES

MAY VARY IN SIZE AND LOCATION

COLORS MAY VARY

TOLERANCES:

.XXX = ±.005 [0.13]

.XX = ±.02 [0.5]

.X = ±.2 [5]

± 1/32

FRACTIONS

ANGLES ± 1°

CABLE LENGTH TOLERANCES:

≤12 [305] = +1 [25] / -0

>12 [305] ≤ 60 [1524] = +2 [51] / -0

>60 [1524] ≤ 120 [3048] = +4 [102] / -0

>120 [3048] ≤ 300 [7620] = +6 [152] / -0

>300 [7620] = +5% / -0

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF INFINITE ELECTRONICS, INC. ANY REPRODUCTION IN PART

OR WHOLE WITHOUT THE WRITTEN PERMISSION OF INFINITE ELECTRONICS, INC. IS PROHIBITED. THESE COMMODITIES, TECHNOLOGY

OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS.

DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

Website: www.L-com.com

Phone: 1.800.341.5266 │ 1.978.682.6936

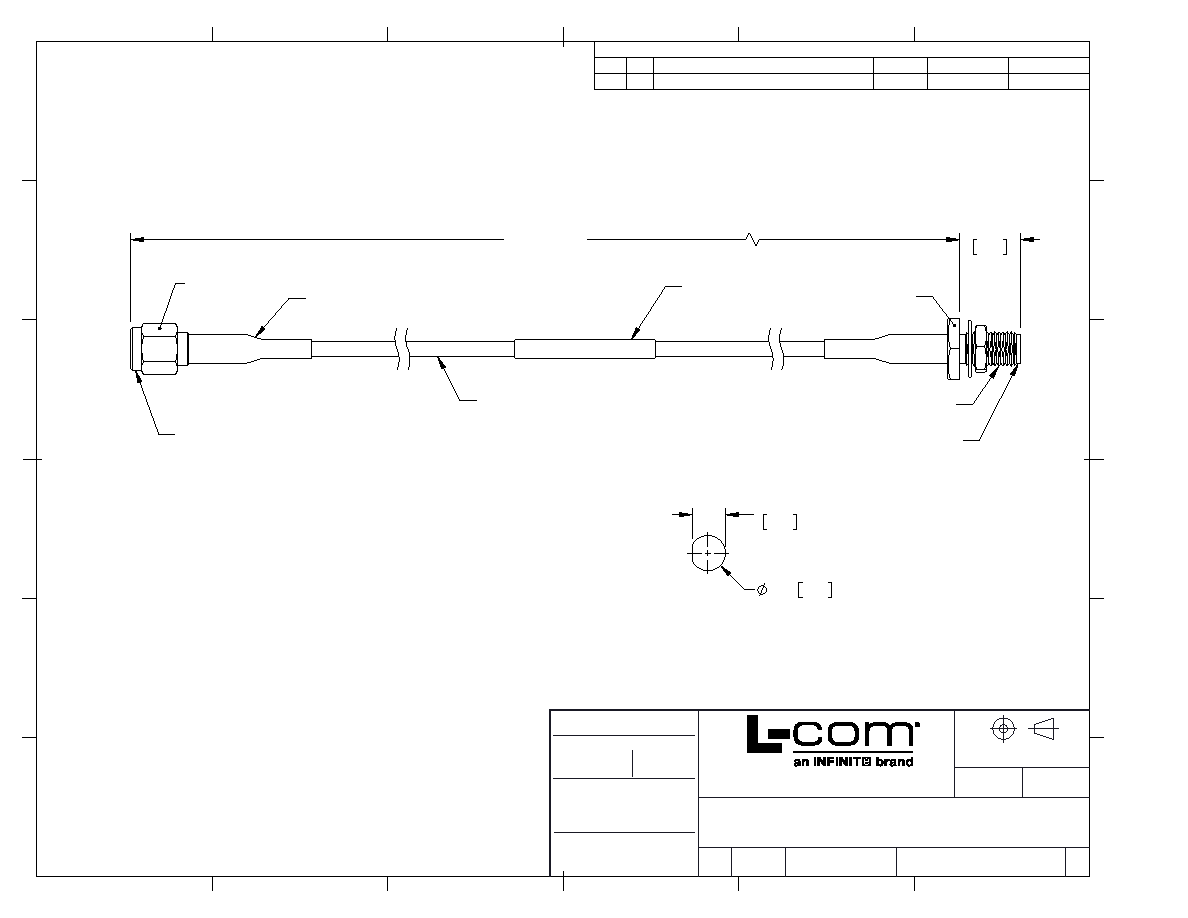

43321

LENGTH

SEE NOTE 3

.43

11.0

2X HEAT SHRINK

REVERSE POLARITY

SMA PLUG

CONNECTOR

CA-100, 50 OHM LOW LOSS COAXIAL CABLE

JACKET: PVC, BLACK

LABEL

SEE NOTE 1

11mm HEX

REVERSE POLARITY

SMA JACK

BULKHEAD

CONNECTOR

1/4-36 UNS-2A

2X 8mm HEX

NOTES:

CABLE ASSEMBLY LENGTH LABEL PLACEMENT: 36 INCHES

1.

OR LESS, ONE LABEL APPROXIMATELY CENTERED.

LONGER THAN 36 INCHES, TWO LABELS APPROXIMATELY

6 INCHES FROM EACH CONNECTOR.

CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.

2.

CABLE ASSEMBLY LENGTH DETERMINED BY ITEM PN AND

3.

DESCRIPTION.

WWW.L-COM.COM

LCXXXXX

RECOMMENDED

PANEL CUTOUT

REVISION

ZONE REV

DESCRIPTION

DATE

CHANGED BY

APPROVED

A

INITIAL RELEASE

08/20/2024

DMAY

AGANWANI

ITEM NO.

REV

CAGE CODE

SIZE

A

DRAWN BY

CC-RSPRSJBC

A

DESCRIPTION

REVERSE POLARITY SMA PLUG TO REVERSE POLARITY SMA

JACK BULKHEAD WITH CA-100 COAX CABLE

DMAY

SHEET

SCALE

INTERPRET ALL DIMENSIONS AND

TOLERANCES PER ASME Y14.5

NONE

1 OF 1

LC DS Rev-D4 Asize

A

A

B

B

C
