Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPONENT PARTS

A full set of engine parts list and diagrams are available from the CLARKE

International service department.

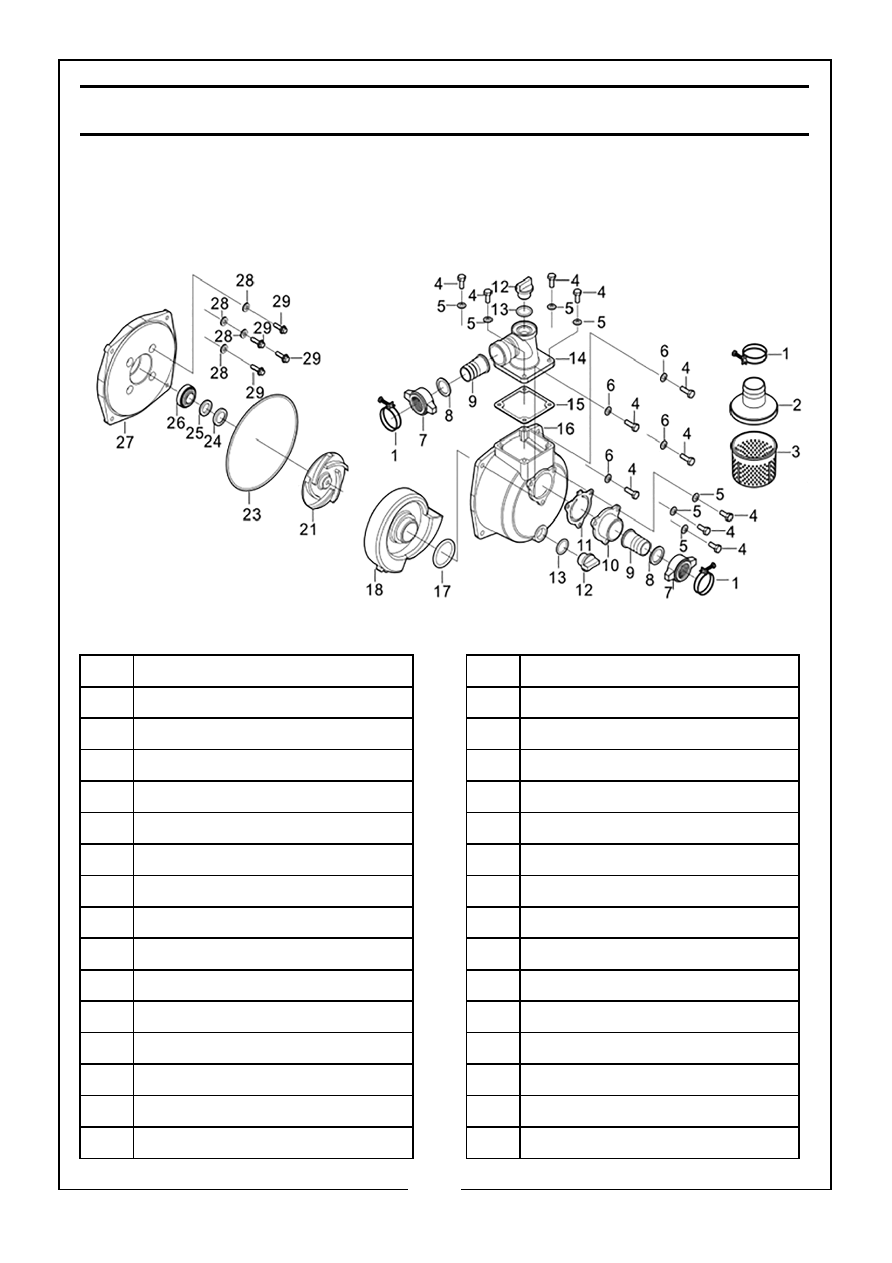

WATER PUMP ASSEMBLY

No

Description

No

Description

1

Hose clip

16

Pump body

2

Filter cover

17

Case sealing

3

Filter body

18

Casing

4Bolt

19

N/A

5Washer

20

N/A

6

Washer

21

Impeller

7

Adaptor ring nut

22

n/a

8

Hose seal connector

23

Pump joint gasket

9

2” pipe connector

24

Seal

10

Water inlet

25

Porcelain seal

11

Water inlet gasket

26

Seal assembly

12

Plug

27

Pump end plate

13

Washer for plug

28

Washer

14

Water outlet elbow

29

Bolt

15

Outlet gasket

30

Pump assembly complete
