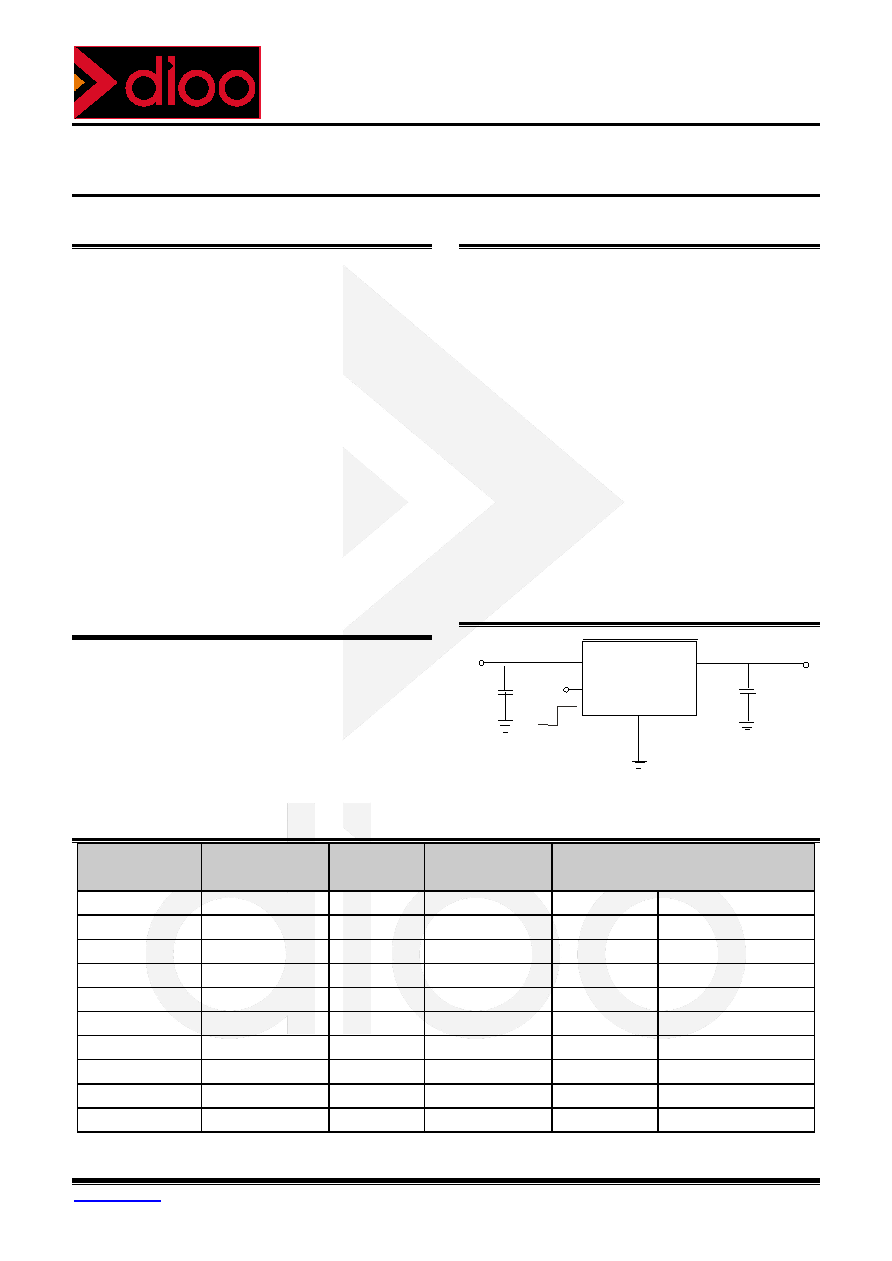

 1 / 11 page
background image
Rev 1.6
www.dioo.com
© 2022 DIOO MICROCIRCUITS CO., LTD
DIO7758• Rev. 1.6
DIO7758
300 mA, Ultra-Low-Noise, Low-IQ LDO
Features
Operating input voltage range: 1.6 V to 5.5 V
Output voltage range: 0.8 V to 3.3 V
Output current: 300 mA
Ultra-Low quiescent current: Typ. 25 µA
Dropout voltage : 140mV at IOUT=300 mA
PSRR: 75dB at 1 kHz, IOUT = 20 mA
Output voltage Tolerance: ±1%
Stable with ceramic capacitors 1 µF
Thermal-overload protection
Short-circuit protection
DIO7758A for active discharge option
Available in small DFN2*2-6 package
These devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
Applications
MP3/MP4 Players
Cellphones, Radiophone, Digital Cameras
Bluetooth, Wireless Handsets
Others portable electronics device
Descriptions
The DIO7758 series is a high-accuracy, low-noise,
high-speed, high-PSRR, and low-dropout CMOS
Linear regulator with high ripple rejection. The
devices offer a new level of cost-effective
performance in cellular phones, laptop and
notebook computers, and other portable devices.
The DIO7758 has the fold-back maximum output
current which depends on the output voltage. So
the current limit functions both as short circuit
protection and as an output current limiter.
The device is available in the DFN2*2-6 package.
Typical Applications
V
OUT
CIN
1 µF
1 µF
IN
IN
OUT
EN
GND
V
COUT
On
Off
Ordering Information
Order Part
Number
Top Marking
TA
Package
DIO7758A08CD6
75AD
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A10CD6
75AE
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A11CD6
75AC
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A12CD6
75AF
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A15CD6
75AG
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A18CD6
75AH
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A25CD6
75AJ
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A28CD6
75AK
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A30CD6
75AM
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
DIO7758A33CD6
75AN
Green
-40 to 125°C
DFN2*2-6
Tape & Reel,3000
