ANTENNA

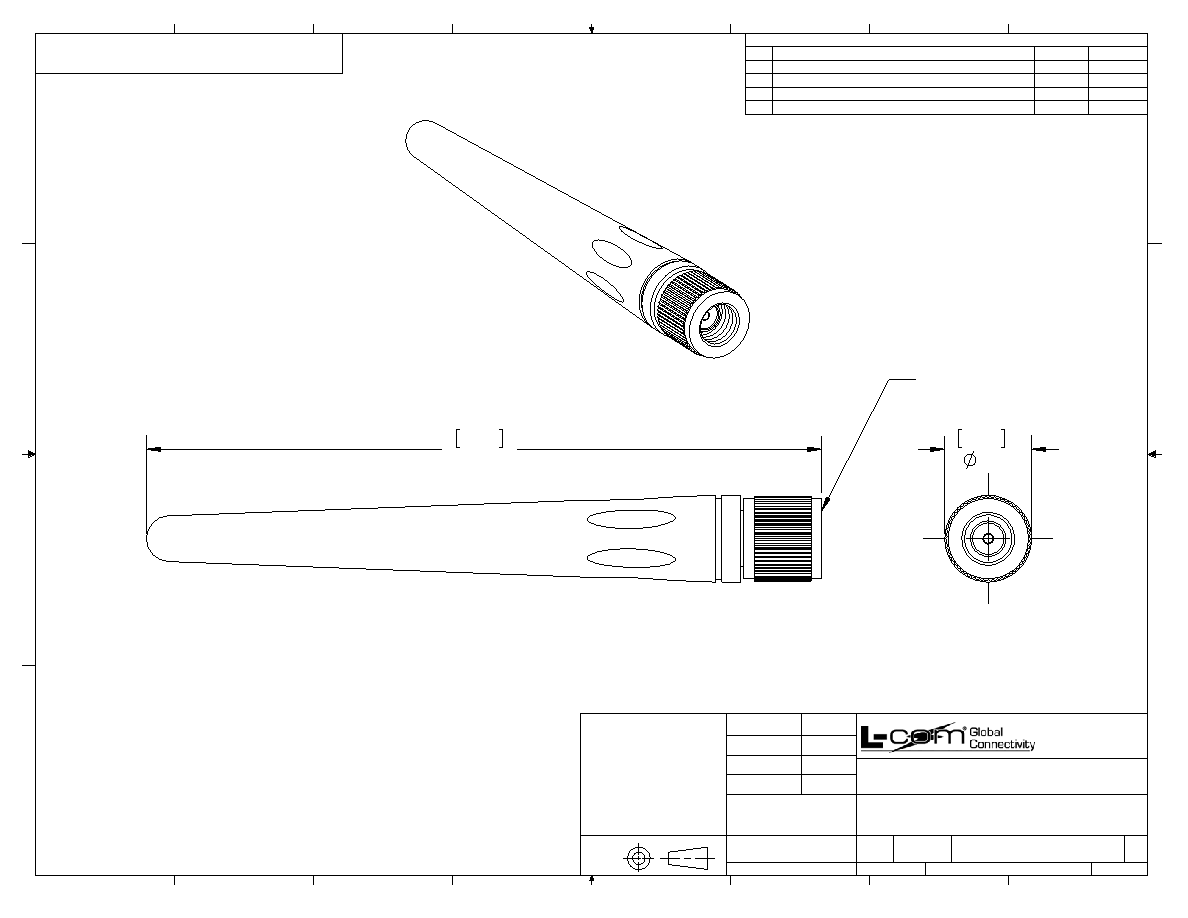

Antenna, Stubby STR, RP SMA Plug

NOTES:

ELECTRICAL:

FREQUENCY RANGE: 2.4 GHz (2.4~2.5GHz)

ELECTRIC WAVE: 1/4, MONOPOLE ANTENNA

V.S.W.R. : <2

IMPEDENCE: 50 Ohm, NOMINAL

GAIN: 2dBi

PACKAGING:

COMPONENT SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE

WITH L-COM SPECIFICATION PKG-00012

BAG LABEL AS PER L-COM SPECIFICATIION LSP-010

RP-SMA

3.13

79.4

.40

10.2
