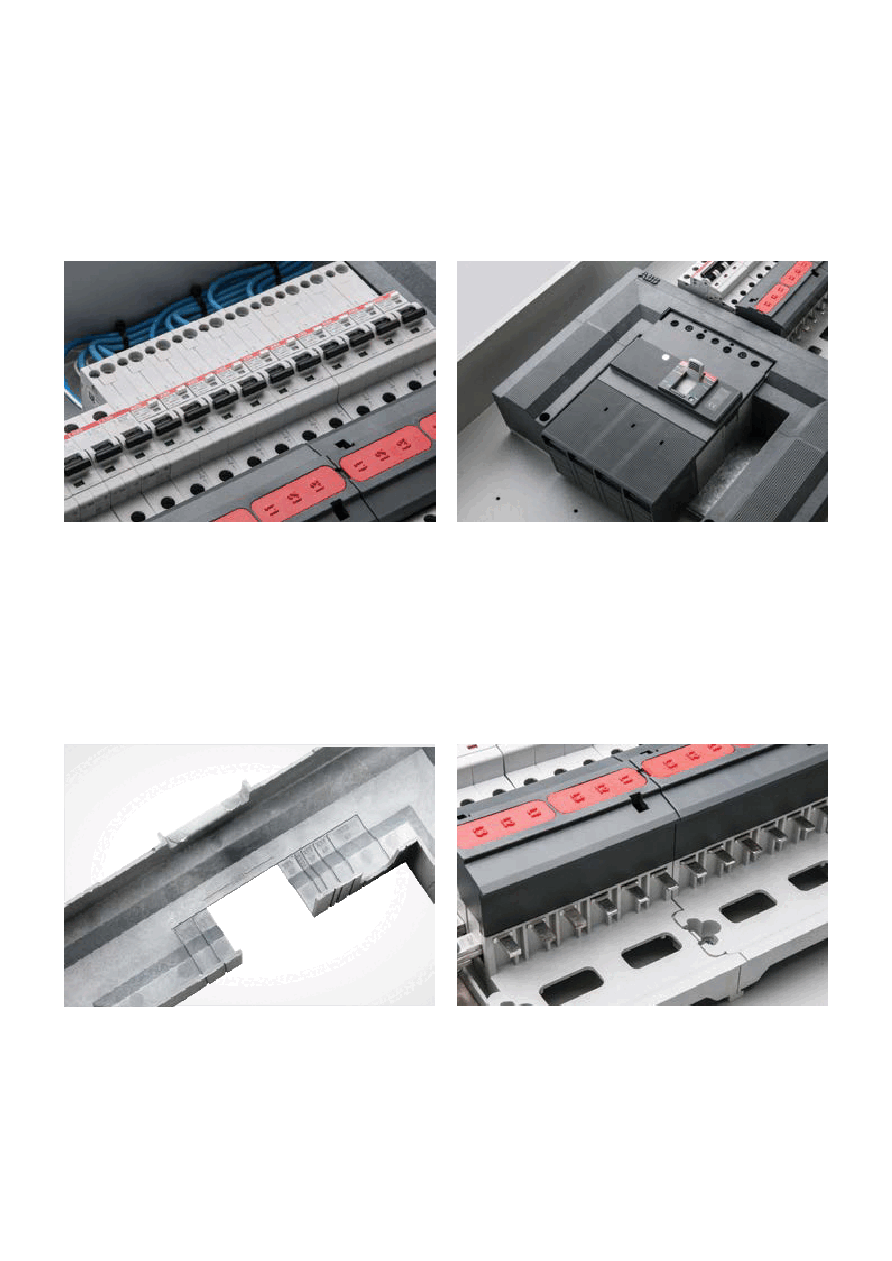

Board width

Protecta Plus has been designed with a width of 450 mm,

this combined with the reduced RCBO height of 115 mm

gives the installer ample cable room either side of the

board.

Incoming shroud

The shroud comes ready to accept a 125A 3P incoming

devices. The easy break technology and clear indication on

the rear allows the user to modify the shroud dependant

upon requirements up to 250A 4P.

One Solution

All Protecta Plus boards come as standard with 250A main

bars. This gives the user a full range from 125A 3P through

to 250A 4P incoming options.

100A Outgoing ways

The first two 3P outgoing ways are fitted with 3 mm branch

copper to allow for 100A MCBs to be fitted. This allows for a

maximum of

2 x 100A 3P or 6 x 100A 1P MCBs per board

removing the need to move up to high performance boards

or panel boards.

—

Protecta Plus

The details make the difference

PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A
