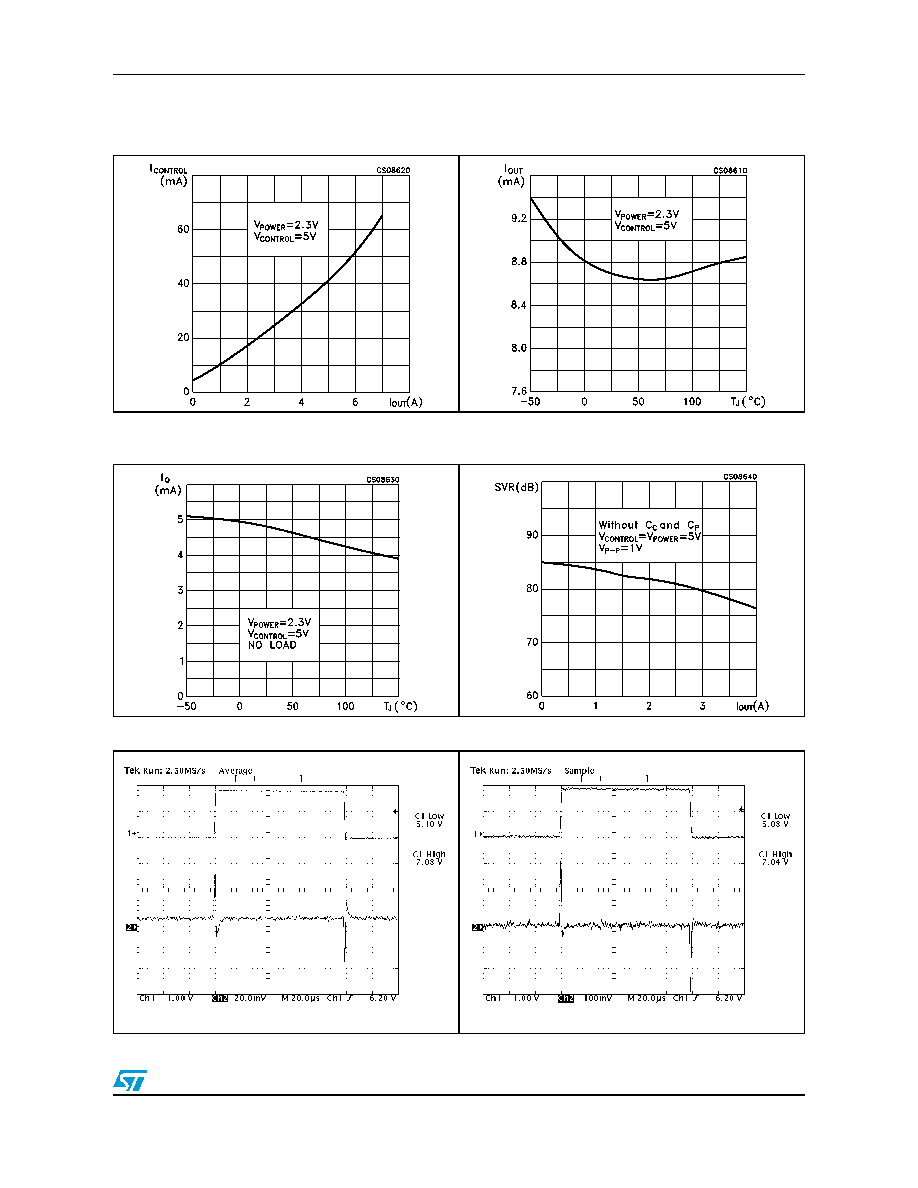

background image
LD1580XX
Typical characteristics
9/15
Figure 10.
VCONTROL pin current vs output
current
Figure 11.
Output current limit vs temperature
Figure 12.
Quiescent current vs temperature
Figure 13.
Supply voltage rejection vs output
current
Figure 14.
Line transient response
Figure 15.
Line transient response
VPOWER=3.3V, VCONTROL=5 to 7V, IOUT=1A
VPOWER=VCONTROL=5 to 7V, IOUT=1A
