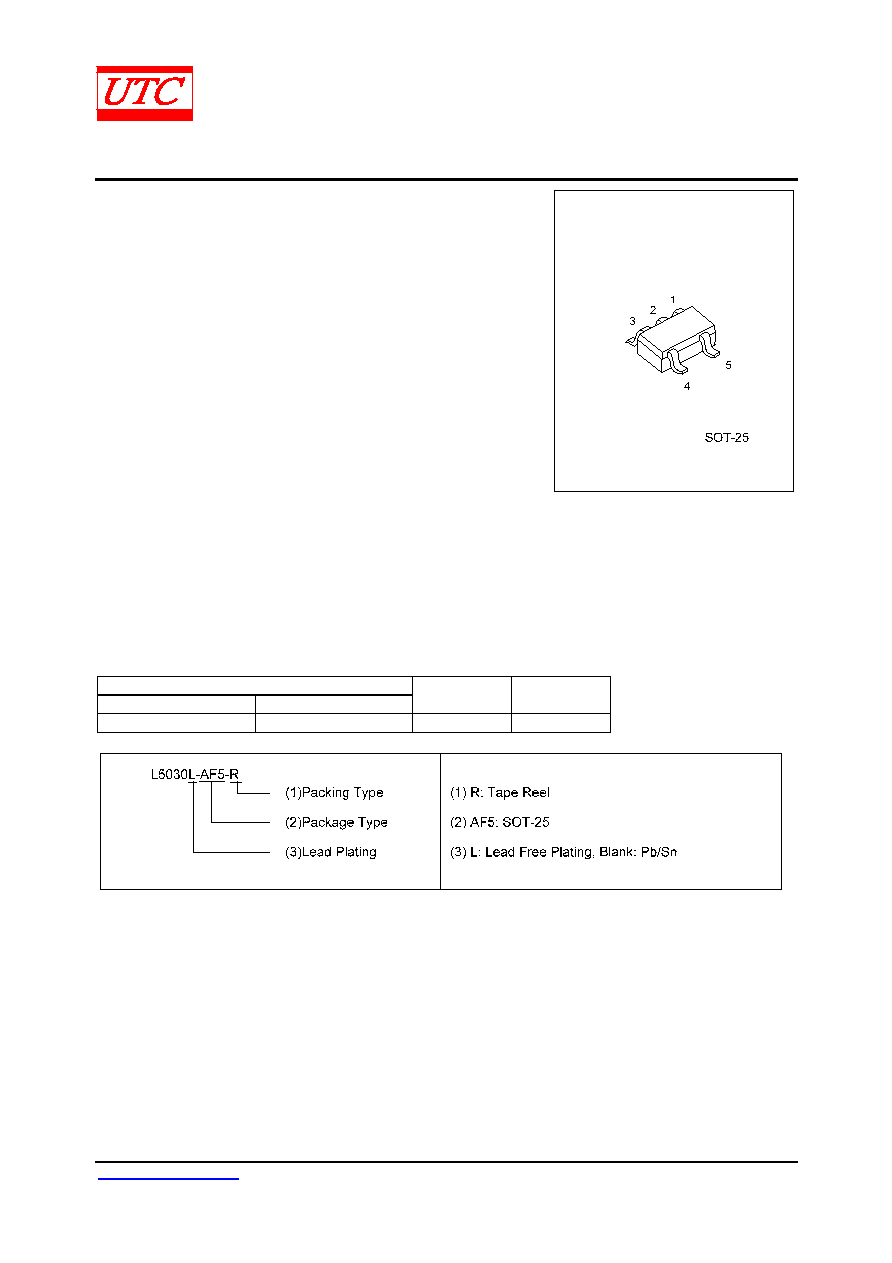

UNISONIC TECHNOLOGIES CO., LTD

L5030

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 7

QW-R125-001.

B

BOOST-UP VOLTAGE

CONVERTER FOR LED

DRIVER

DESCRIPTION

The L5030 is a high efficiency boost converter operating in

current loop, based on a PFM mode to drive LEDs. The

current mode regulation allows the uniform brightness of

LEDs. The wide application of L5030 makes it suitable for

many types of battery applications such as Li-ions, Alkaline,

or Sealed Lead Acid battery. The combination of few external

components and small package size keeps the converter

board area to a minimum in space-restricted applications.

FEATURES

* Inductor based converter brings up to 92% efficiency

* +0.8V to +8.0V input voltage range

* 0.92V guaranteed start up input voltage

* Boost up control using PFM

* Constant output current regulation

*Pb-free plating product number: L5030L

ORDERING INFORMATION

Ordering Number

Normal

Lead Free Plating

Package

Packing

L5030-AF5-R

L5030L-AF5-R

SOT-25

Tape Reel
