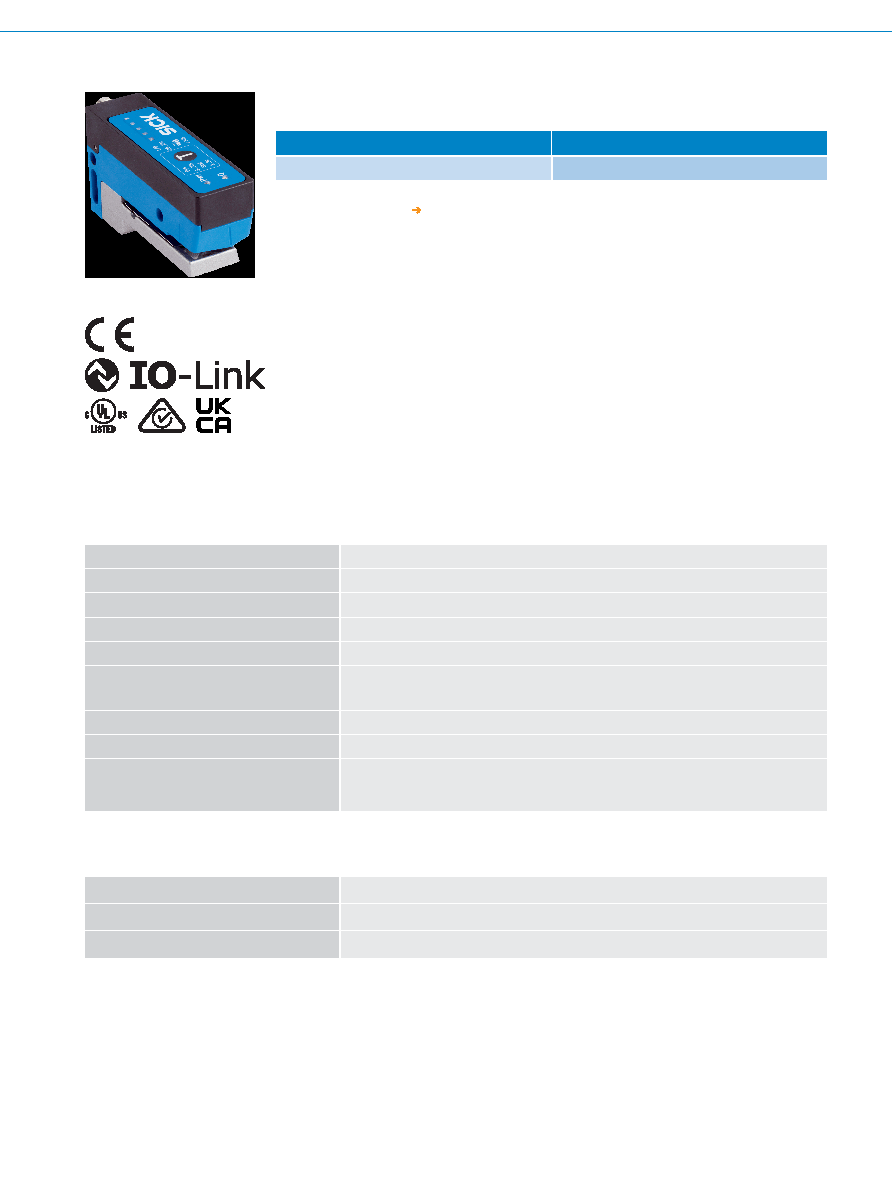

UFS3-37B417 | UFS

FORK SENSORS

Illustration may differ

Ordering information

Type

Part no.

UFS3-37B417

6075473

Other models and accessories

www.sick.com/UFS

Detailed technical data

Features

Functional principle detail

Ultrasonic detection principle

Dimensions (W x H x D)

20 mm x 37.4 mm x 70 mm

Housing design

Fork shaped

Fork width

2.6 mm

Fork depth

42.5 mm

Minimum detectable object (MDO)

Label size: 2 mm 1)

Label gap: 1 mm 1)

Label detection

✔

Adjustment

Teach-in button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic)

Teach-in mode

1-point teach-in

2-point teach-in

Teach-in dynamic

1) Depends on the label thickness.

Mechanics/electronics

Supply voltage

10 V DC ... 30 V DC 1)

Ripple

< 10 % 2)

Current consumption

50 mA 3)

1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.

2) May not exceed or fall below Uv tolerances.

3) Without load.

4) With light/dark ratio 1:1.

5) Signal transit time with resistive load.

6) Output current minimal 0.03 mA.

7) Reference voltage DC 50 V.
