SSM2602

Rev. 0 | Page 11 of 32

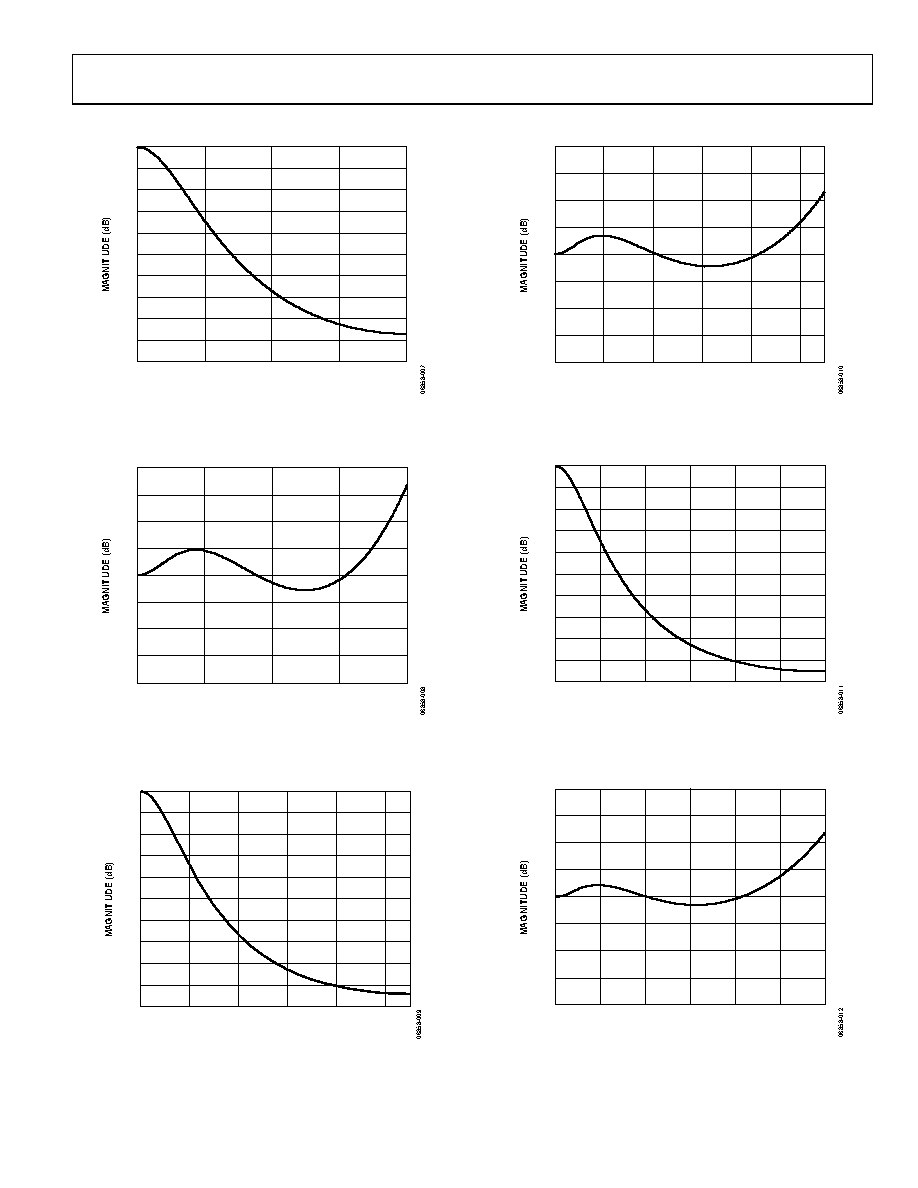

DIGITAL DE-EMPHASIS

FREQUENCY (kHz)

−10

−9

−8

−7

−6

−5

−4

−3

−2

−1

Figure 12. De-Emphasis Frequency Response, Audio Sampling Rate = 32 kHz

FREQUENCY (kHz)

−0.4

−0.3

−0.2

−0.1

0.1

0.2

0.3

0.4

Figure 13. De-Emphasis Error, Audio Sampling Rate = 32 kHz

FREQUENCY (kHz)

816

−10

−9

−8

−7

−6

−5

−4

−3

−2

−1

Figure 14. De-Emphasis Frequency Response, Audio Sampling Rate = 44.1 kHz

FREQUENCY (kHz)

816

−0.4

−0.3

−0.2

−0.1

0.1

0.2

0.3

0.4

Figure 15. De-Emphasis Error, Audio Sampling Rate = 44.1 kHz

FREQUENCY (kHz)

816

−10

−9

−8

−7

−6

−5

−4

−3

−2

−1

Figure 16. De-Emphasis Frequency Response, Audio Sampling Rate = 48 kHz

FREQUENCY (kHz)

816

−0.4

−0.3

−0.2

−0.1

0.1

0.2

0.3

0.4

Figure 17. De-Emphasis Error, Audio Sampling Rate = 48 kHz
