Features

•

STWBC-MC digital controller

•

MP-A15 3-coil array

•

15 W potential power

•

Flexible input voltage: 5 to 20 V from USB-C or DC jack

•

5 W mode when connected to 5 V USB input or DC jack

•

Fixed frequency operation

•

WPC Qi1.2.4 standard certified

•

Robust demodulation algorithm, with triple path (V, I, f)

•

Foreign object detection (FOD)

•

Active presence detection

•

UART protocol to control and monitor the system

•

Complete reference design (evaluation board, schematics, PCB layout, firmware

and tools)

•

2-layer PCB

•

Low standby power consumption

•

Flash memory based

•

CE certified

•

RoHS compliant

•

WEEE compliant

Description

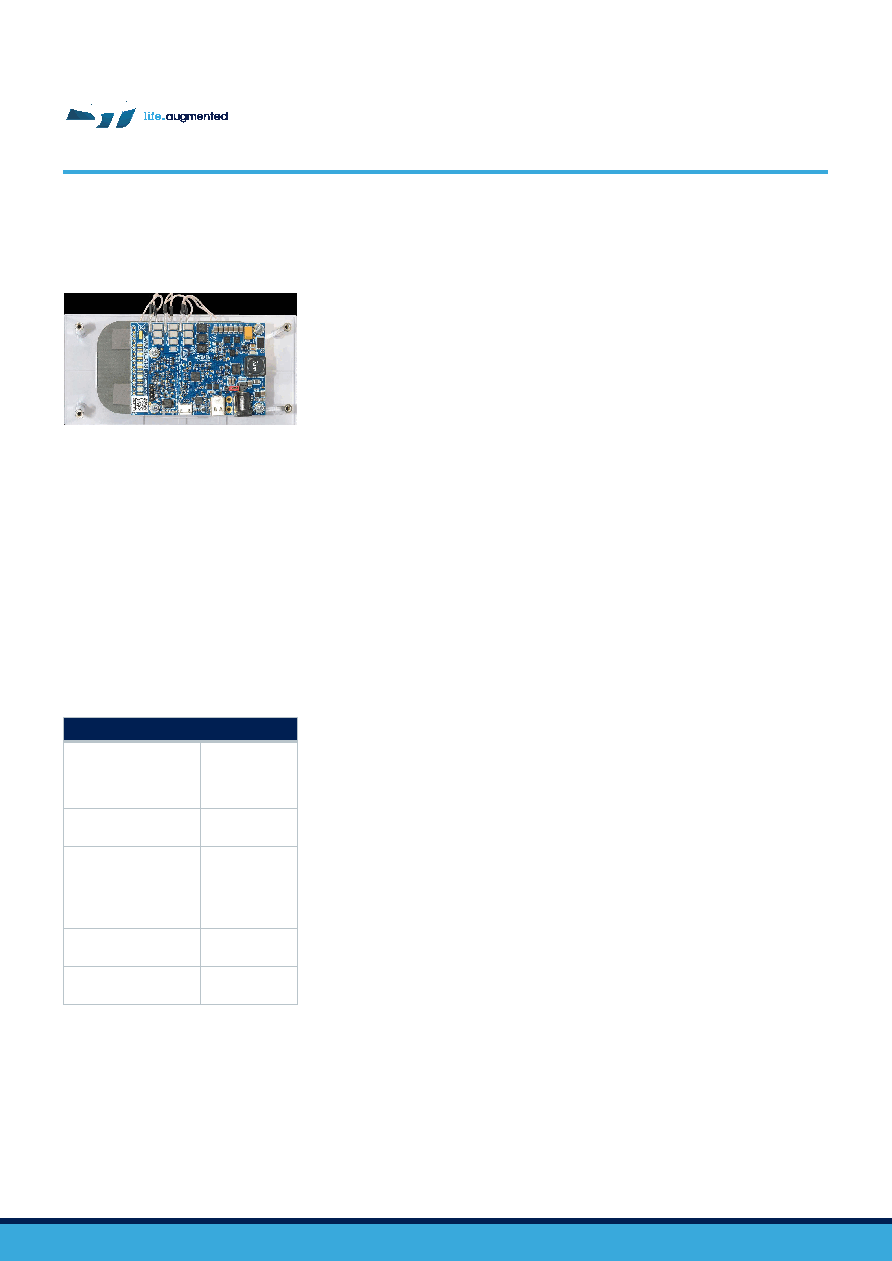

The STEVAL-ISB047V1 wireless battery charger TX evaluation kit consists of the

STEVAL-ISB047V1T evaluation board and STEVAL-WBCDNGV1 USB-UART

dongle. The kit is designed for charging devices such as smartphones or tablets

where high power levels are required.

The evaluation board supports wireless battery charging of Qi-compliant devices up

to 15 W. It also supports proprietary fast charging modes up to 10 W.

The STEVAL-ISB047V1 transmitter is based on the STWBC-MC and features a cost-

effective half bridge topology, offering external interface via UART.

The STEVAL-ISB047V1 evaluation kit is a full solution, complete with boards,

firmware, a GUI for debugging, schematics, layout files and bill of materials.

Tools for STEVAL-ISB047V1 are available on www.st.com, and allow users to access

runtime information such as power delivered, regulation error and protocol status.

Parameters can also be adjusted with these tools.

Product summary

Qi certified 3-coil 15 W

wireless charger TX

evaluation kit based on

STWBC-MC

STEVAL-

ISB047V1

USB-UART dongle

STEVAL-

WBCDNGV1

Digital controller for

wireless battery

chargers transmitters

for Qi multicoil

applications

STWBC-MC

Firmware for STEVAL-

ISB047V1

STSW-

ISB047FW

Stand-alone USB PD

controller

STUSB4500

Qi certified 3-coil 15 W wireless charger TX evaluation kit based on STWBC-MC

STEVAL-ISB047V1

Data brief

DB3701 - Rev 2 - February 2019
