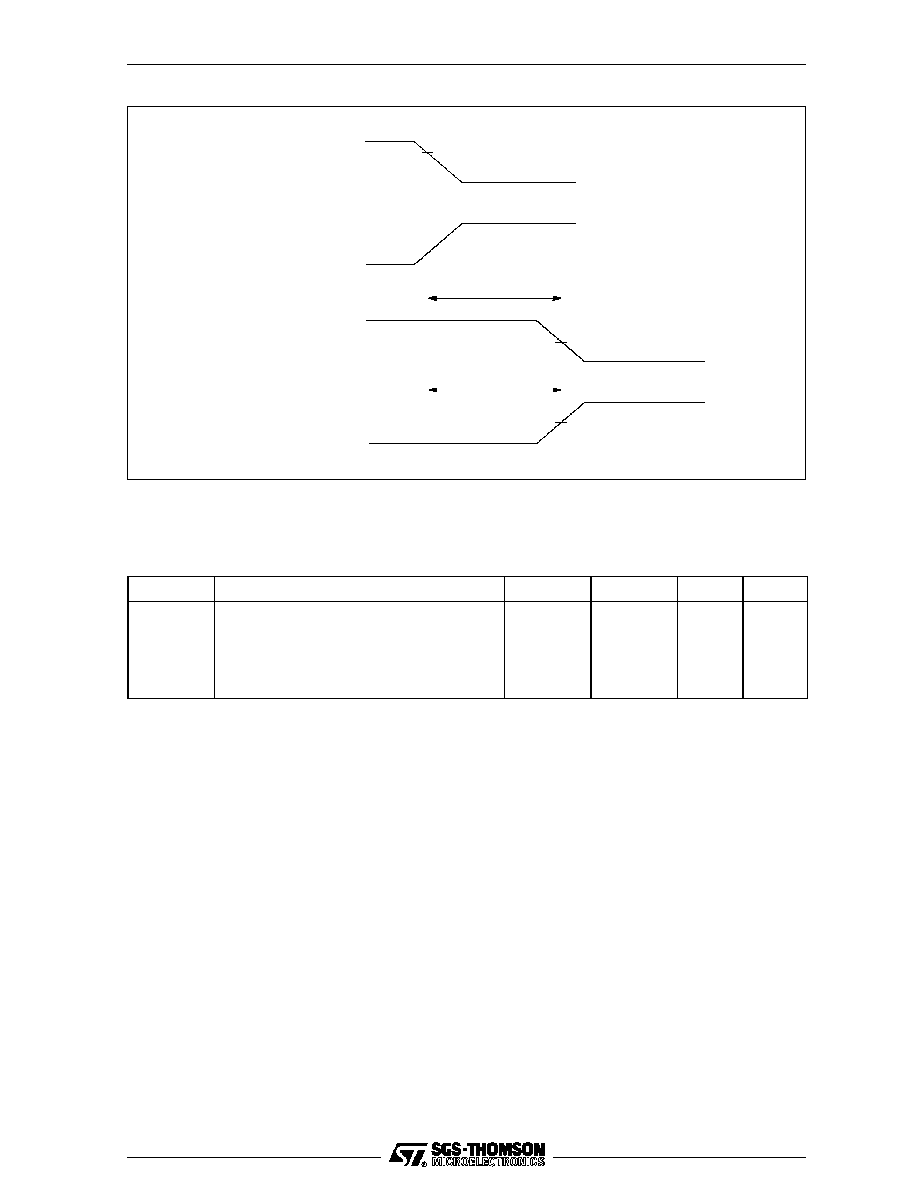

7 Electrical specifications
/30
21
VIH
VIL
1.5V
1.5V
tpHL
tpLH
VDD–1
0V
VDD–1
0V
VDD
0V
VDD
0V
Inputs
Inputs
Outputs
Outputs
Figure 7.2
AC measurements timing waveforms
7.3
AC timing characteristics
SYMBOL
PARAMETER
MIN
MAX
UNITS
NOTES
TDr
Input rising edges
2
20
ns
1, 2, 3
TDf
Input falling edges
2
20
ns
1, 2, 3
TQr
Output rising edges
25
ns
1, 3
TQf
Output falling edges
15
ns
1, 3
Notes
1 Non-link pins; see section on links.
2 All inputs except ClockIn; see section on ClockIn.
3 Guaranteed, but not tested.
Table 7.4
Input and output edges
