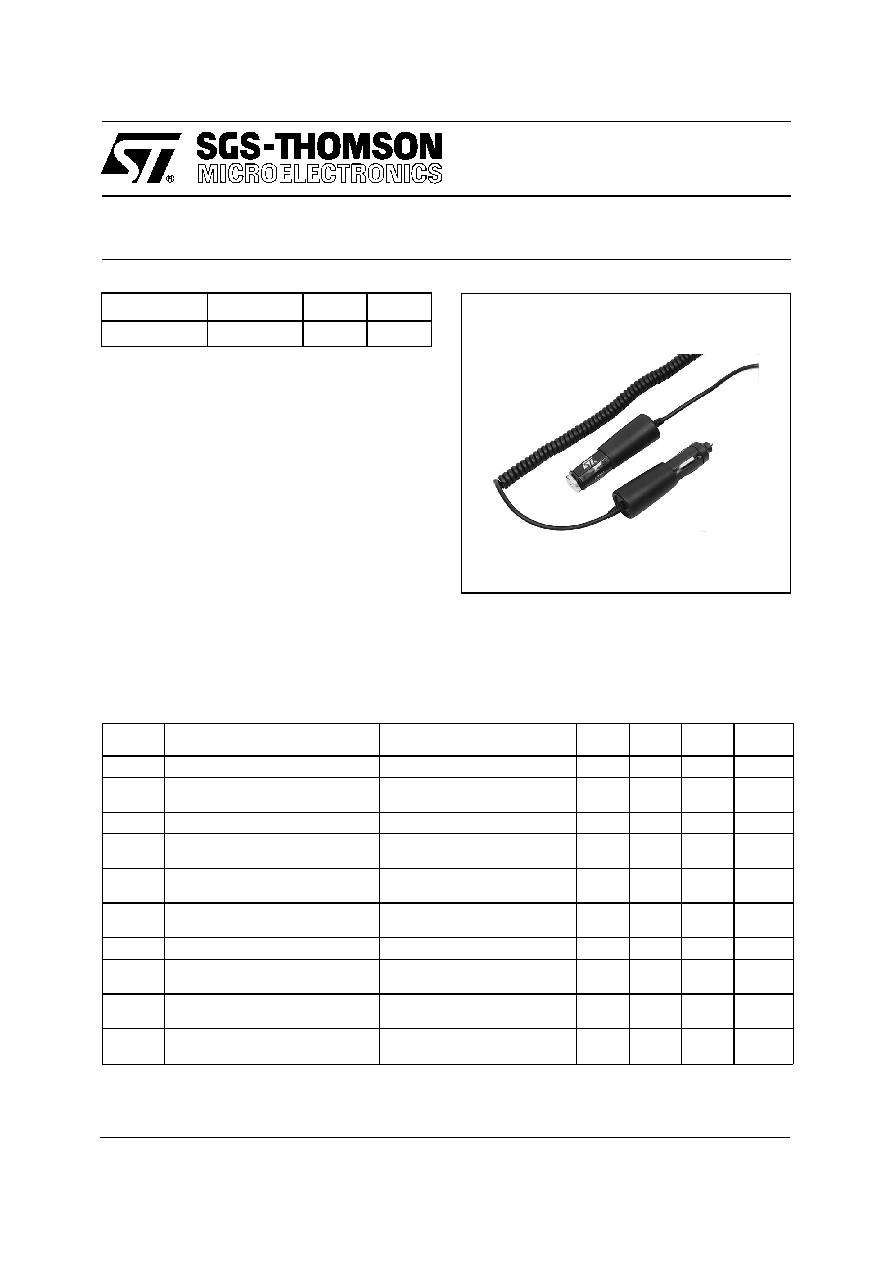

GS-R28.0BE

BATTERY ELIMINATOR

June 1994

1/3

Type

Vi

Vo

Io

GS-R28.0BE

10,5 to 16 V

7,5 V

750 mA

DESCRIPTION

The GS-R28.0BE is a switch mode constant volt-

age BATTERY ELIMINATOR that can deliver an

output voltage of 7.5 V at 0,75 A of DC output

current (Peak output current = 1.8 Ap).

Two versions of the INPUT PLUG ADAPTOR are

available:

WASHER TIP VERSION:

GS-R28.0BE-E (Ordering Number)

SPRING-LOADED TIP VERSION:

GS-R28.0BE-A (Ordering Number)

(See page 2 for mechanical data)

ELECTRICAL CHARACTERISTICS (Tamb = 25

°C unless otherwise specified)

Symbol

Parameter

Test Conditions

Min

Typ

Max

Unit

Vi

Input Voltage

Vo = 7 to 8V

10.5

16

V

liq

Input Quiescent

Current

Vin = 13.2V Io = 0A

20

30

mA

Vo

Output Voltage

Vi = 10.5 to 16V Io = 0 to 1.8Ap

7.0

7.5

8.0

V

Io

Output Current

Continuous output current

Vi = 10.5 to 16V Vo = 7.5V

750

mA

Iop

Peak Output Current

Duration: 0.6 ms every 4.8 ms

Vi = 10.5 to 16V Vo = 7.5V

1.8

Ap

Vor

Output Ripple Voltage

Vi = 10.5 to 16V Vo = 7.5V

Io = 750 mA

100

mVpp

η

Efficiency

Vi = 13.2V Io = 750 mA

70

%

fs

Switching Frequency

Vin = 10.5 to 16V

Io = 0A to 1.8 Ap

100

kHz

Top

Operating Ambient

Temperature Range

– 20

+60

°C

Tstg

Storage Temperature

Range

– 25

+85

°C
