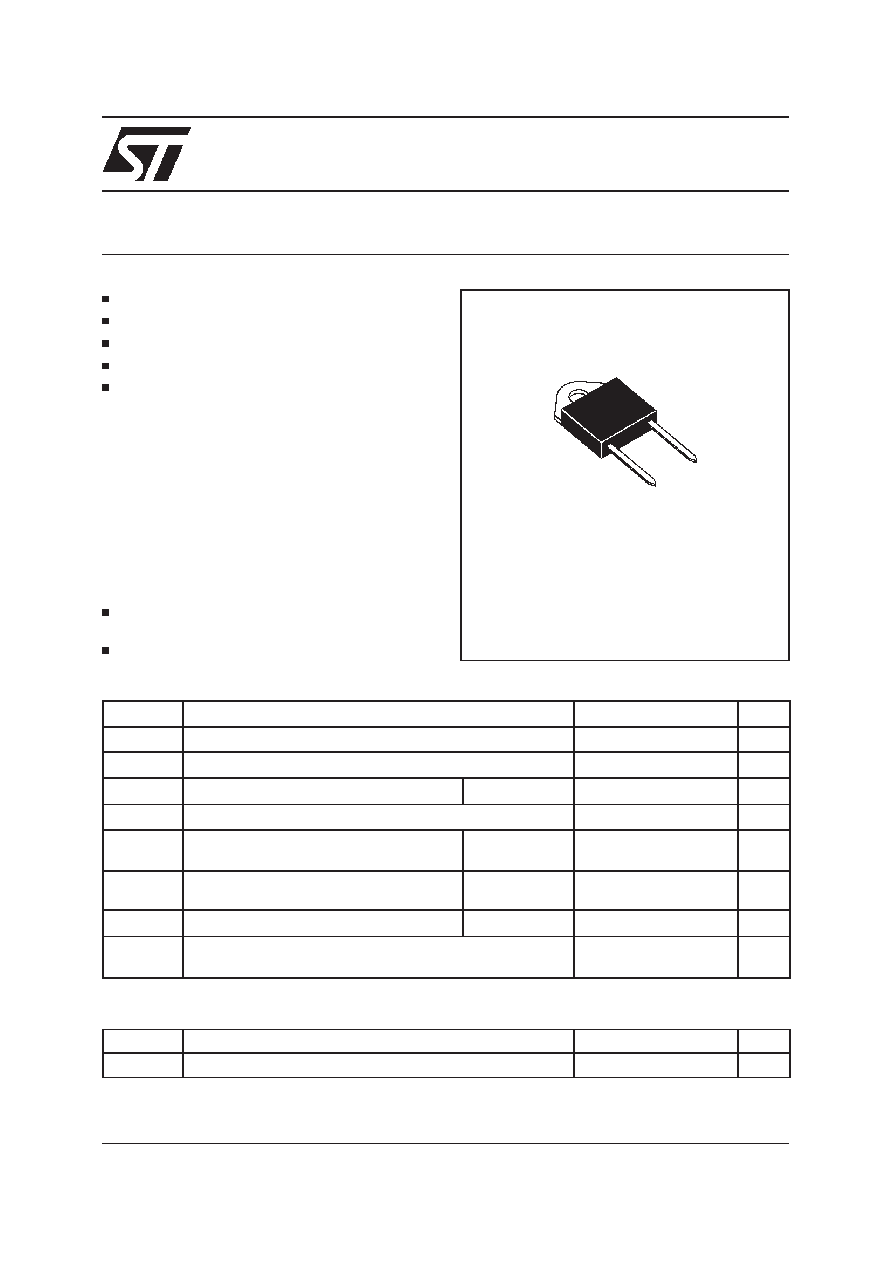

BYT 30PI-1000
FAST RECOVERY RECTIFIER DIODE
VERY HIGH REVERSE VOLTAGE CAPABILITY
VERY LOW REVERSE RECOVERY TIME
VERY LOW SWITCHING LOSSES
LOW NOISE TURN-OFF SWITCHING
INSULATED: Capacitance 15pF
SUITABLE APPLICATIONS
FREE WHEELING DIODE IN CONVERTERS
AND MOTOR CONTROL CIRCUITS
RECTIFIER IN S.M.P.S.
October 1999 - Ed: 2A
1/5
Isolated
DOP3I
(Plastic)
Insulating voltage 2500 VRSM
Symbol
Parameter
Value
Unit
VRRM
Repetitive Peak Reverse Voltage
1000
V
VRSM
Non Repetitive Peak Reverse Voltage
1000
V
IFRM
Repetive Peak Forward Current
tp
≤ 10µs
375
A
IF (RMS)
RMS Forward Current
70
A
IF(AV)
Average Forward Current
Tc =50
°C
δ = 0.5
30
A
IFSM
Surge non Repetitive Forward Current
tp = 10ms
Sinusoidal
200
A
P
Power Dissipation
Tc =50
°C60
W
Tstg
Tj
Storage and Junction Temperature Range
- 40 to +150
°C
ABSOLUTE MAXIMUM RATINGS (limiting values)
Symbol
Parameter
Value
Unit
Rth (j - c)
Junction-case
1.6
°C/W
THERMAL RESISTANCE
K
A
