ISL854102
FN8870 Rev.1.00
Page 12 of 21
Mar 15, 2019

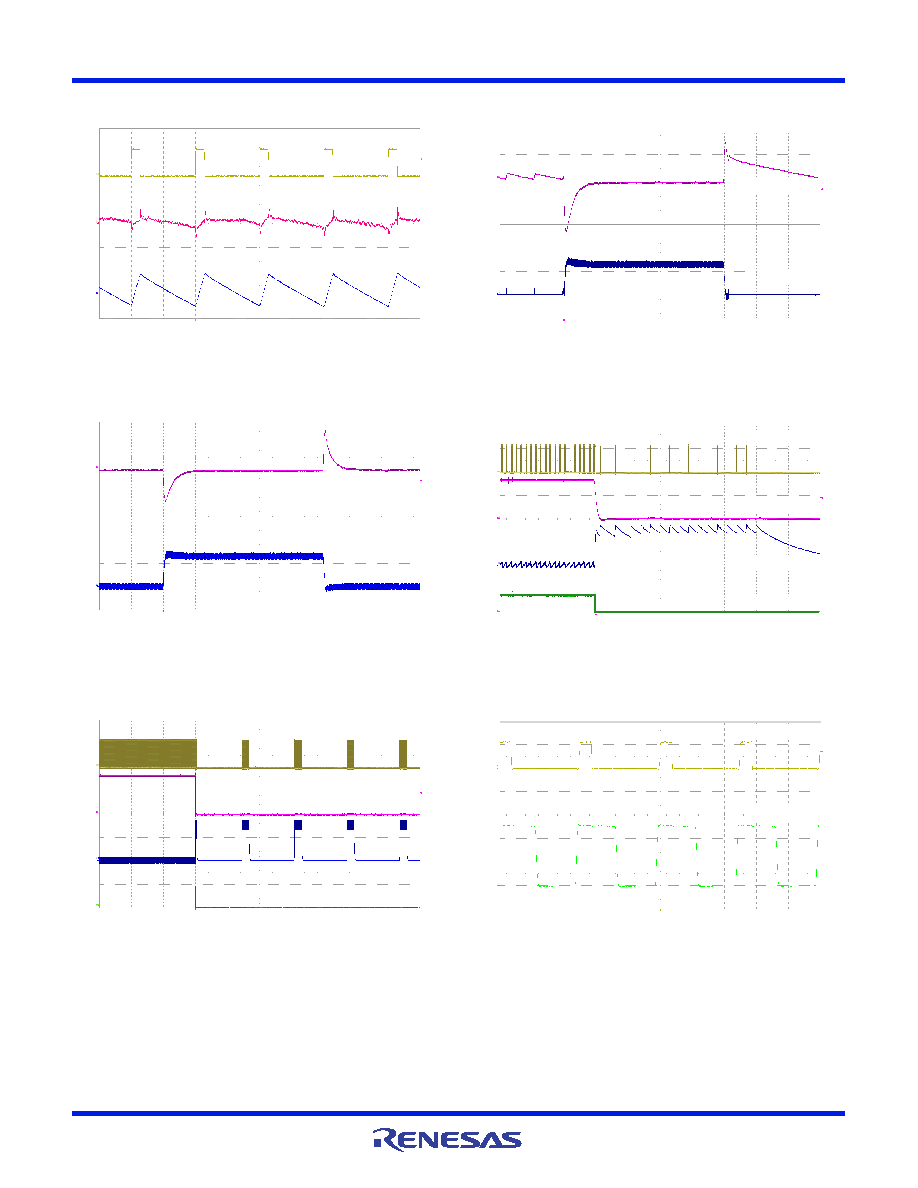

FIGURE 24. LIGHT LOAD OPERATION AT 20mA
FIGURE 25. LOAD TRANSIENT, PFM
FIGURE 26. LOAD TRANSIENT, PWM
FIGURE 27. OVERCURRENT PROTECTION, PWM
FIGURE 28. OVERCURRENT PROTECTION HICCUP, PWM
FIGURE 29. SYNC AT 1.2A LOAD, PWM
Measurements f
SW = 500kHz, VIN = 24V, VOUT = 3.3V, TA = +25°C (Continued)
LX 20V/DIV
IL 200mA/DIV
1µs/DIV
VOUT 10mV/DIV
IL 1A/DIV
200µs/DIV
VOUT 100mV/DIV
IL 1A/DIV
200µs/DIV
VOUT 100mV/DIV
LX 20V/DIV
VOUT 2V/DIV
IL 1A/DIV
PG 5V/DIV
50µs/DIV
LX 20V/DIV
VOUT 2V/DIV
IL 1A/DIV
PG 5V/DIV
10ms/DIV
LX 20V/DIV
SYNC 2V/DIV
200ns/DIV
