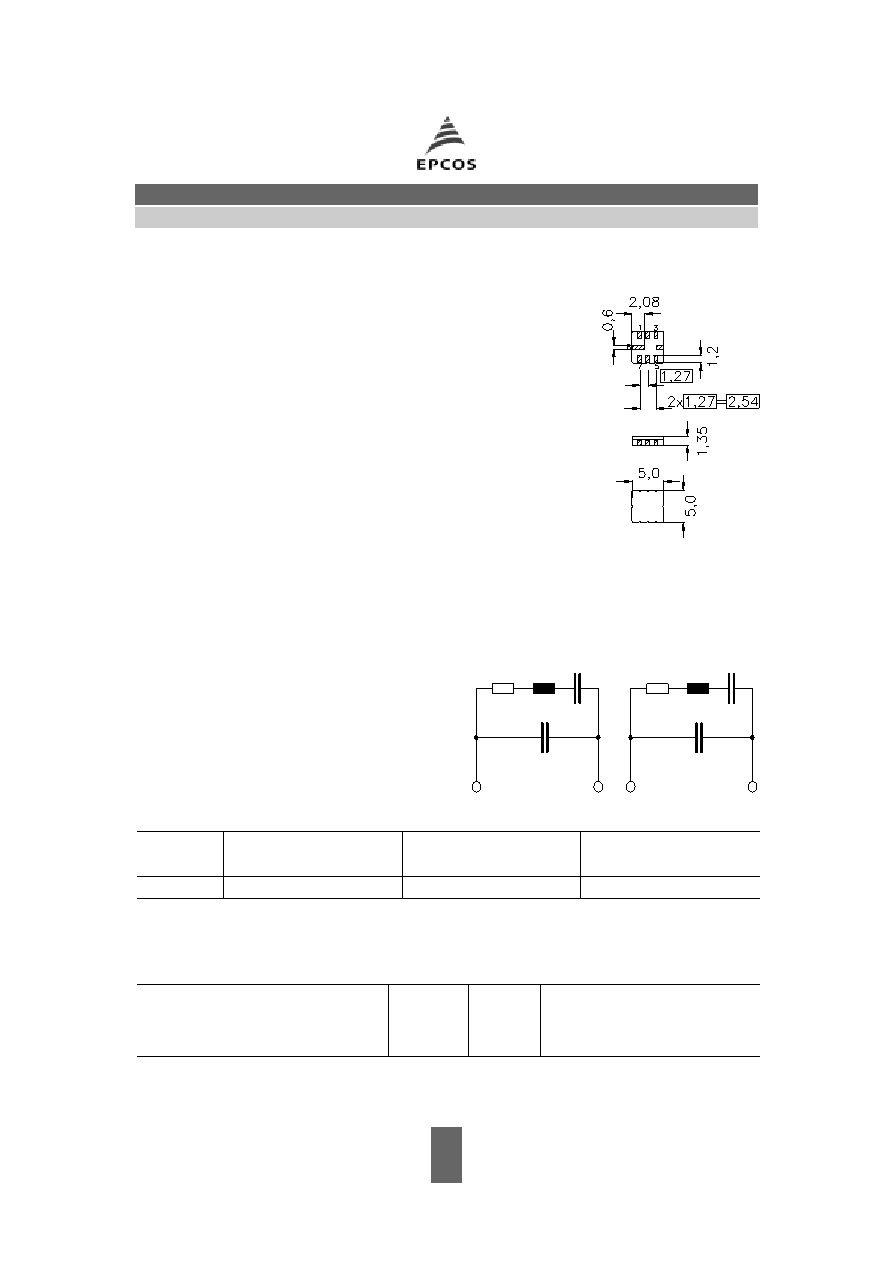

Mar 03, 2004

SAW Components

R 771

314,875 / 315,125 MHz

Resonator

Data Sheet

Ceramic package QCC8C

Features

1-port resonator (2 Resonators in 1 housing)

Provides reliable, fundamental mode, quartz fre-

quency stabilization i.e. in transmitters or local

oscillators

Protection layer: Protec

Terminals

Ni, gold plated

Dimensions in mm, approx. weight 0,1 g

Pin configuration

Input Reso 1

Input Reso 2

Output Reso 1

Output Reso 2

4,8

Ground (case)

2,6

float

Electrostatic Sensitive Device (ESD)

Type

Ordering code

Marking and Package

according to

Packing

according to

R 771

B39311-R 771-U310

C61157-A7-A56

F61074-V8169-Z000

Maximum ratings

Operable temperature range

–45/+120

˚C

Storage temperature range

Tstg

–45/+120

˚C

DC voltage

VDC

between any terminals

Source power

dBm

C02

C01

R1 L1

R2 L2
