PowerPC 440SPe Embedded Processor

AMCC Proprietary

Revision 1.23 - Sept 21, 2006

Preliminary Data Sheet

The following example shows the timing relationship between SDRAM DDR Data at the input pin and the store of

the Data in stage 1.

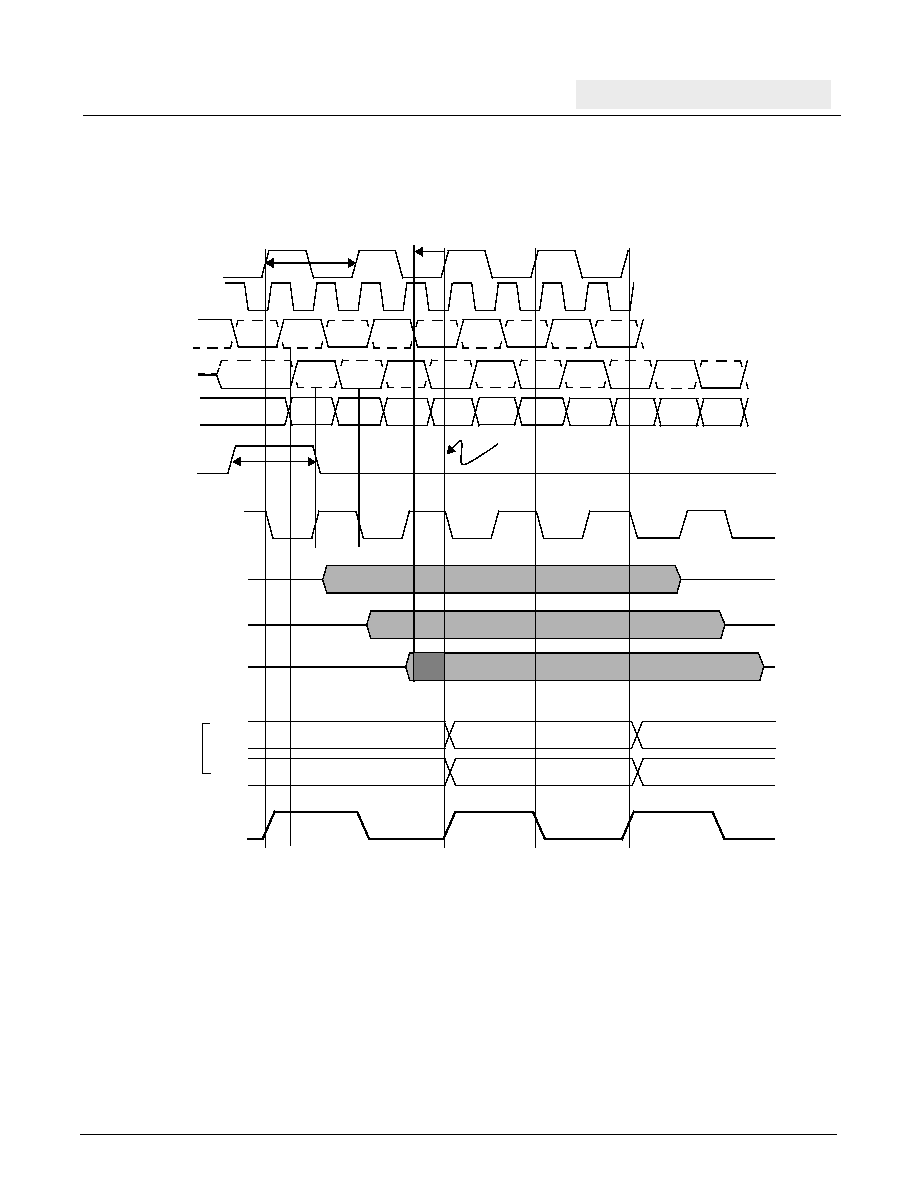

Figure 11. DDR SDRAM Read Cycle Timing—Example

DQS at

PLB 1X Clock

Data at Pin

High

Low

Feedback

Data Out Stage 2

DDR 1X Clock

DDR 2X Clock

Memclk (Diff.)

Data Out Stage 1 (0)

Delayed DQS

Data out Stage 1 (2)

Data Out Stage 1 (1)

Output

1X DDR Clk cycle

MemCntl Pin

Valid

Store 1st Data in Stage 2

Oversampling Guard Band
