ADL5906ACPZN-R7 Folha de dados(PDF) 26 Page - Analog Devices

Nome de Peças ADL5906ACPZN-R7
Descrição Electrónicos  10 MHz to 10 GHz, 67 dB TruPwr Detector
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADL5906ACPZN-R7 Folha de dados(HTML) 26 Page - Analog Devices

Back Button ADL5906ACPZN-R7 Datasheet HTML 22Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 23Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 24Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 25Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 26Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 27Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 28Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 29Page - Analog Devices ADL5906ACPZN-R7 Datasheet HTML 30Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 26 / 30 page
background image
Data Sheet
ADL5906
THEORY OF OPERATION
analog.com
Rev. B | 26 of 30

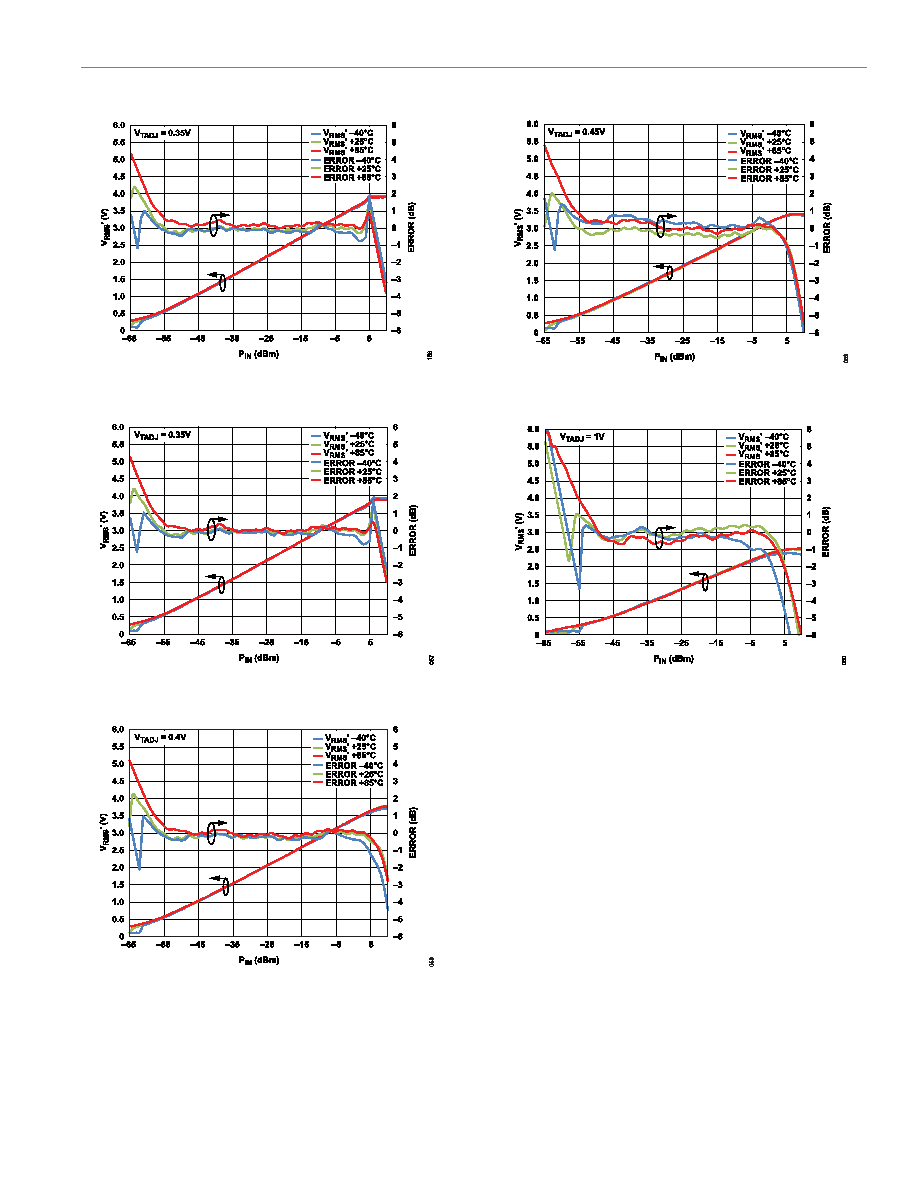

Figure 58. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 1900 MHz Using VTEMP Intercept Compensation
Figure 59. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 2140 MHz using VTEMP Intercept Compensation
Figure 60. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 2600 MHz Using VTEMP Intercept Compensation
Figure 61. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 3500 MHz Using VTEMP Intercept Compensation
Figure 62. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 5800 MHz Using VTEMP Intercept Compensation
