ADRF5545ABCPZN-R7 Folha de dados(PDF) 11 Page - Analog Devices

Nome de Peças ADRF5545ABCPZN-R7
Descrição Electrónicos  Dual-Channel, 2.4 GHz to 4.2 GHz Receiver Front End
PDF  20 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADRF5545ABCPZN-R7 Folha de dados(HTML) 11 Page - Analog Devices

Back Button ADRF5545ABCPZN-R7 Datasheet HTML 7Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 8Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 9Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 10Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 11Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 12Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 13Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 14Page - Analog Devices ADRF5545ABCPZN-R7 Datasheet HTML 15Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 11 / 20 page
background image
Data Sheet
ADRF5545A
Rev. B | Page 11 of 20
2.5
0
2.4
4.2
FREQUENCY (GHz)
0.5
1.0
1.5
2.0
2.6
2.8
3.0
3.2
3.6
3.4
3.8
4.0
–40°C
+25°C
+105°C

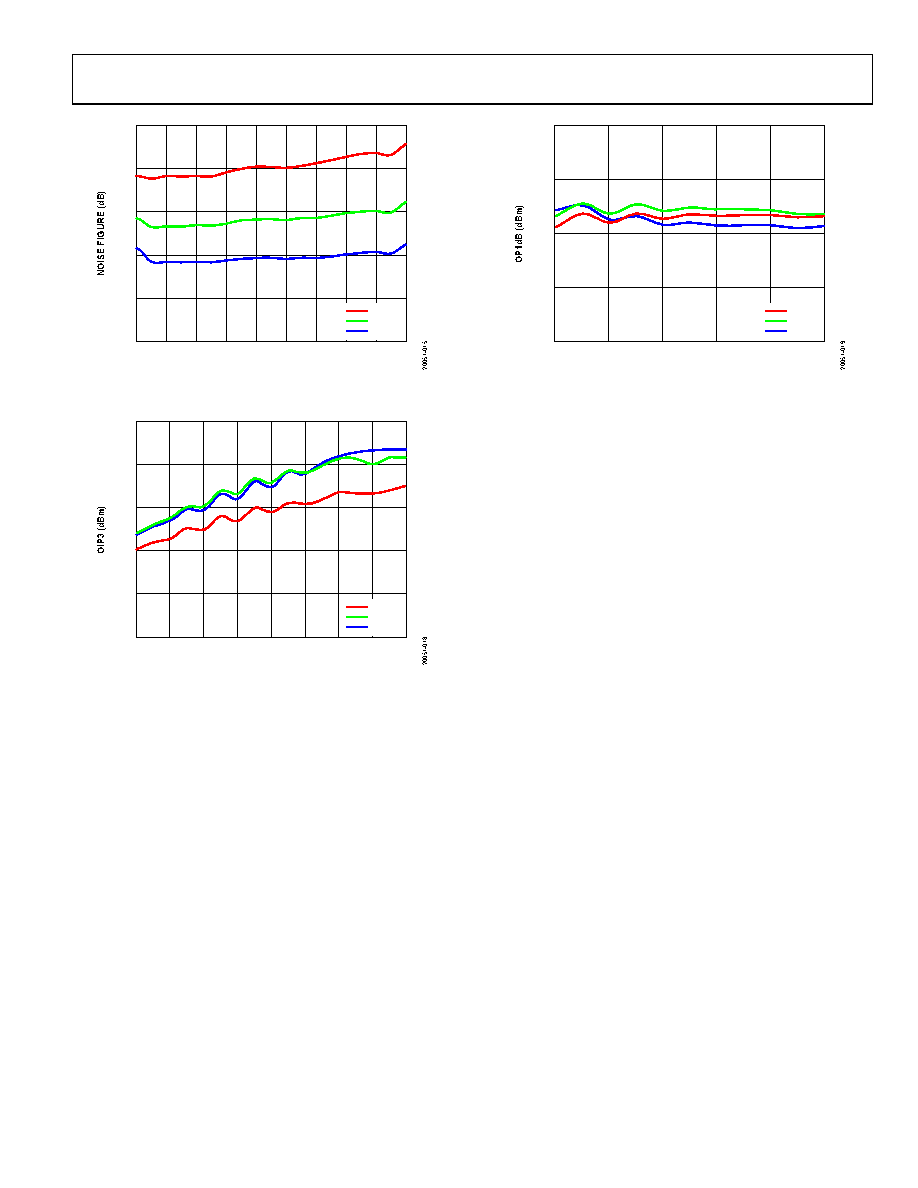

Figure 20. Noise Figure vs. Frequency at Various Temperatures
