Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 20 of 26

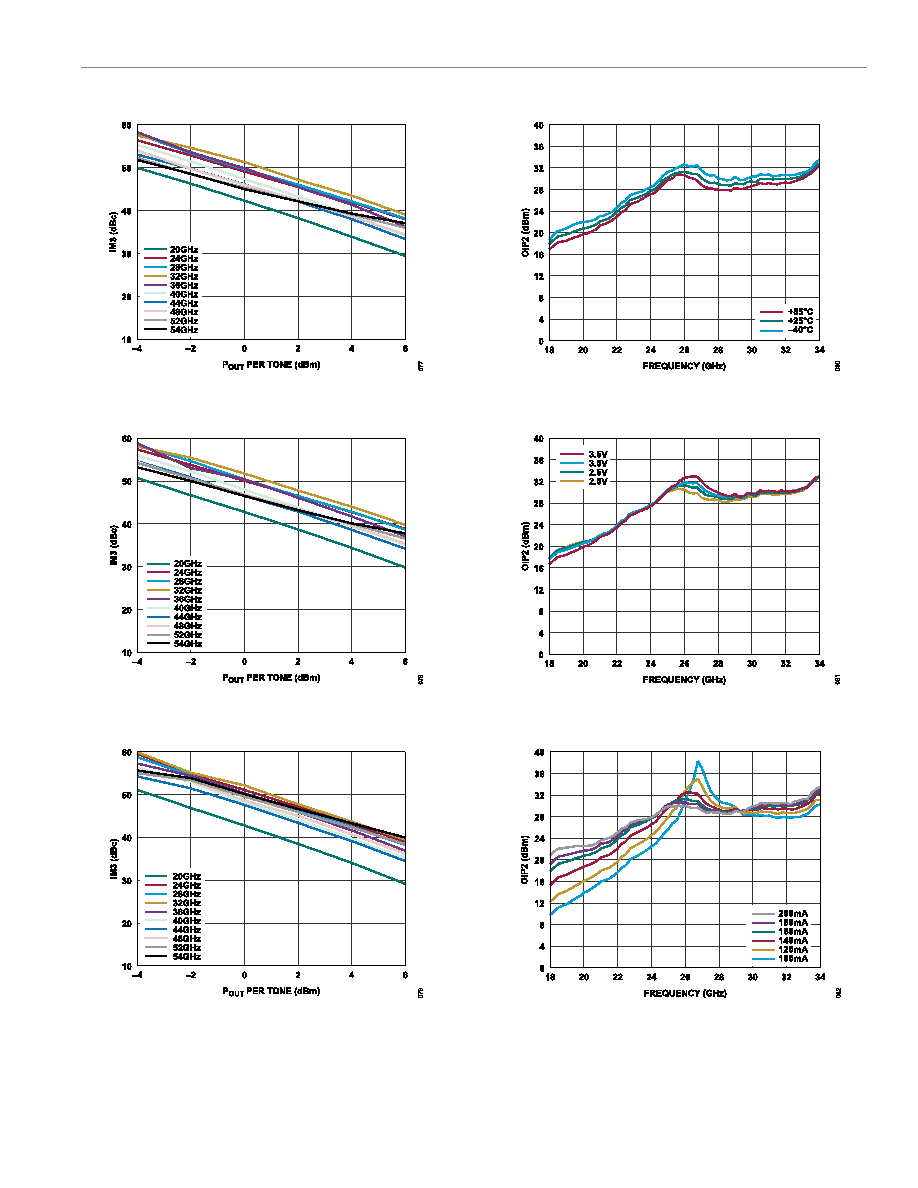

Figure 77. IM3 vs. POUT per Tone for Various Frequencies,
VDD = 2.5 V, IDQ = 160 mA
Figure 78. IM3 vs. POUT per Tone for Various Frequencies,
VDD = 3 V, IDQ = 160 mA
Figure 79. IM3 vs. POUT per Tone for Various Frequencies,
VDD = 3.5 V, IDQ = 160 mA
Figure 80. OIP2 vs. Frequency for Various Temperatures,
POUT per Tone = 0 dBm, VDD = 2.5 V, IDQ = 160 mA
Figure 81. OIP2 vs. Frequency for Various VDD Values,
POUT per Tone = 0 dBm, IDQ = 160 mA
Figure 82. OIP2 vs. Frequency for Various IDQ Values, POUT per Tone = 0 dBm,
VDD = 2.5 V
