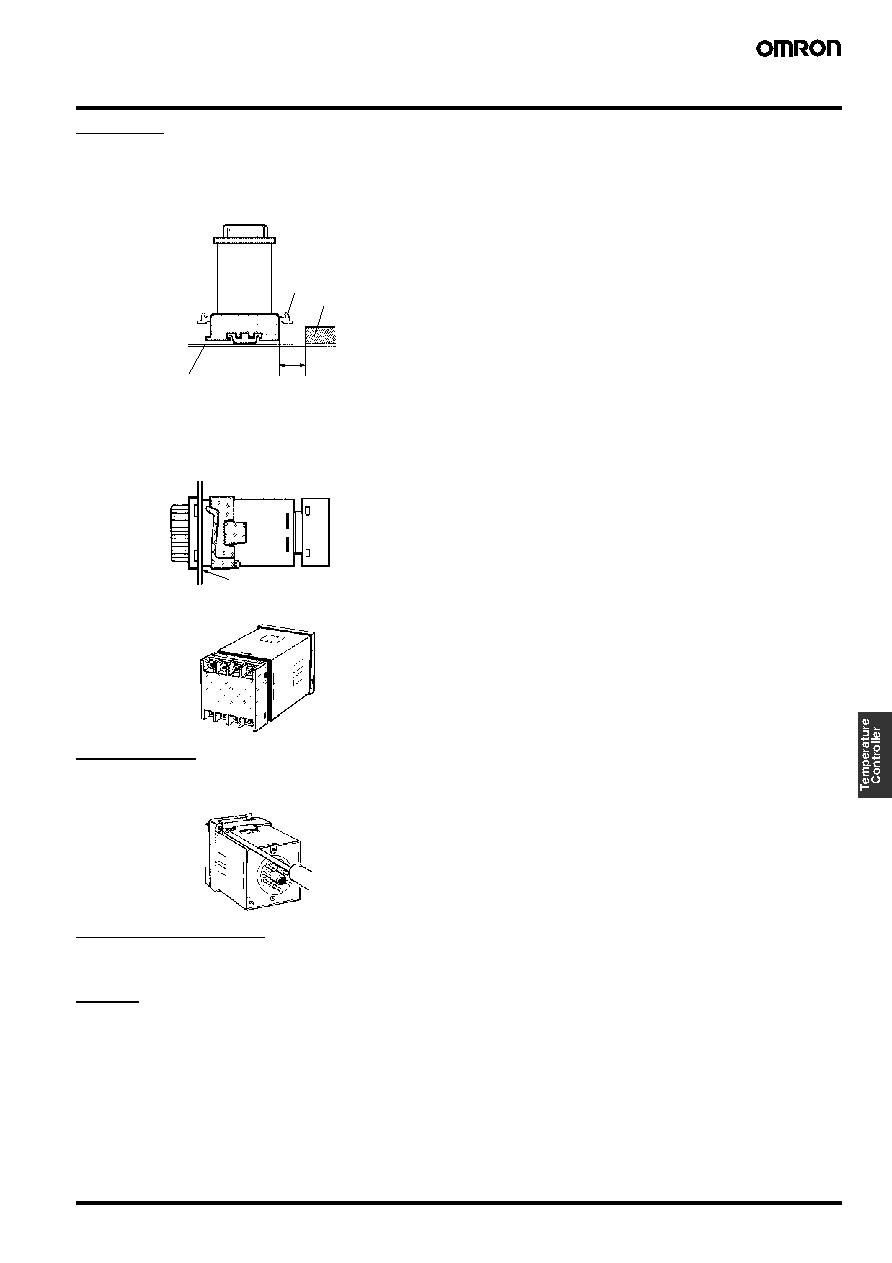

Precautions

Mounting

Track Mounting (E5C2 with P2CF-08)

When mounting two or more E5C2 models with track-mounting sock-

ets, leave a space of approximately 20 mm on both sides of the sock-

ets where hooks are located.

Flush Mounting

Insert E5C2 into the square hole of the panel and insert an adapter

from the back so that there will be no space between E5C2 and the

panel. Then, secure the E5C2 with a screw.

The P3G-08 can be wired in the same way as the P2CF-08.

Dismounting

If flush mounted, loosen the screw of the adapter and disengage the

hooks for dismounting.

Temperature Setting

Do not turn the temperature setting knob of the E5C2 with excessive

force, otherwise the stopper of the knob may break.

Others

Do not remove the housing of the E5C2, otherwise the housing may

break.

To clean the surface of the E5C2, use a soft cloth wet with neutral

detergent or alcohol. Do not use any organic solvent, such as paint

thinner or benzine, strong acid or strong alkali to clean the surface of

the E5C2, otherwise the surface of the E5C2 will become damaged.

20

P2CF-08

Panel

Hook

Duct

Tightening screw
