Data Sheet
ADPA7002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 11 of 20

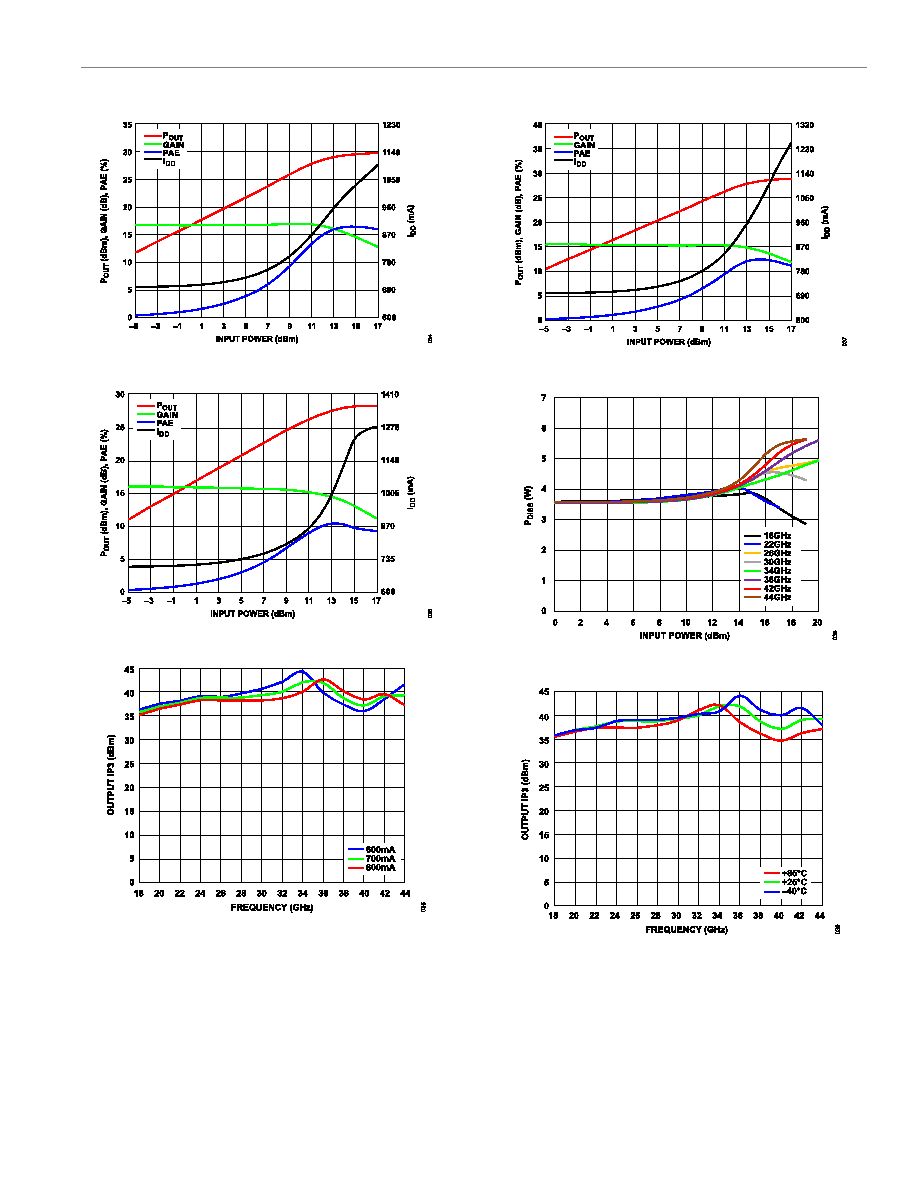

Figure 34. POUT, Gain, PAE, and IDD vs. Input Power, Frequency = 34 GHz
Figure 35. POUT, Gain, PAE, and IDD vs. Input Power, Frequency = 42 GHz
Figure 36. Output IP3 vs. Frequency for Various Drain Currents, POUT per
Tone = 12 dBm
Figure 37. POUT, Gain, PAE, and IDD vs. Input Power, Frequency = 38 GHz
Figure 38. PDISS vs. Input Power, TA = 85°C
Figure 39. Output IP3 vs. Frequency for Various Temperatures, POUT per Tone
= 12 dBm, IDD = 700 mA
