Data Sheet
ADA4511-2
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
analog.com
Rev. A | 7 of 28

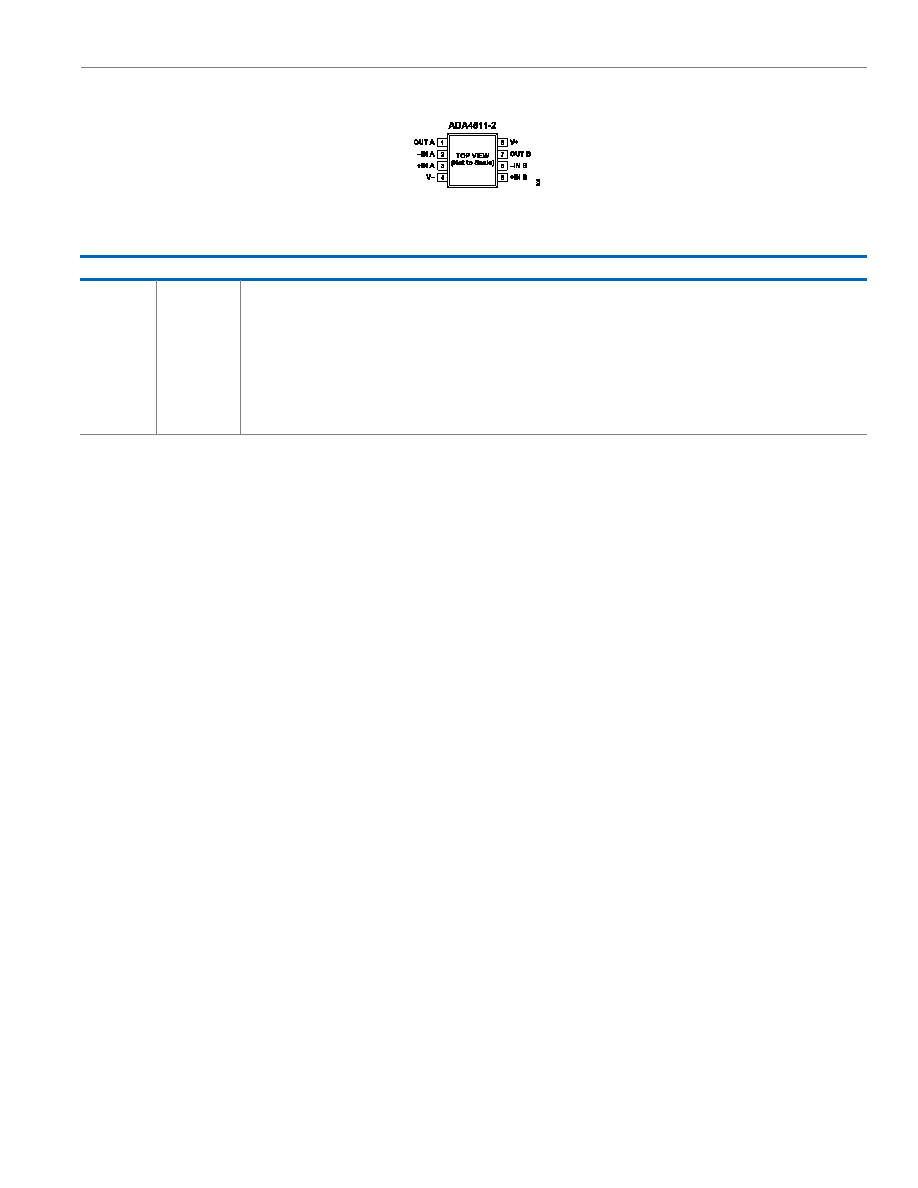

Figure 2. ADA4511-2 8-Lead SOIC_N and 8-Lead MSOP Pin Configuration
Table 5. Pin Function Descriptions, 8-Lead SOIC_N and 8-Lead MSOP
Pin Number
Mnemonic
Description
1
OUT A
Output, Channel A.
2
−IN A
Inverting Input, Channel A.
3
+IN A
Noninverting Input, Channel A.
4
V−
Negative Supply Voltage.
5
+IN B
Noninverting Input, Channel B.
6
−IN B
Inverting Input, Channel B.
7
OUT B
Output, Channel B.
8
V+
Positive Supply Voltage.
