Data Sheet
ADL8101
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 35

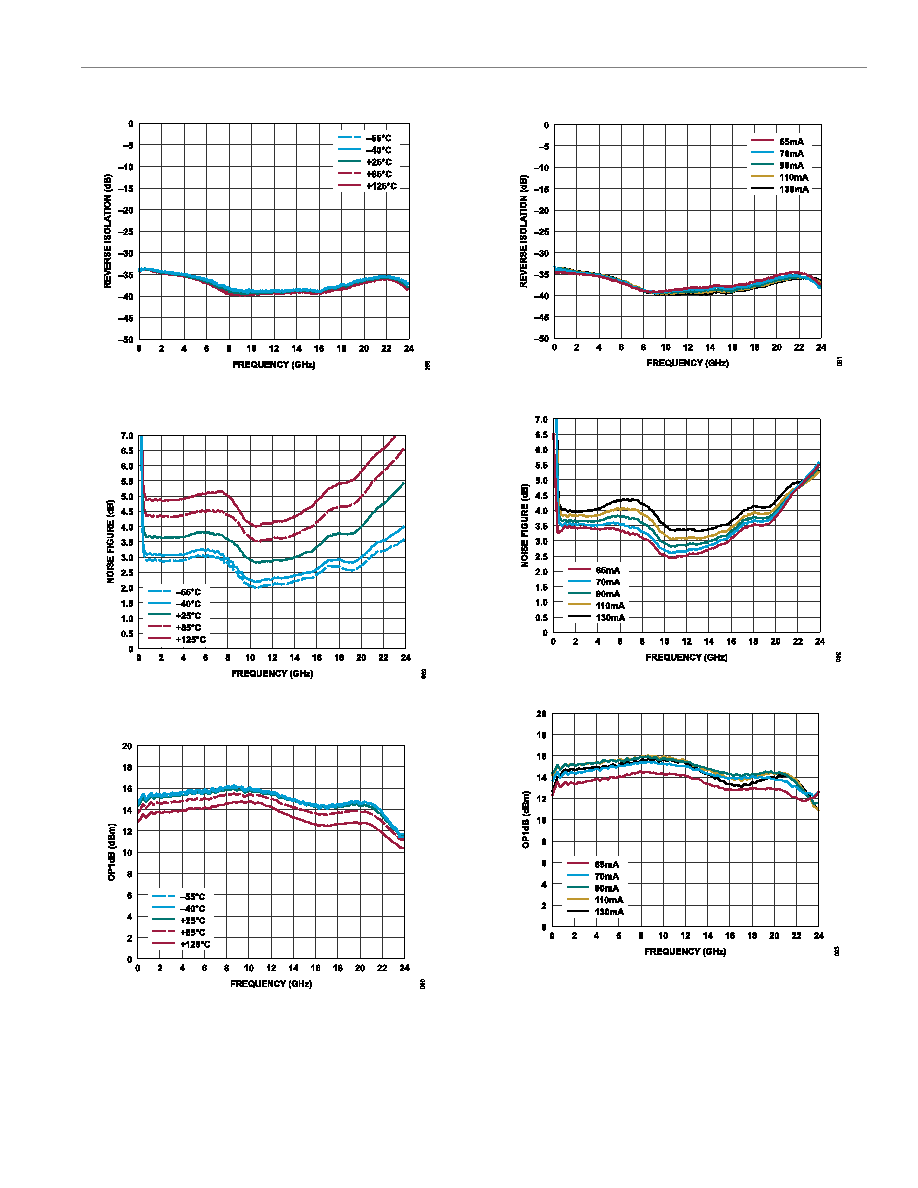

Figure 88. Reverse Isolation vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 89. Noise Figure vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 90. OP1dB vs. Frequency for Various Temperatures,
IDQ = 90 mA, and RBIAS = 715 Ω
Figure 91. Reverse Isolation vs. Frequency for Various IDQ Values
Figure 92. Noise Figure vs. Frequency for Various IDQ Values
Figure 93. OP1dB vs. Frequency for Various IDQ Values
