MPC5553 Microcontroller Data Sheet, Rev. 2.0
Electrical Characteristics
Freescale Semiconductor
44

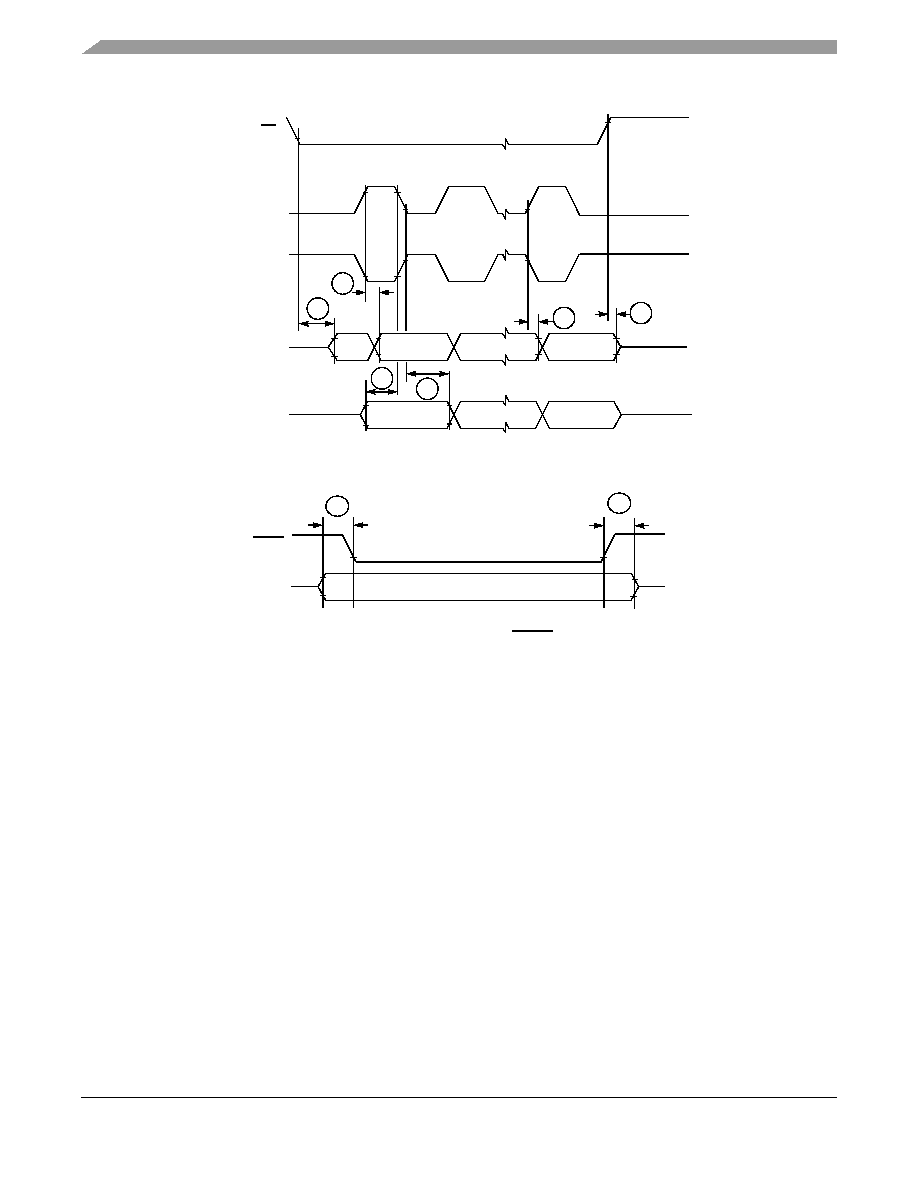

Figure 26. DSPI Modified Transfer Format Timing—Slave, CPHA =1
Figure 27. DSPI PCS Strobe (PCSS) Timing
5
6
9
12
11
10
Last data
Last data
SIN
SOUT
SS
First data
First data
Data
Data
SCK input
SCK input
(CPOL=0)
(CPOL=1)
PCSx
7
8
PCSS
