ADA4351-2ACPZ-R7 Folha de dados(PDF) 21 Page - Analog Devices

Nome de Peças ADA4351-2ACPZ-R7
Descrição Electrónicos  Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA)
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADA4351-2ACPZ-R7 Folha de dados(HTML) 21 Page - Analog Devices

Back Button ADA4351-2ACPZ-R7 Datasheet HTML 17Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 18Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 19Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 20Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 21Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 22Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 23Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 24Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 25Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 36 page
background image
Data Sheet
ADA4351-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 36

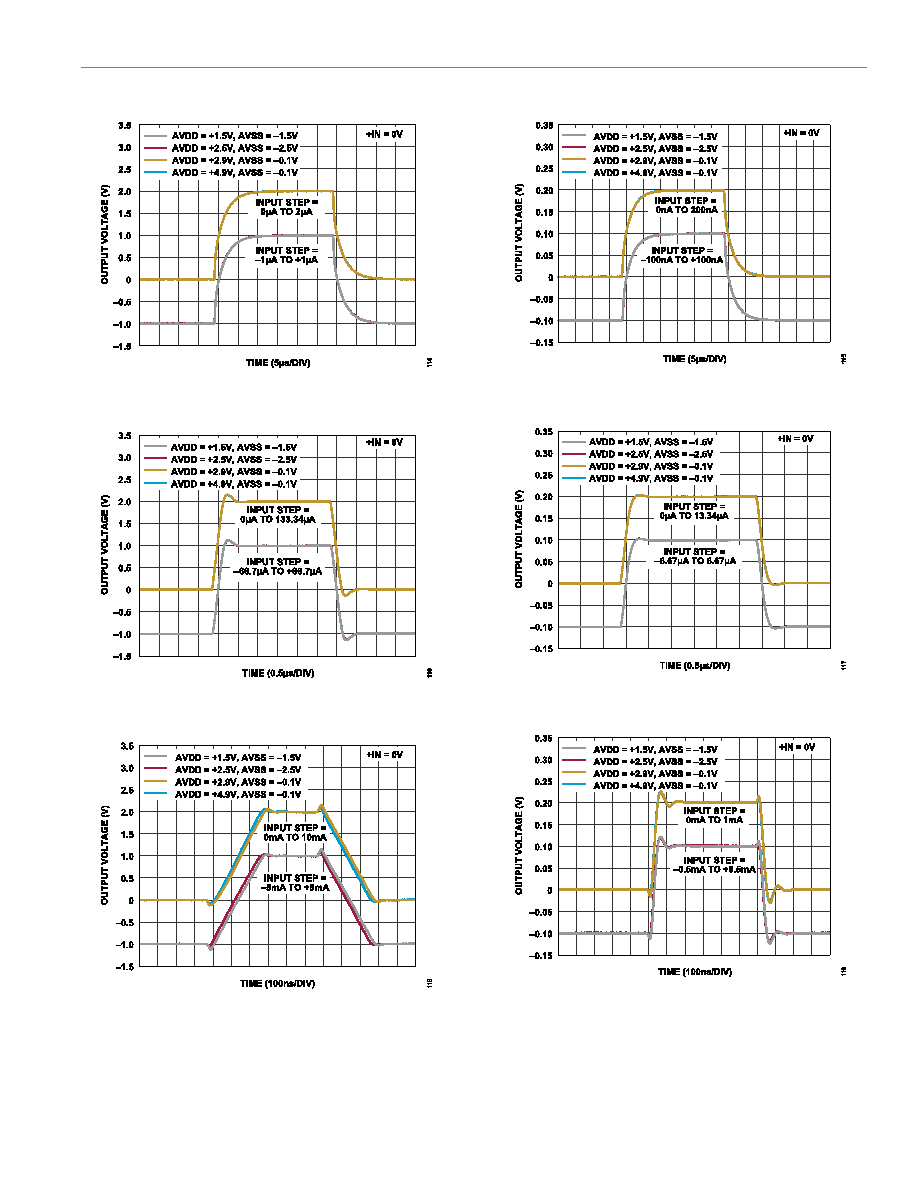

Figure 66. Large-Signal Step Response at Various Supplies, Input
Capacitance (CIN) = 10 pF, RF = 1 MΩ
Figure 67. Large-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 15 kΩ, External Feedback Capacitance (CF,EXT) = 5.6 pF
Figure 68. Large-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 200 Ω
Figure 69. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 1 MΩ
Figure 70. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 15 kΩ, CF,EXT = 5.6 pF
Figure 71. Small-Signal Step Response at Various Supplies, CIN = 10 pF,
RF = 200 Ω
