OUTLINE DIMENSIONS

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

0.310 (7.87)

0.220 (5.59)

0.005 (0.13)

MIN

0.055 (1.40)

MAX

0.100 (2.54) BSC

15°

0°

0.320 (8.13)

0.290 (7.37)

0.015 (0.38)

0.008 (0.20)

SEATING

PLANE

0.200 (5.08)

MAX

0.405 (10.29) MAX

0.150 (3.81)

MIN

0.200 (5.08)

0.125 (3.18)

0.023 (0.58)

0.014 (0.36)

0.070 (1.78)

0.030 (0.76)

0.060 (1.52)

0.015 (0.38)

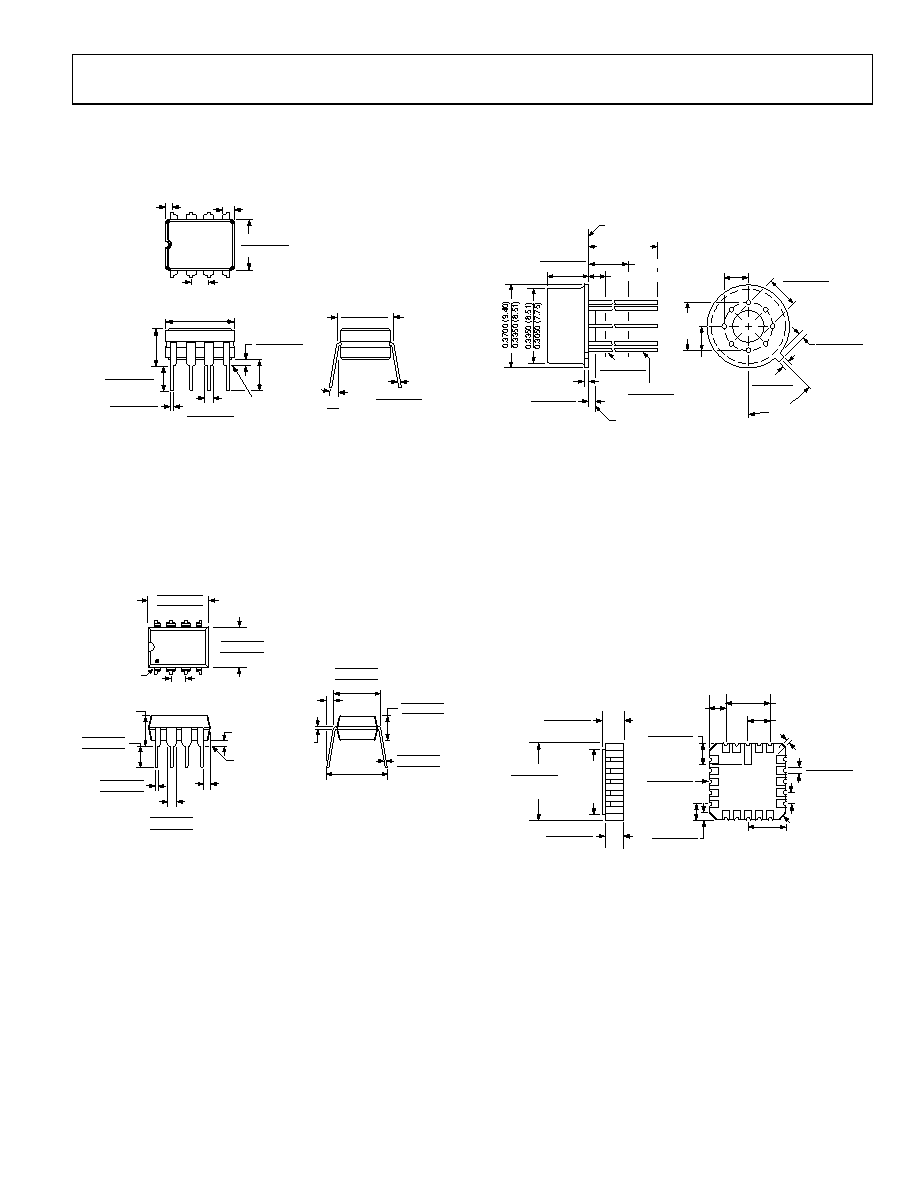

Figure 27. 8-Lead Ceramic Dual In-Line Package [CERDIP]

Z-Suffix

(Q-8)

Dimensions shown in inches and (millimeters)

COMPLIANT TO JEDEC STANDARDS MS-001-BA

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

SEATING

PLANE

0.015

(0.38)

MIN

0.210

(5.33)

MAX

PIN 1

0.150 (3.81)

0.130 (3.30)

0.115 (2.92)

0.070 (1.78)

0.060 (1.52)

0.045 (1.14)

0.280 (7.11)

0.250 (6.35)

0.240 (6.10)

0.100 (2.54)

BSC

0.400 (10.16)

0.365 (9.27)

0.355 (9.02)

0.060 (1.52)

MAX

0.430 (10.92)

MAX

0.014 (0.36)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.195 (4.95)

0.130 (3.30)

0.115 (2.92)

0.015 (0.38)

GAUGE

PLANE

0.005 (0.13)

MIN

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS.

Figure 28. 8-Lead Plastic Dual In-Line Package [PDIP]

Narrow Body

P-Suffix

(N-8)

Dimensions shown in inches and (millimeters)

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MO-002-AK

0.2500 (6.35) MIN

0.5000 (12.70)

MIN

0.1850 (4.70)

0.1650 (4.19)

REFERENCE PLANE

0.0500 (1.27) MAX

0.0190 (0.48)

0.0160 (0.41)

0.0210 (0.53)

0.0160 (0.41)

0.0400 (1.02)

0.0100 (0.25)

0.0400 (1.02) MAX

0.0340 (0.86)

0.0280 (0.71)

0.0450 (1.14)

0.0270 (0.69)

0.1600 (4.06)

0.1400 (3.56)

0.1000 (2.54)

BSC

0.2000

(5.08)

BSC

0.1000

(2.54)

BSC

45° BSC

BASE & SEATING PLANE

Figure 29. 8-Lead Metal Header Package [TO-99]

J-Suffix

(H-08)

Dimensions shown in inches and (millimeters)

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

BOTTOM

VIEW

0.028 (0.71)

0.022 (0.56)

45° TYP

0.015 (0.38)

MIN

0.055 (1.40)

0.045 (1.14)

0.050 (1.27)

BSC

0.075 (1.91)

REF

0.011 (0.28)

0.007 (0.18)

R TYP

0.095 (2.41)

0.075 (1.90)

0.100 (2.54) REF

0.200 (5.08)

REF

0.150 (3.81)

BSC

0.075 (1.91)

REF

0.358 (9.09)

0.342 (8.69)

0.358

(9.09)

MAX

0.100 (2.54)

0.064 (1.63)

0.088 (2.24)

0.054 (1.37)

Figure 30. 20-Terminal Ceramic Leadless Chip Carrier [LCC]

RC-Suffix

(E-20A)

Dimensions shown in inches and (millimeters)
