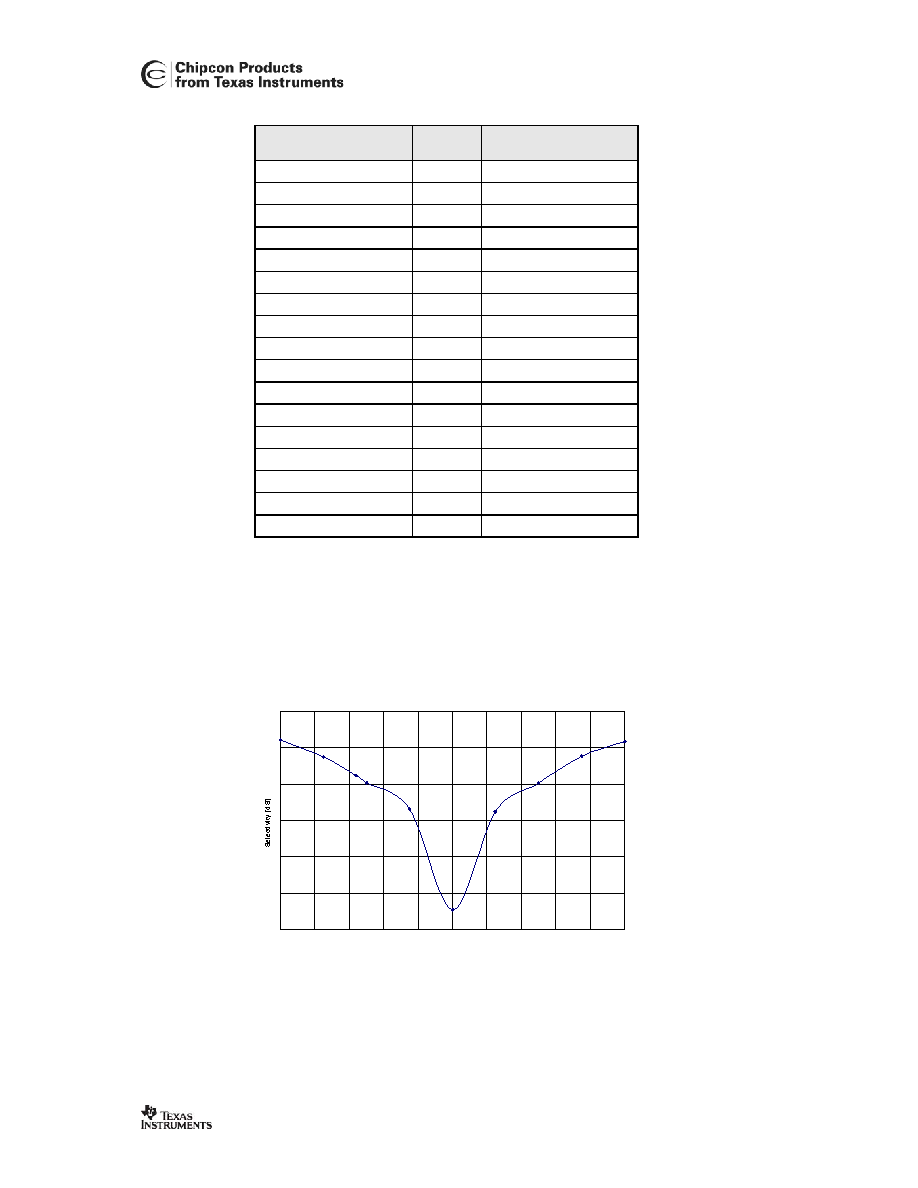

CC2500
PRELIMINARY Data Sheet (Rev.1.2)
SWRS040A
Page 43 of 83
Output power,
typical, +25°C, 3.0 V [dBm]
PATABLE
value
Current consumption,
typical [mA]
(–55 or less)
0x00
8.4
–30
0x50
9.9
–28
0x44
9.7
–26
0xC0
10.2
–24
0x84
10.1
–22
0x81
10.0
–20
0x46
10.1
–18
0x93
11.7
–16
0x55
10.8
–14
0x8D
12.2
–12
0xC6
11.1
–10
0x97
12.2
–8
0x6E
14.1
–6
0x7F
15.1
–4
0xA9
16.2
–2
0xBB
17.7
0
0xFE
21.2
Table 31: Optimum PATABLE settings for various output power levels
25 Selectivity
Figure 22 to Figure 26 show the typical selectivity performance (adjacent and alternate rejection).
-10
0
10
20
30
40
50
-1
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
Fre que ncy offse t [MHz]
Figure 22: Typical selectivity at 2.4 kbps. IF frequency is 273.9 kHz.
MDMCFG2.DEM_DCFILT_OFF
= 1
